TELE AID System PE82.95-U-2101SF (Part 2)
TELE AID System PE82.95-U-2101SF (Part 2)
- with CODE (348) EMERGENCY CALL system
- control module A35/8

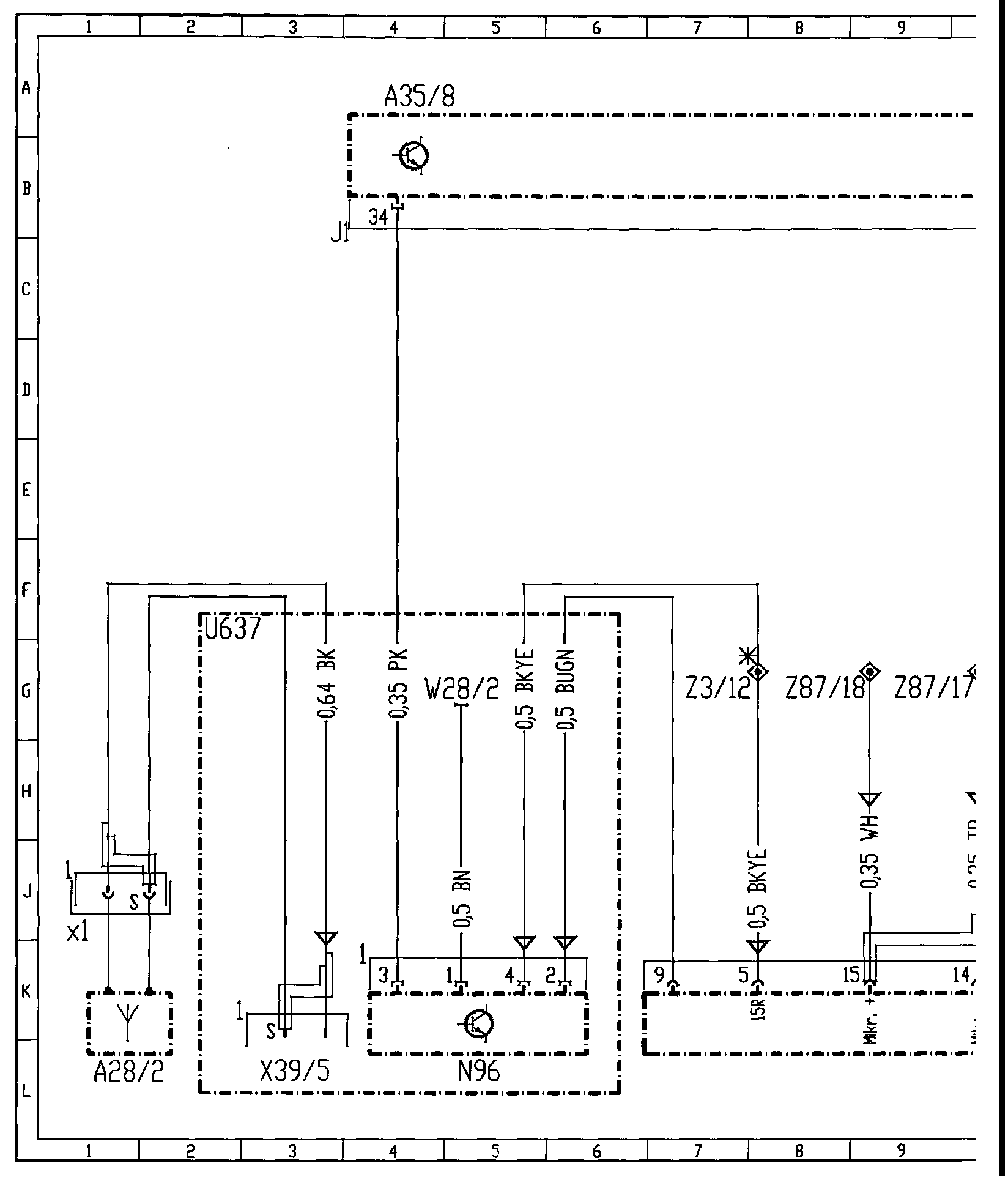

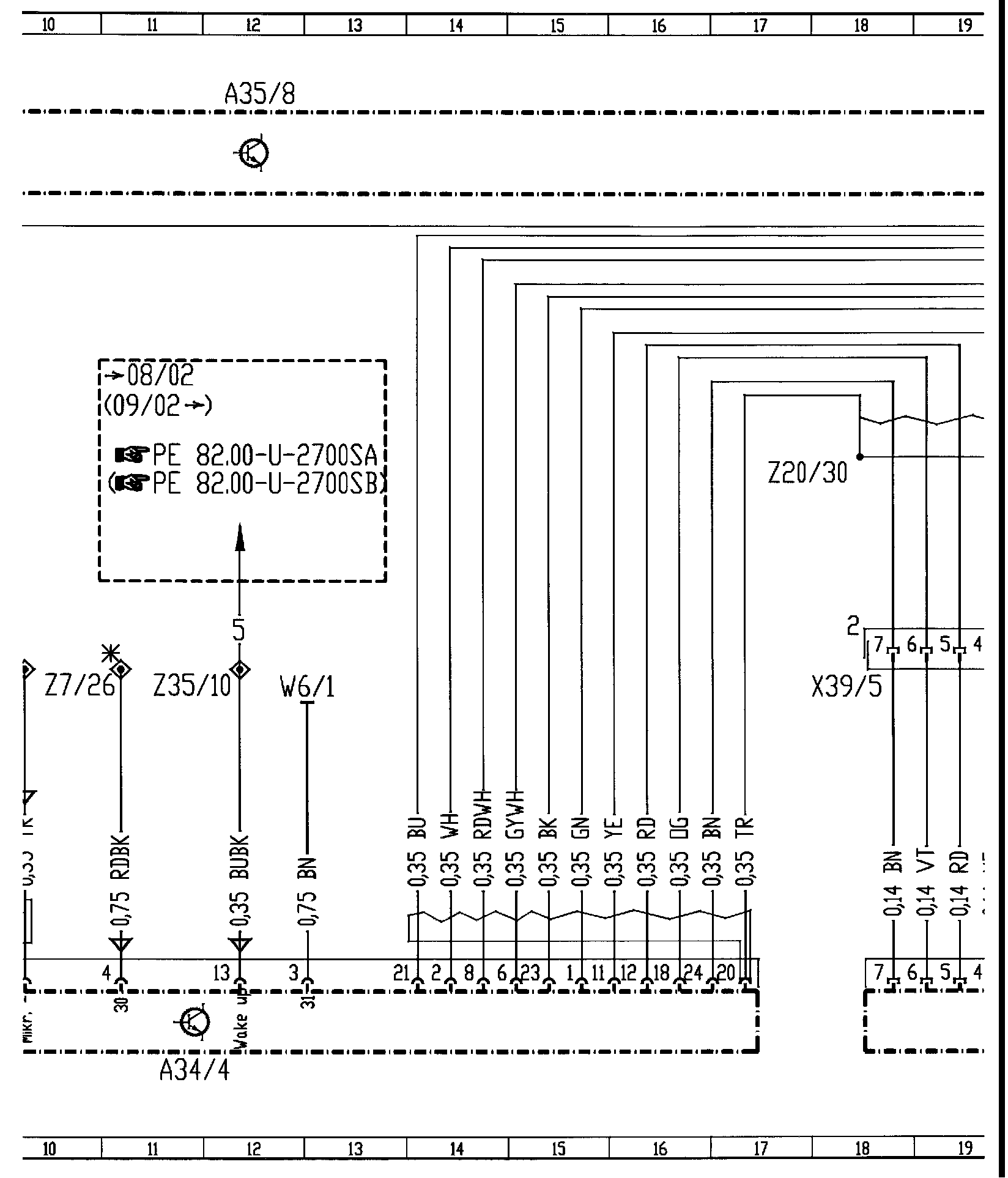

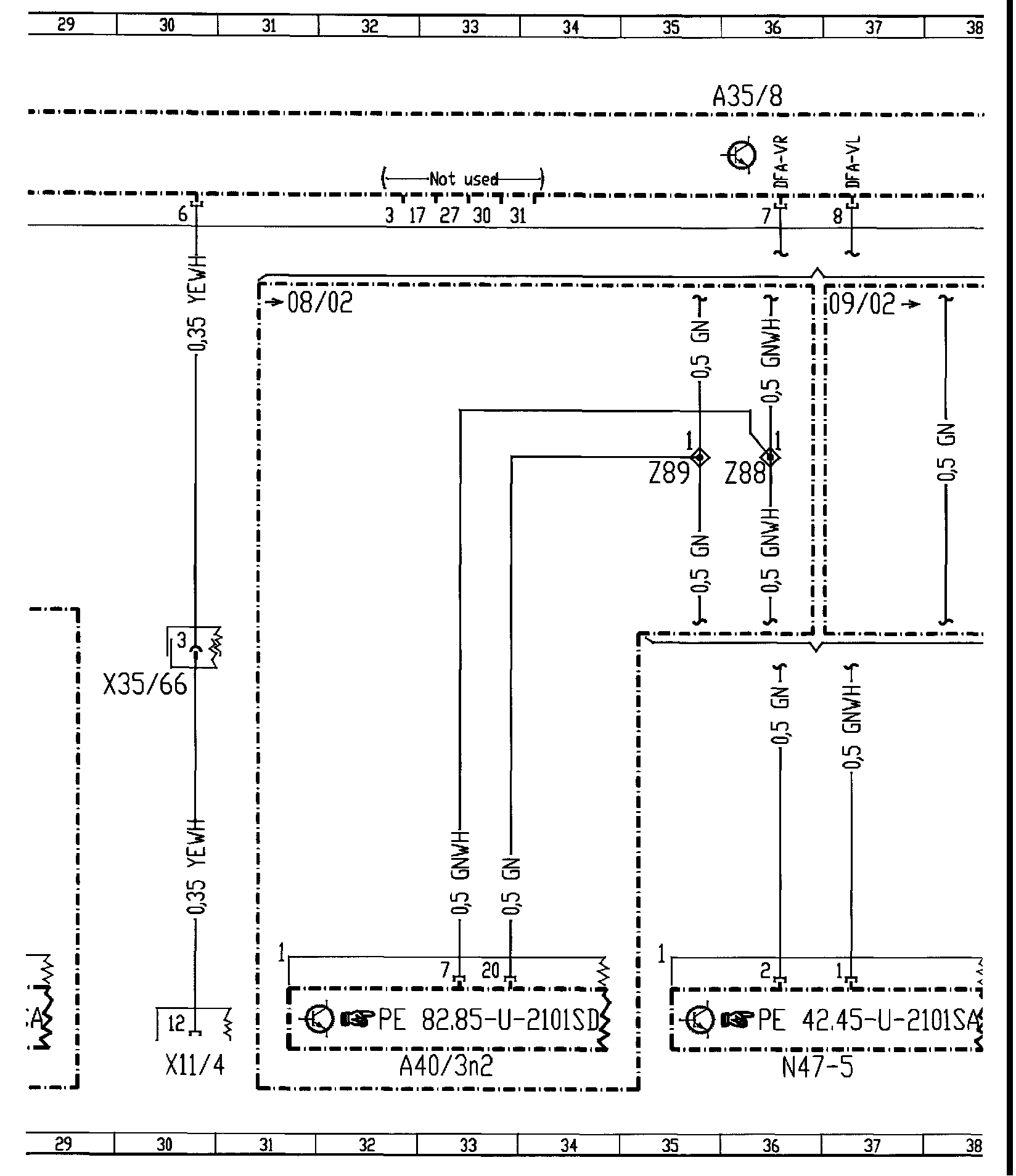

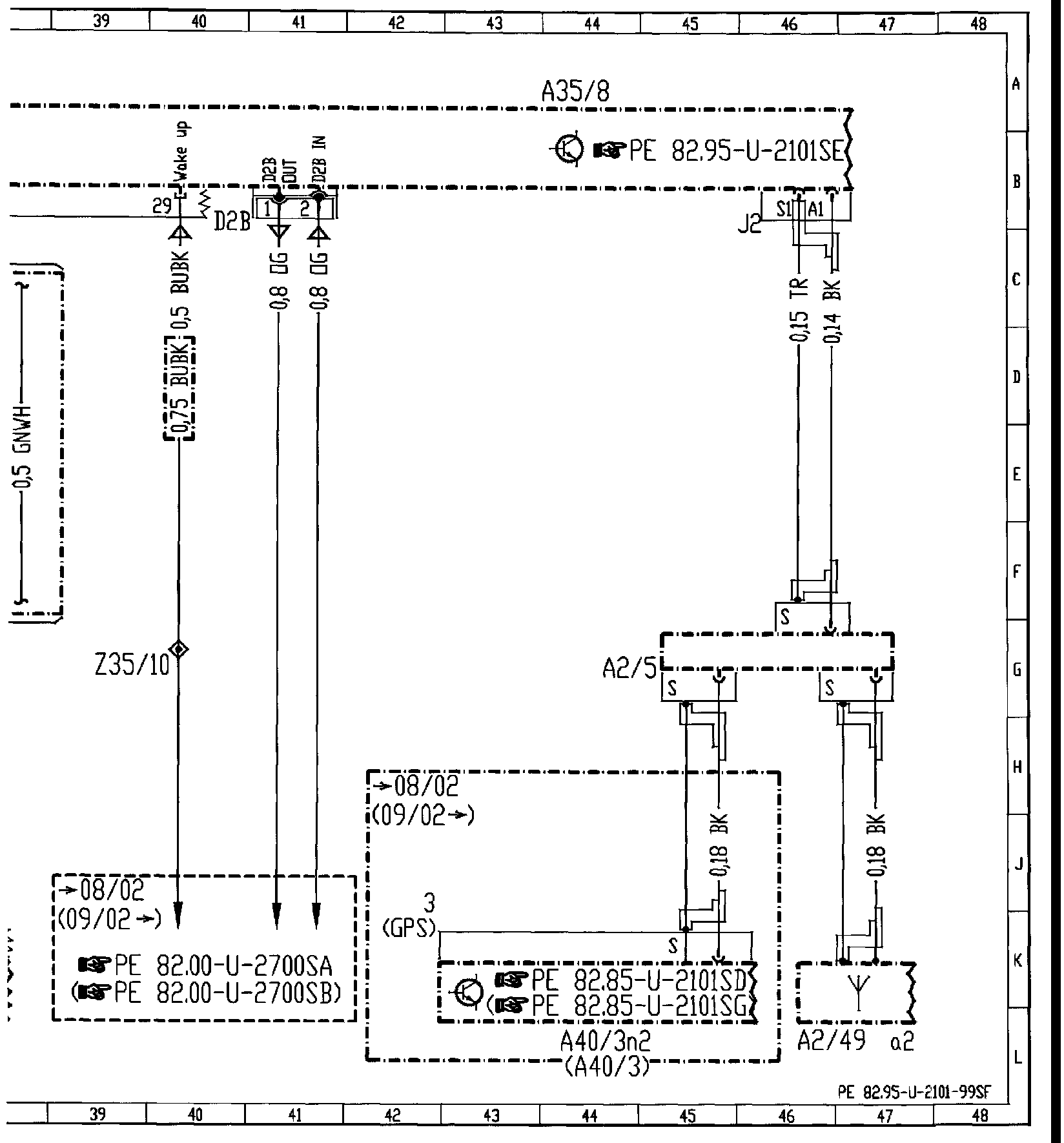

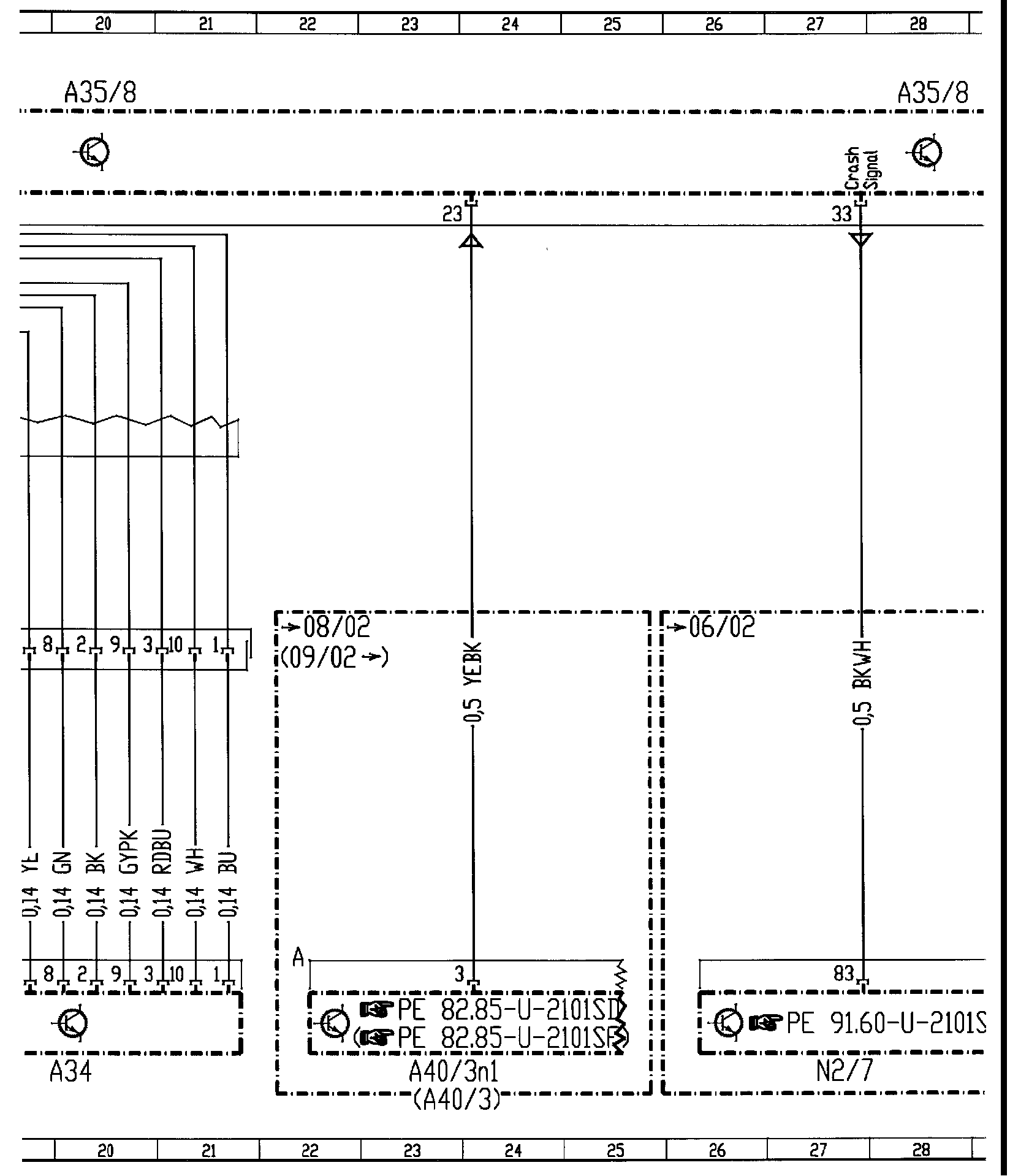

Emergency Call System (ECS) Control Module:
Emergency Call System (ECS) Control Module:
Emergency Call System (ECS) Control Module:
Emergency Call System (ECS) Control Module:
Emergency Call System (ECS) Control Module:

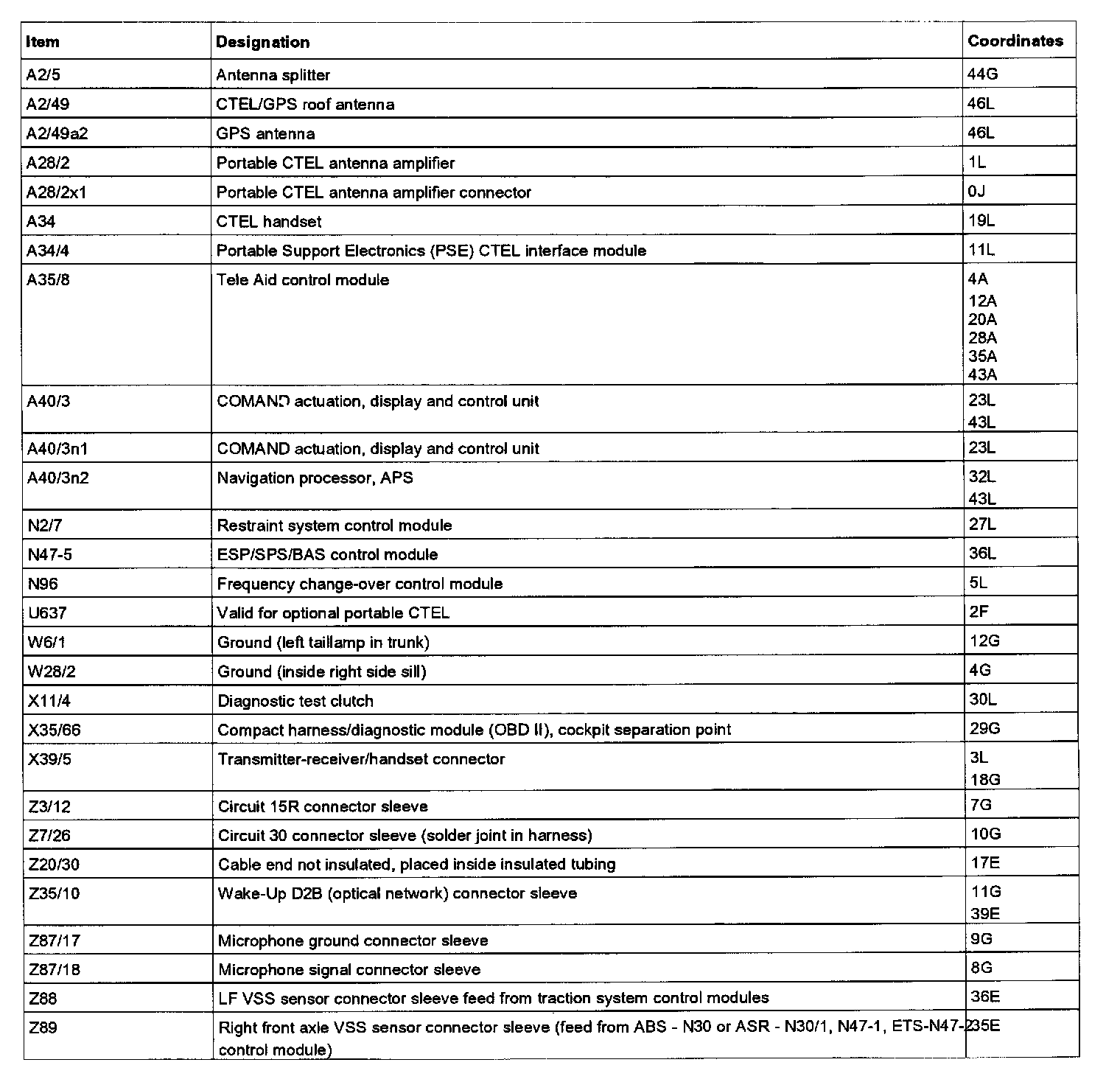

Legend For Emergency Call System (ECS) Control Module:
Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
