B1.6 Trunk (Right)

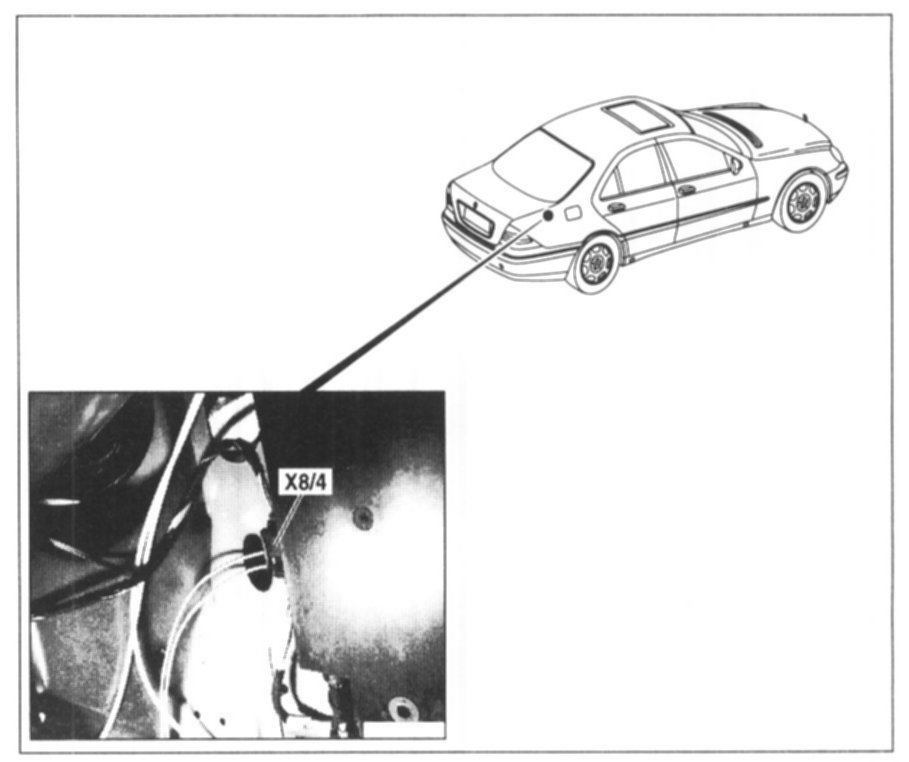

Arrangement and assignment of the wiring and plug connectors trunk (right)

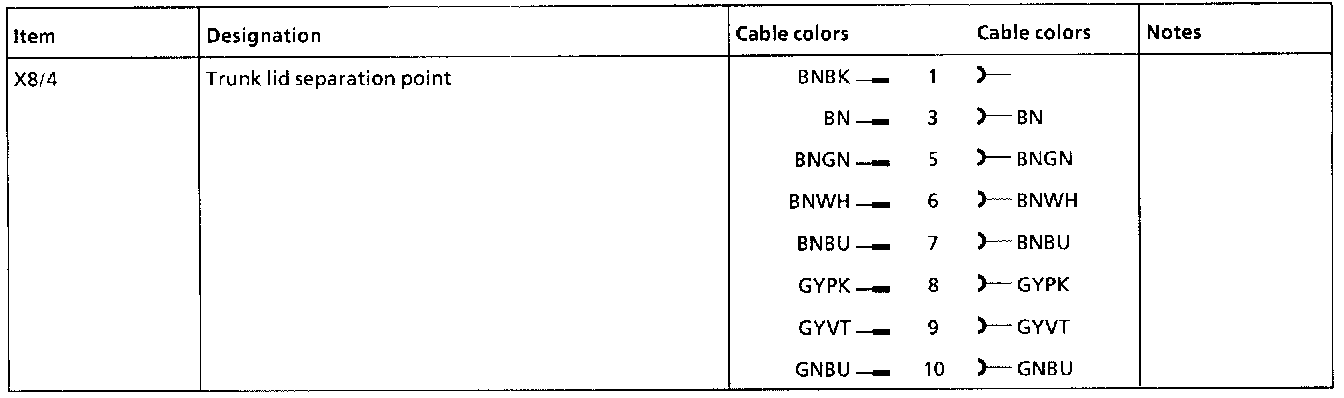

Connector ID
