B1.2 Engine Compartment (Right)

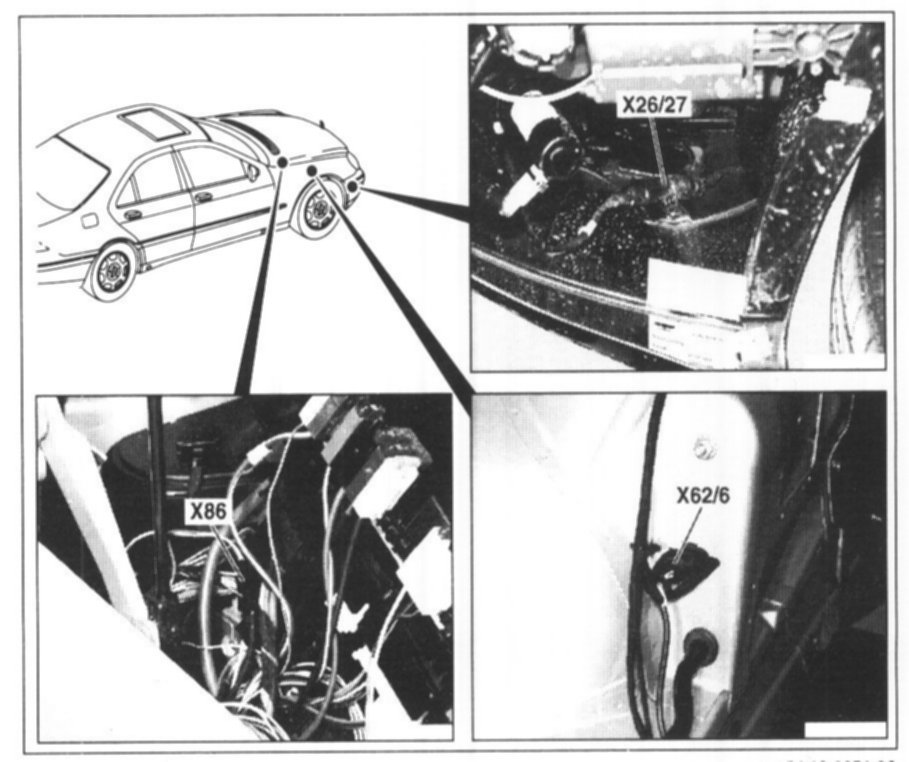

Arrangement and assignment of the wiring and plug connectors engine compartment (right)

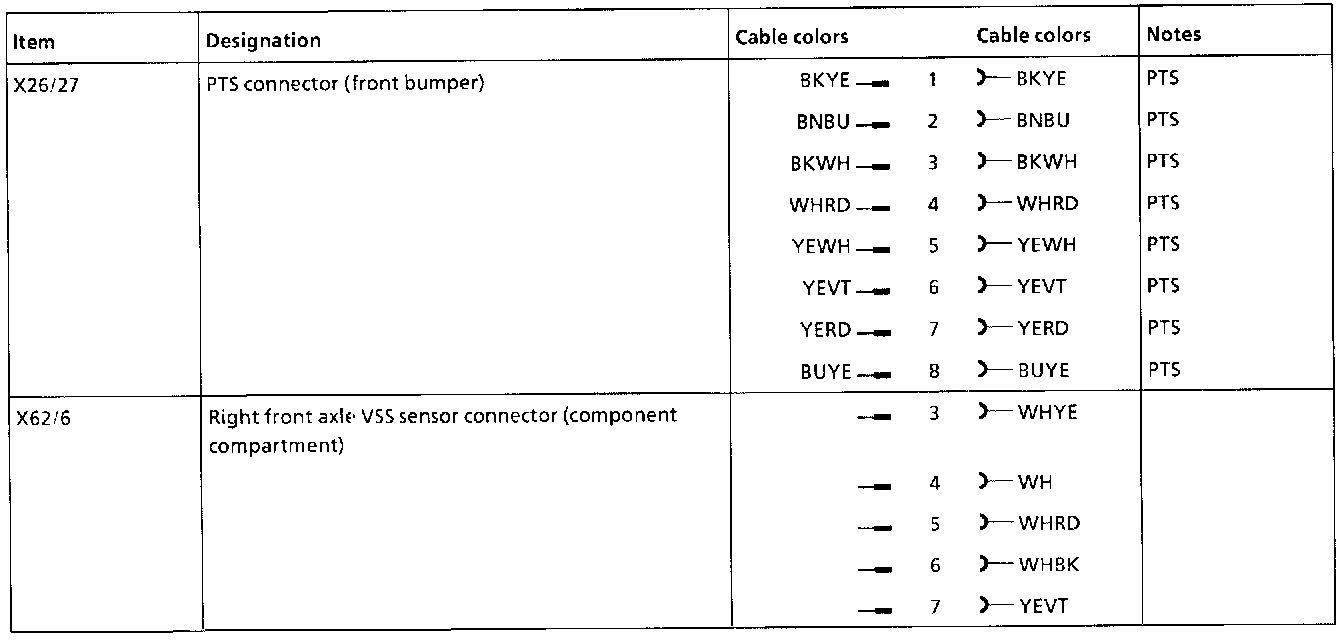

Connector ID
