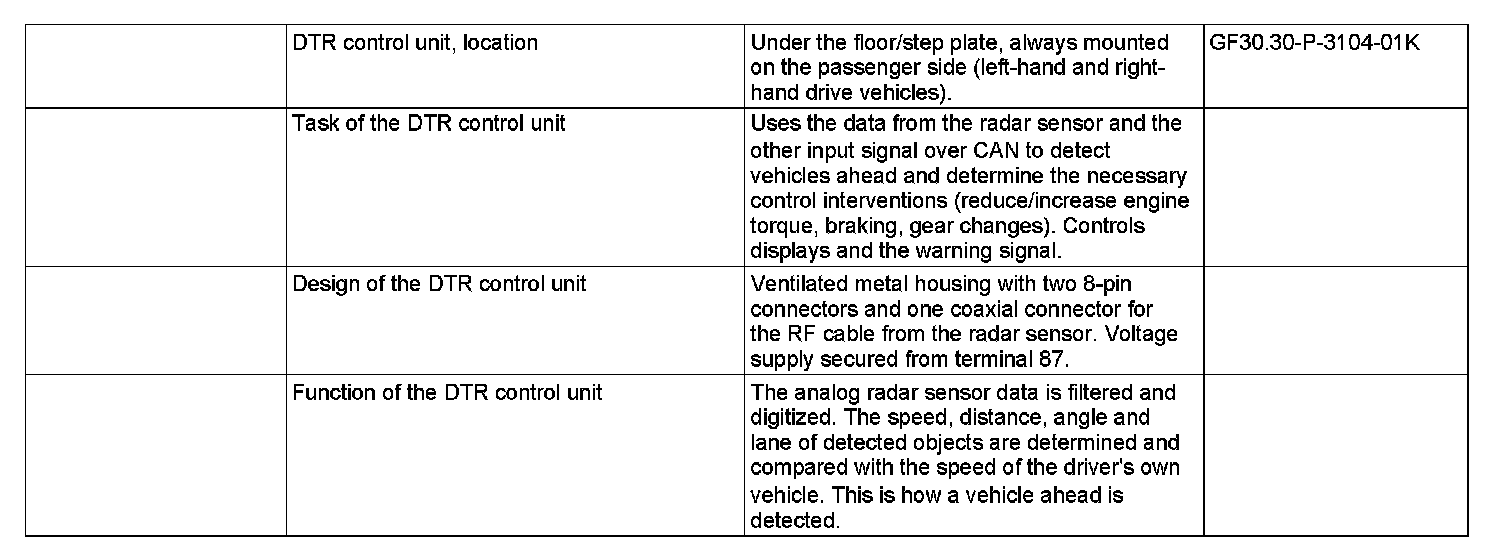

GF30.30-P-3104K DTR Control Unit, Location/Task/Design/Function



GF30.30-P-3104K DTR Control Unit, Location/Task/Design/Function
- with CODE (219) Distronic (DTR)

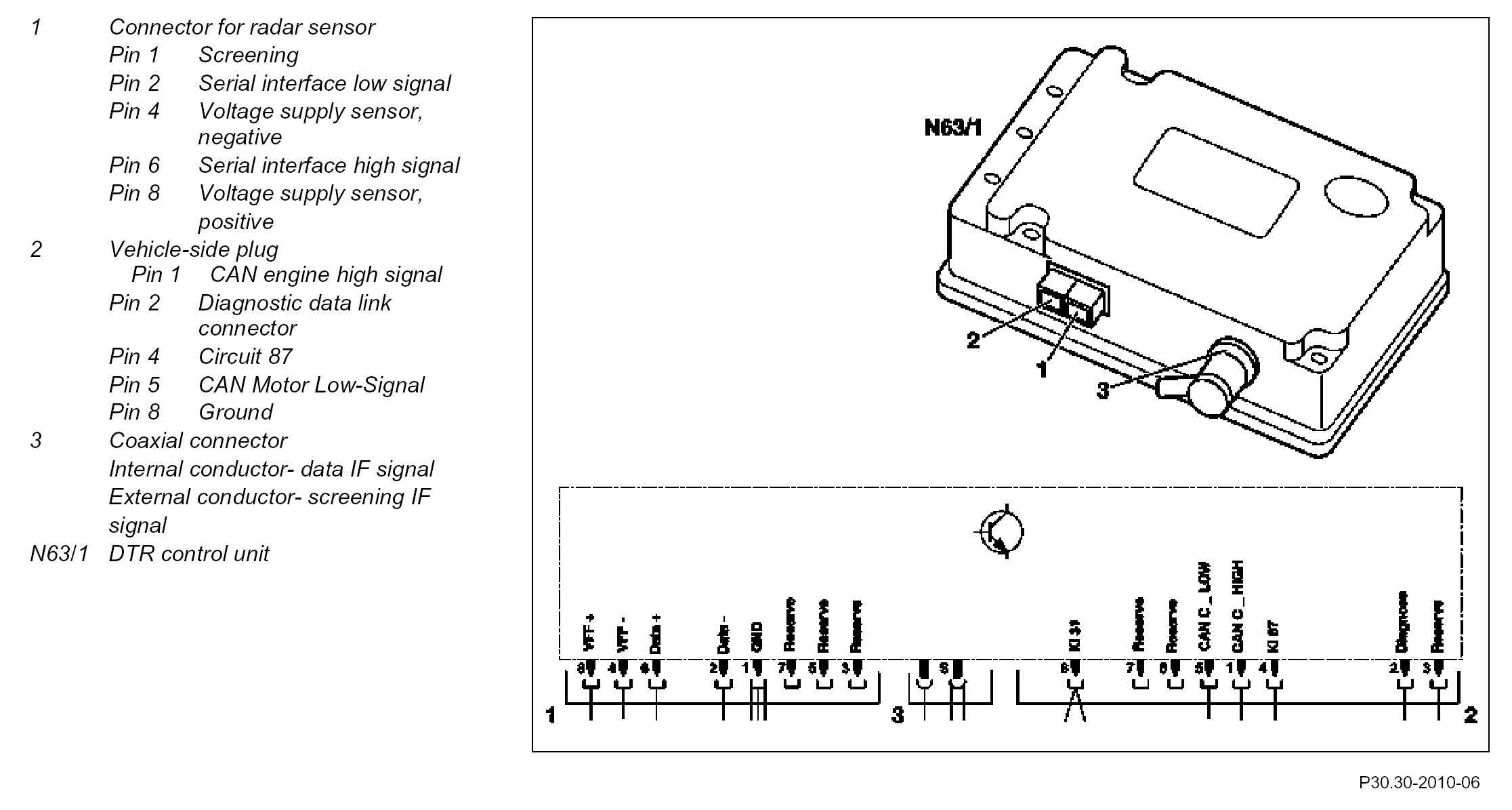

Component Identification:
