Hydraulic Brake Booster Pump: Service and Repair

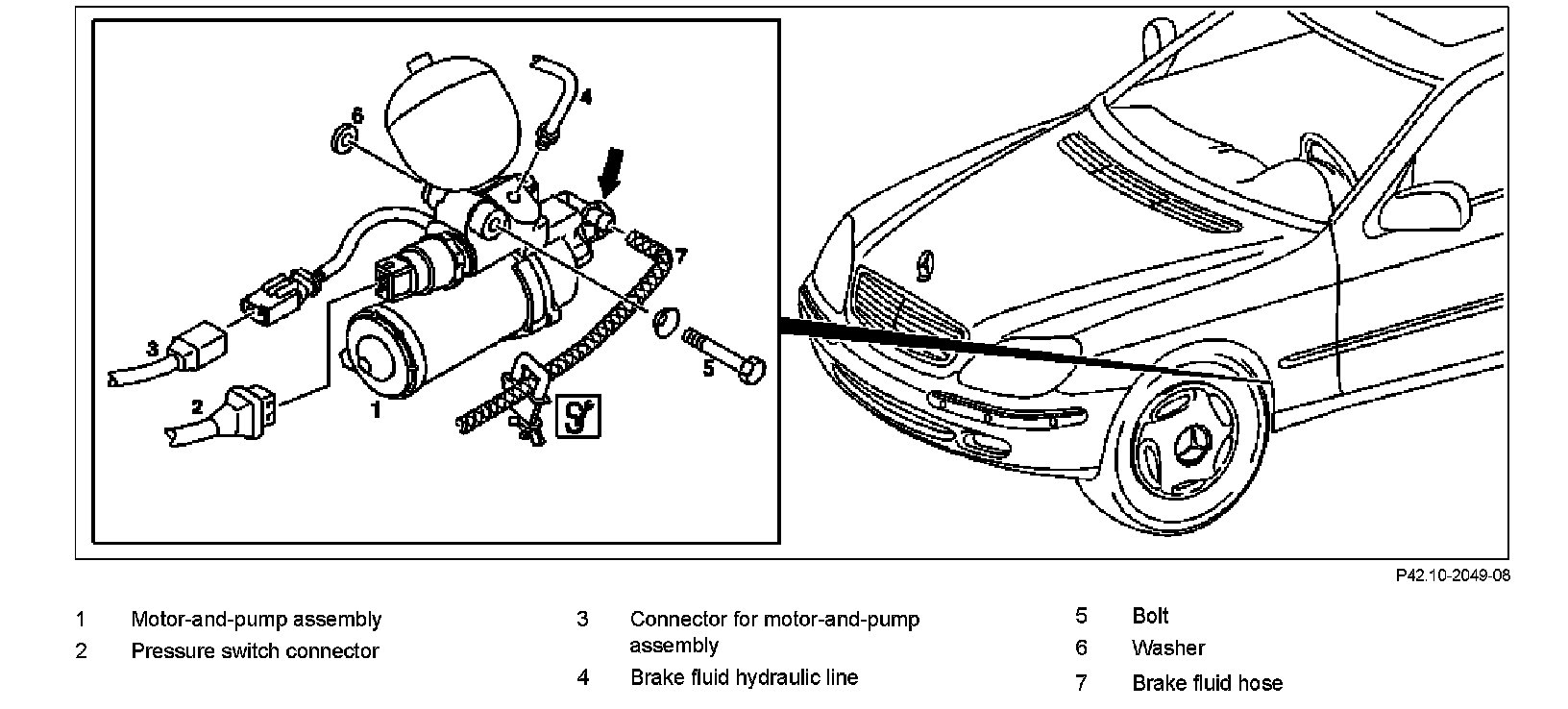

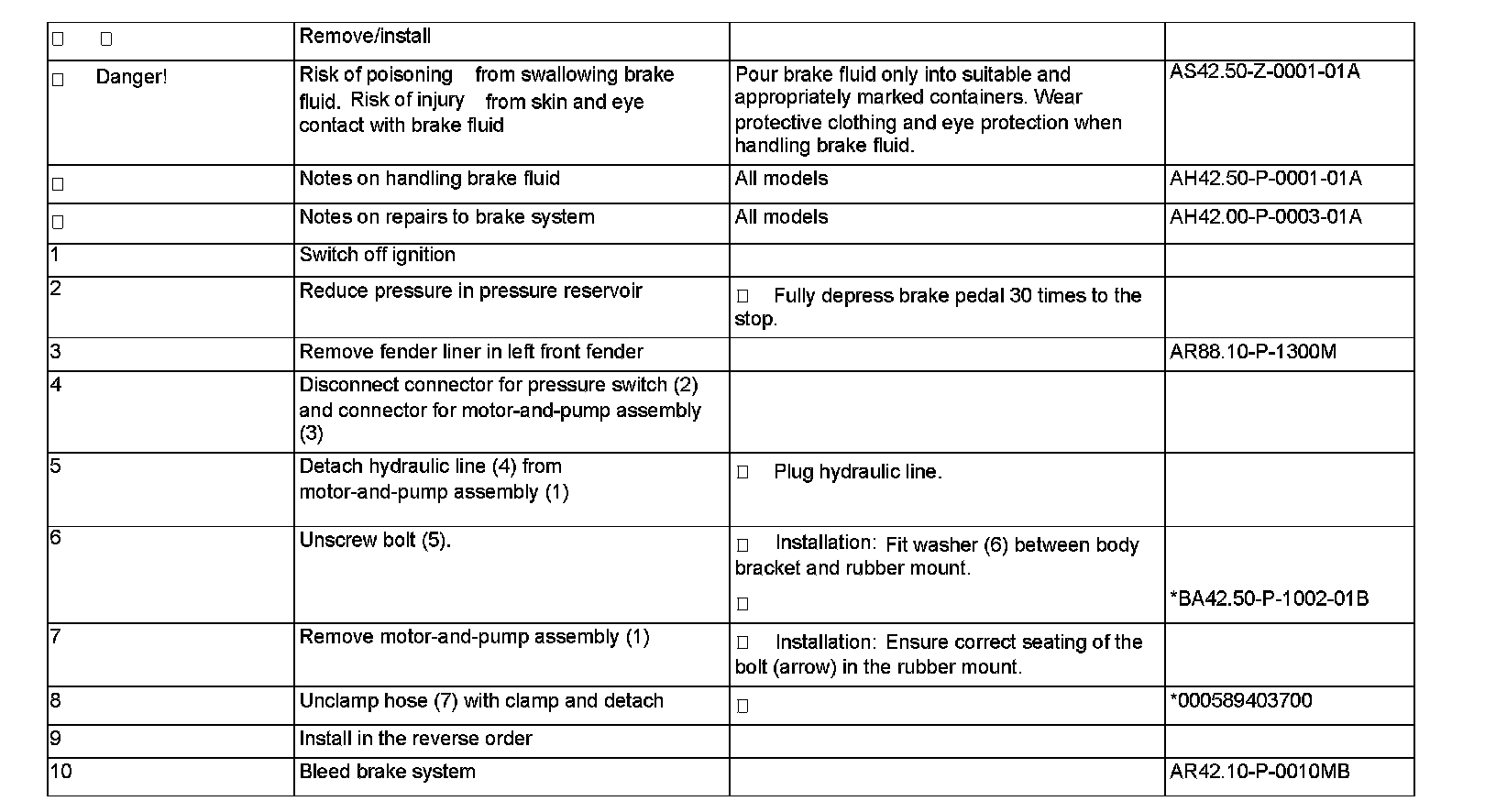

Remove, install motor-and-pump assembly
- With CODE (Z07) Maximum Protection
