AP42.10-P-4210M Brake System - Inspect Fluid Level



AP42.10-P-4210M Brake system - inspect fluid level
- with CODE (Z07) Top protection

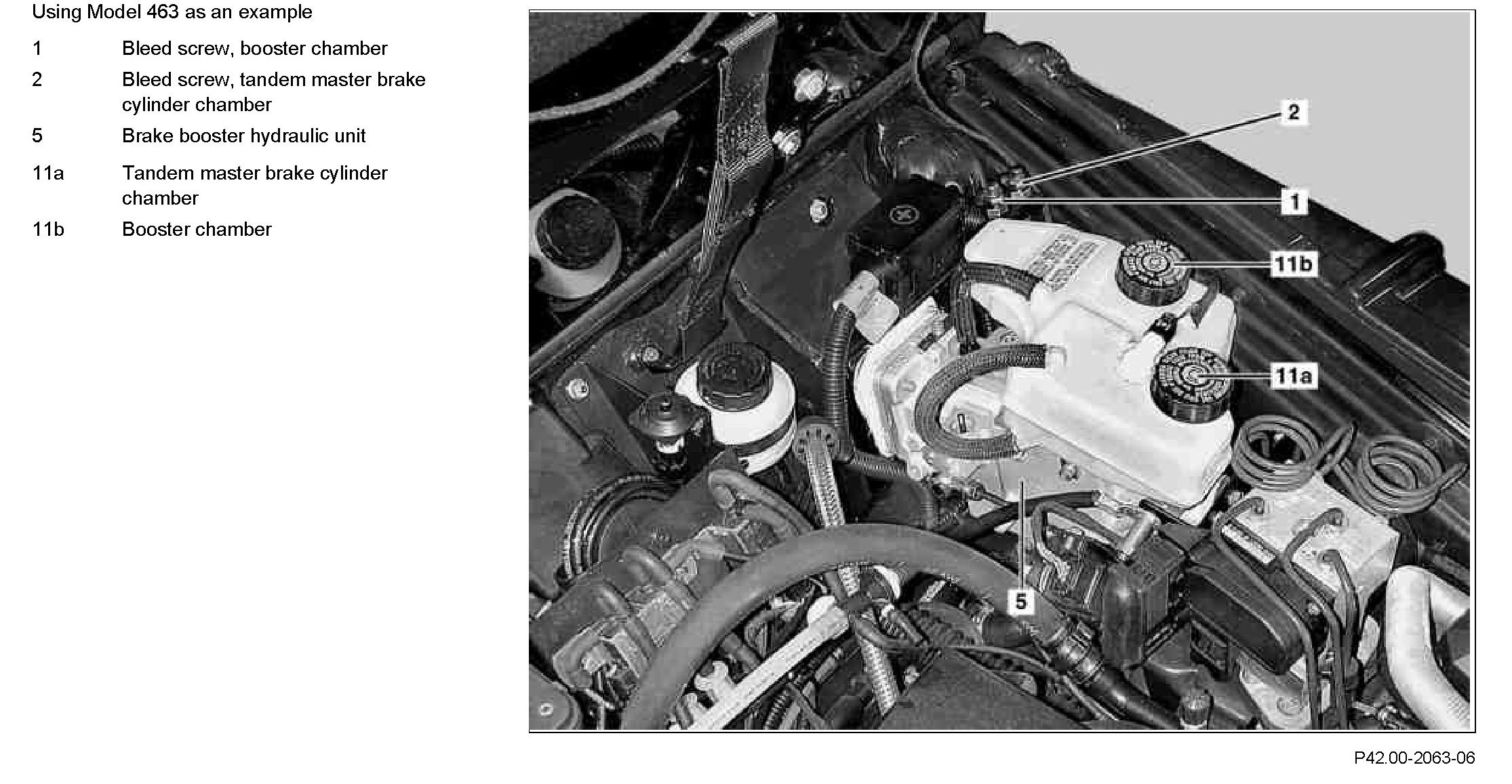

Component Identification:

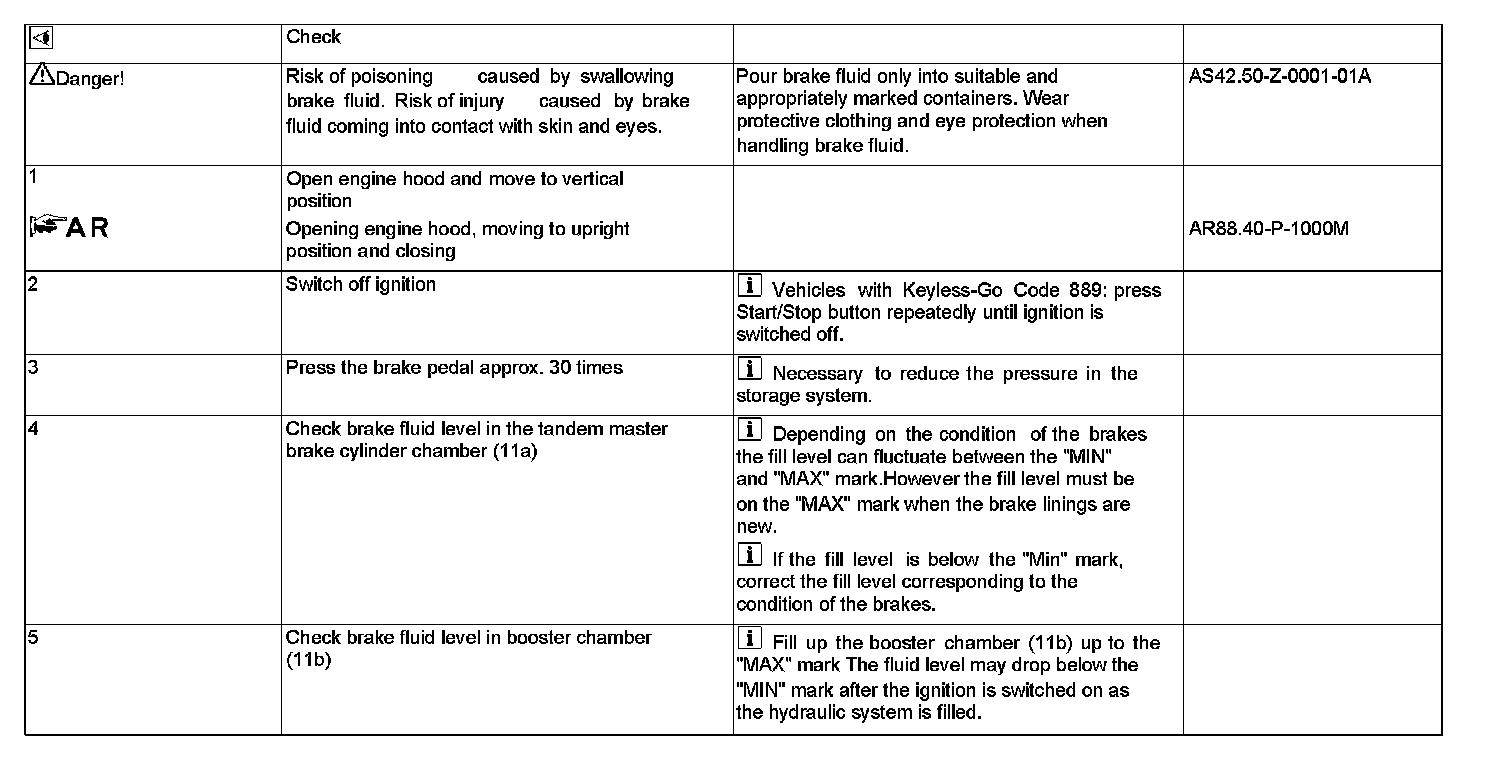

Steps 1-5:
