Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Brakes and Traction Control >> Hydraulic System >> Brake Caliper >> Service and Repair >> Removal and Replacement >> AR42.10-P-0080I Remove/Install Rear Axle Brake Caliper

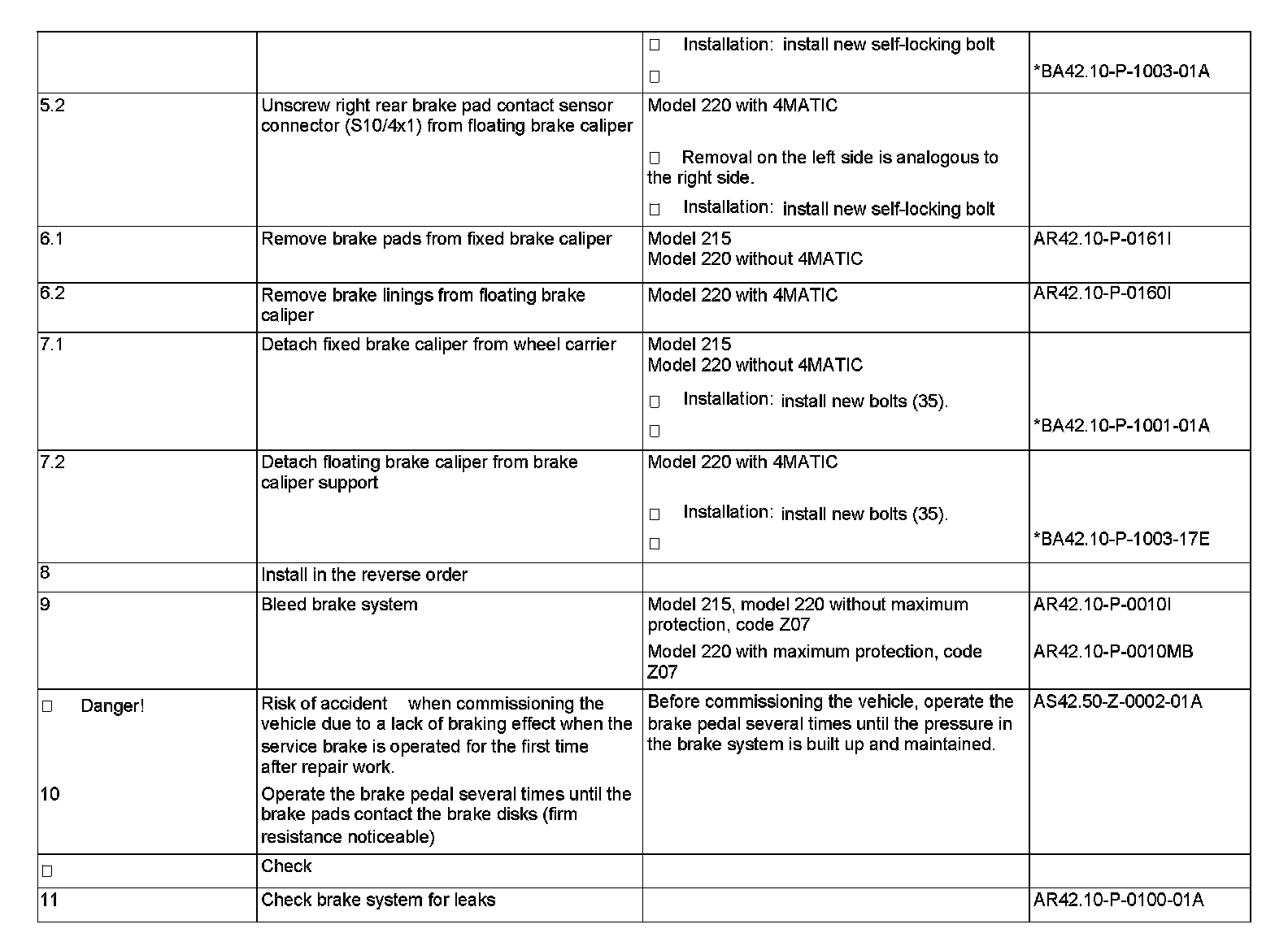

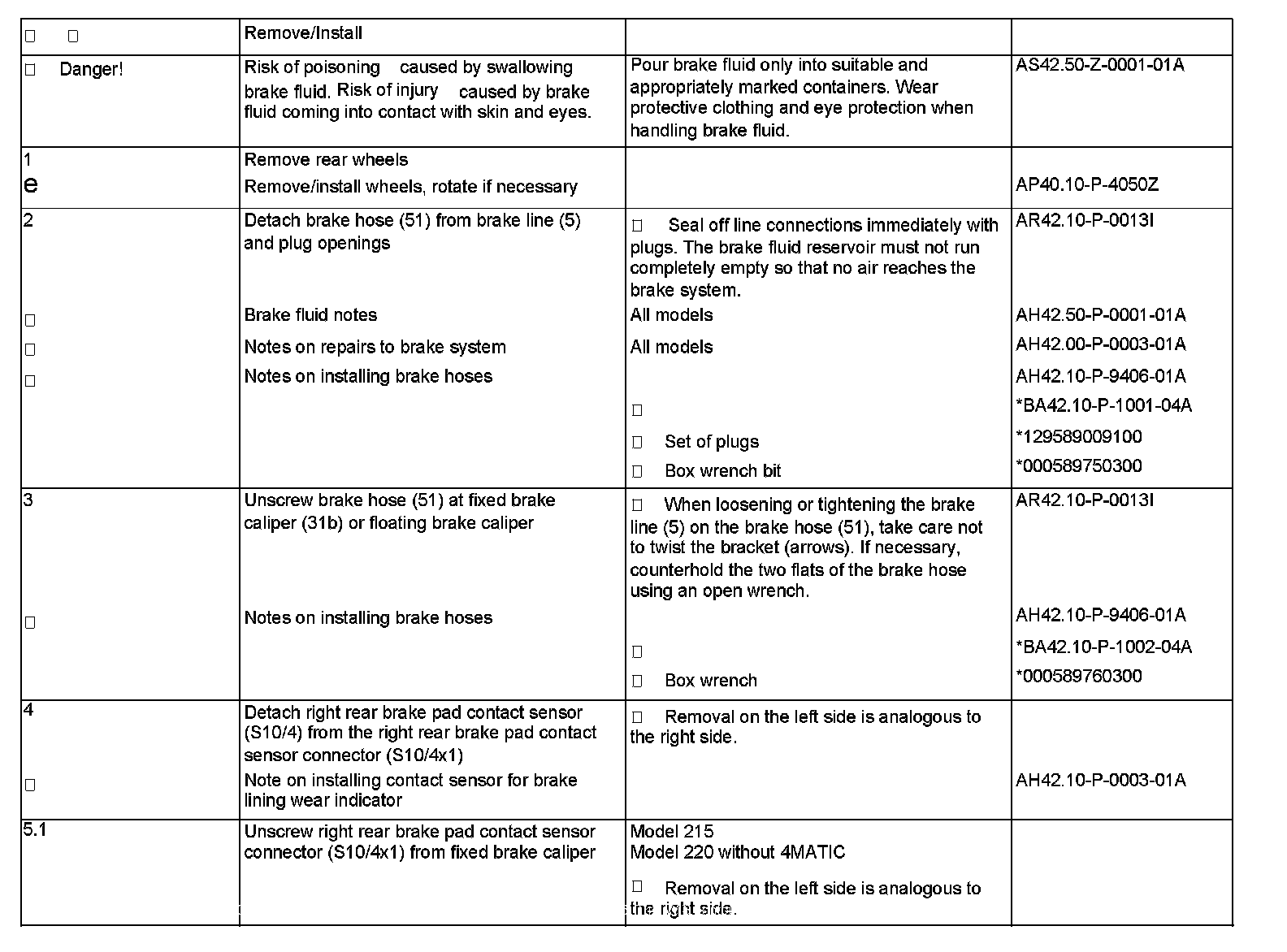

AR42.10-P-0080I Remove/Install Rear Axle Brake Caliper




Remove/install rear axle brake caliper
