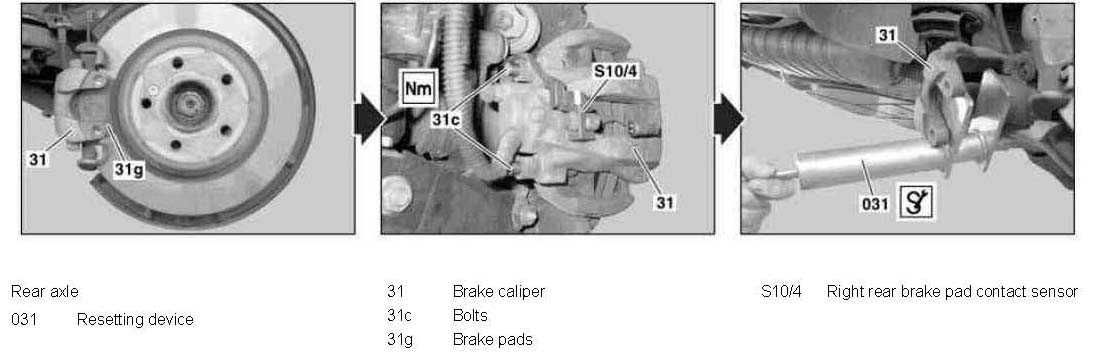

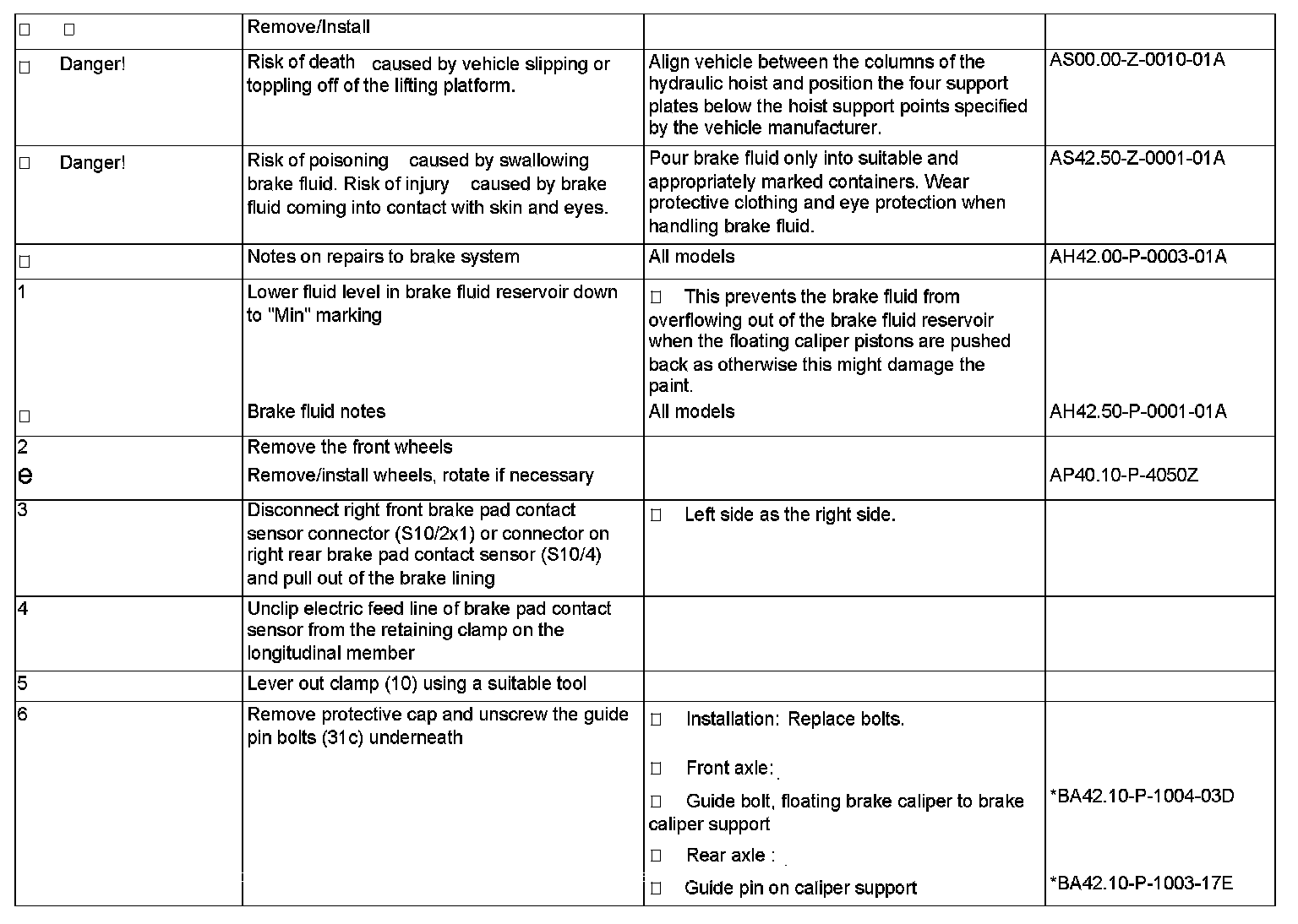

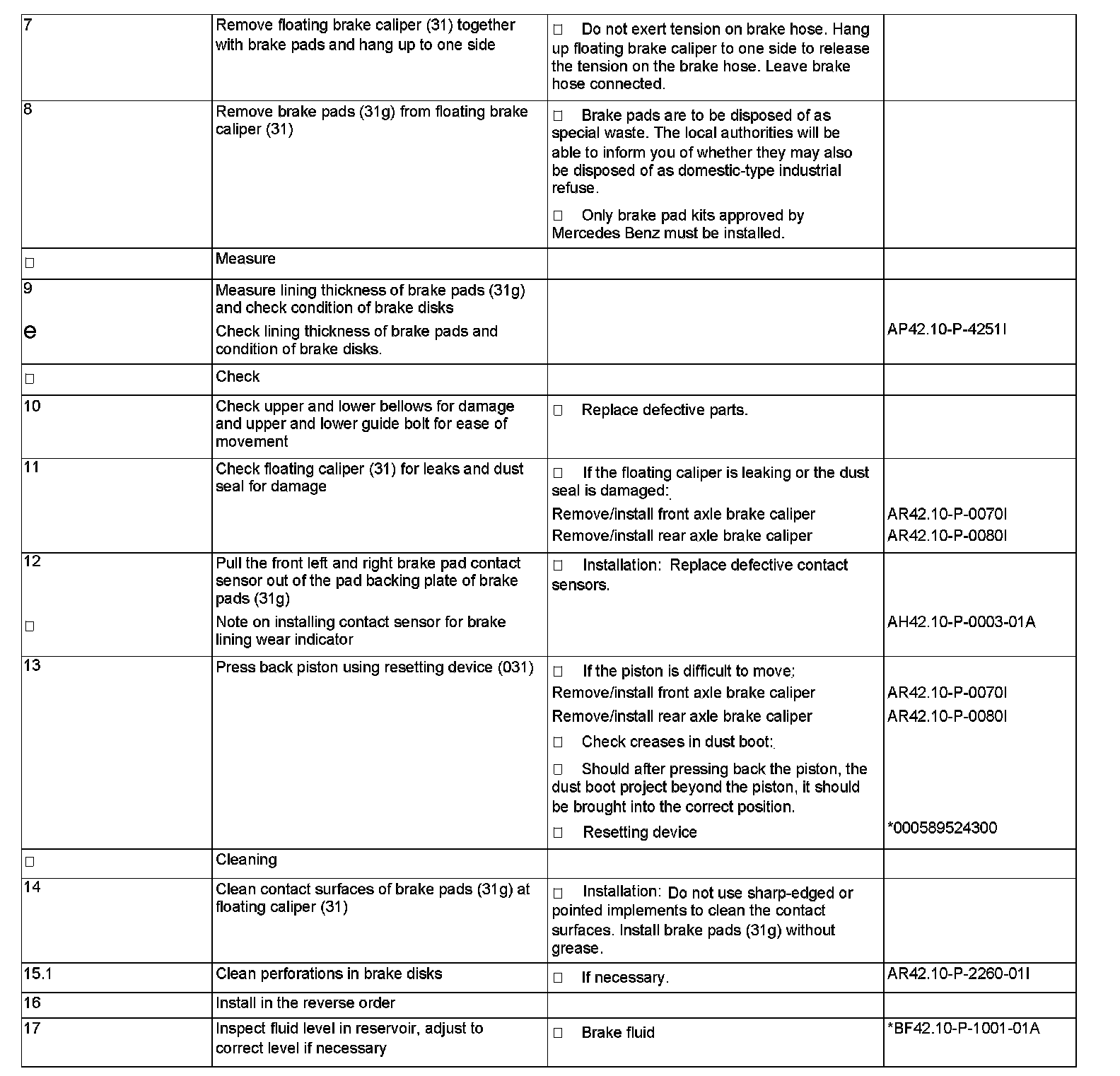

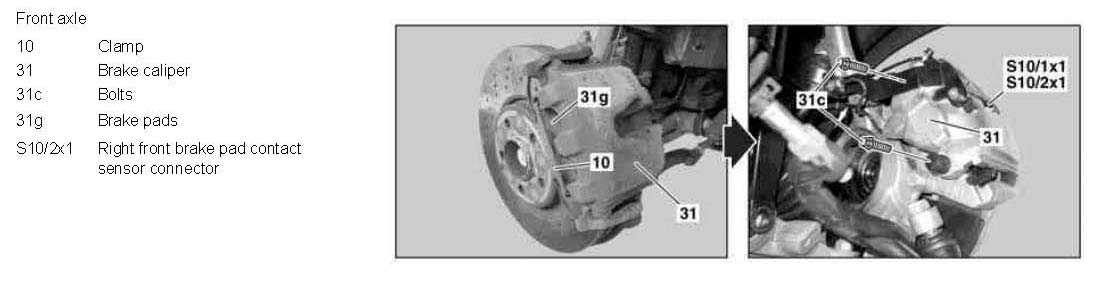

AR42.10-P-0160I Remove/Install Brake Pad on Floating Brake Caliper
AR42.10-P-0160I Remove/Install Brake Pad on Floating Brake Caliper
Remove/install
brake pad
on floating
brake caliper
