AR91.10-P-1000M Remove/Install Front Seats

AR91.10-P-1000M Remove/Install Front Seats

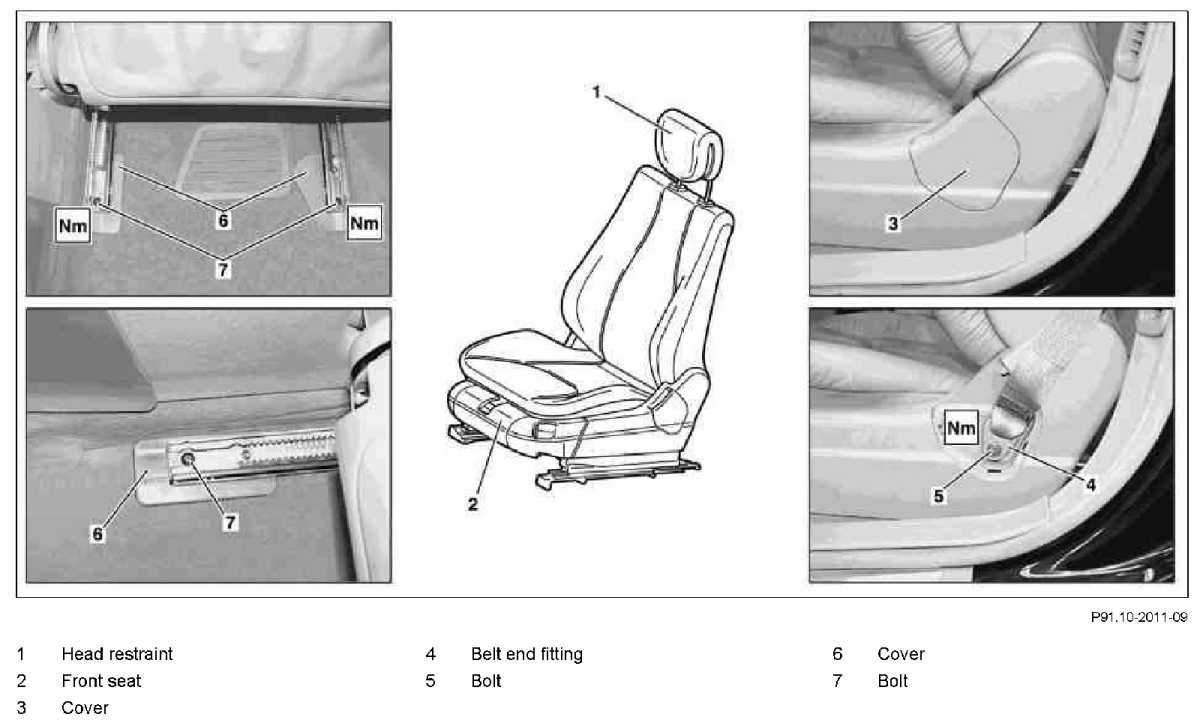

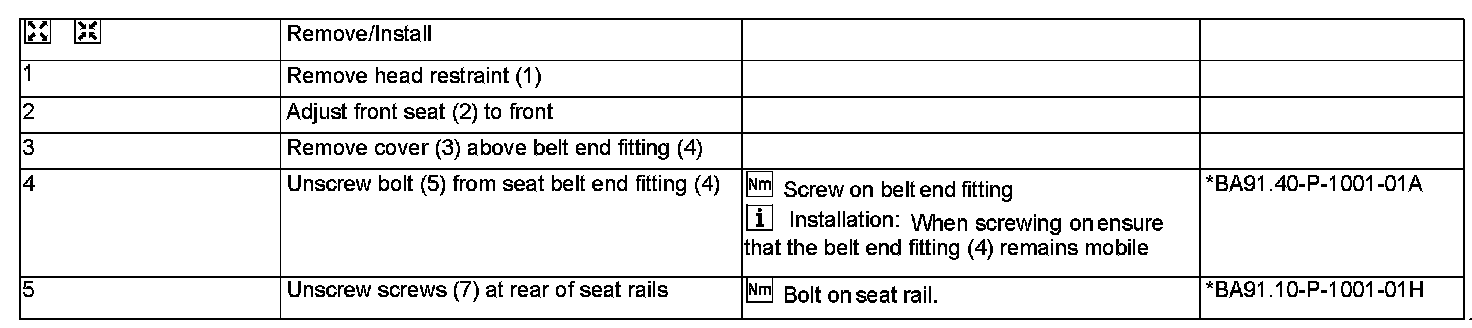

Part 1:

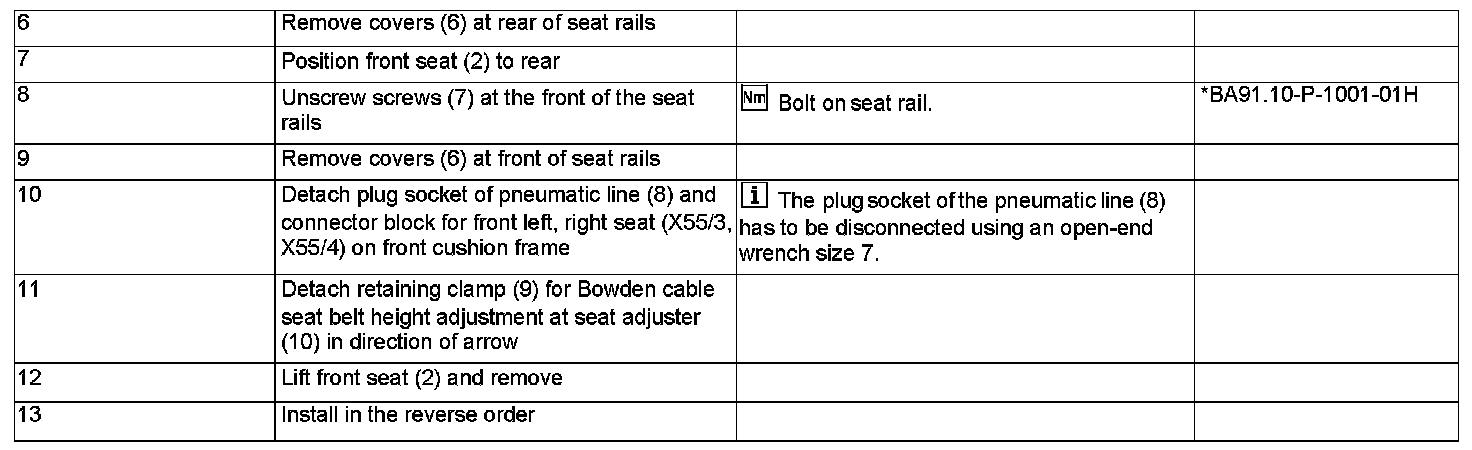

Part 2:

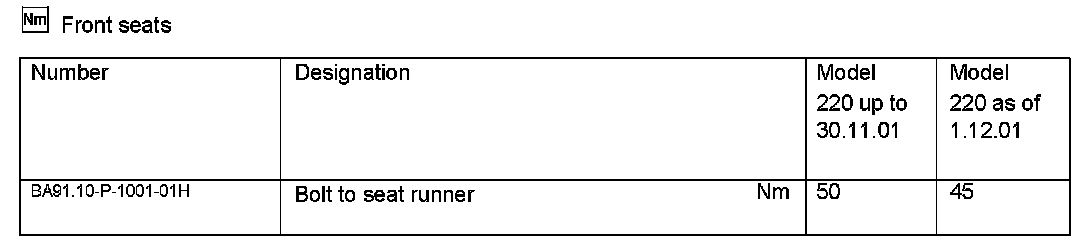

Front Seats:

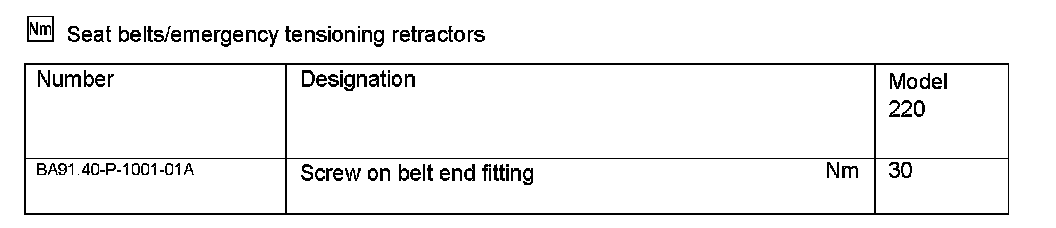

Seat Belts/Emergency Tensioning Retractors:
