Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Body and Frame >> Seats >> Description and Operation >> GF91.30-P-3101SS Rear Seat Ventilation Motors, Location/Task/Design/Function

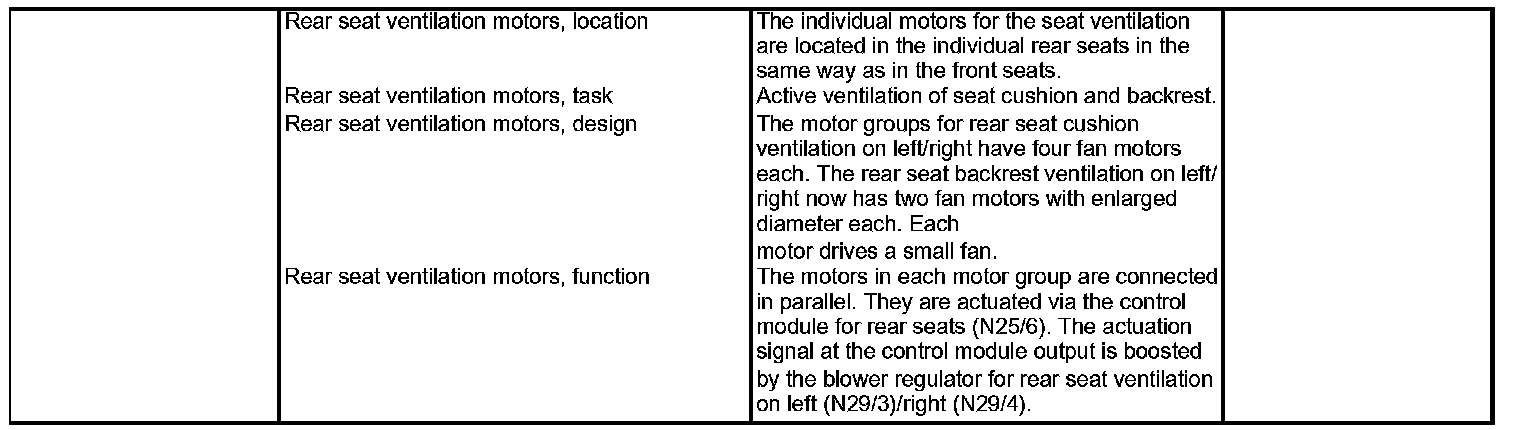

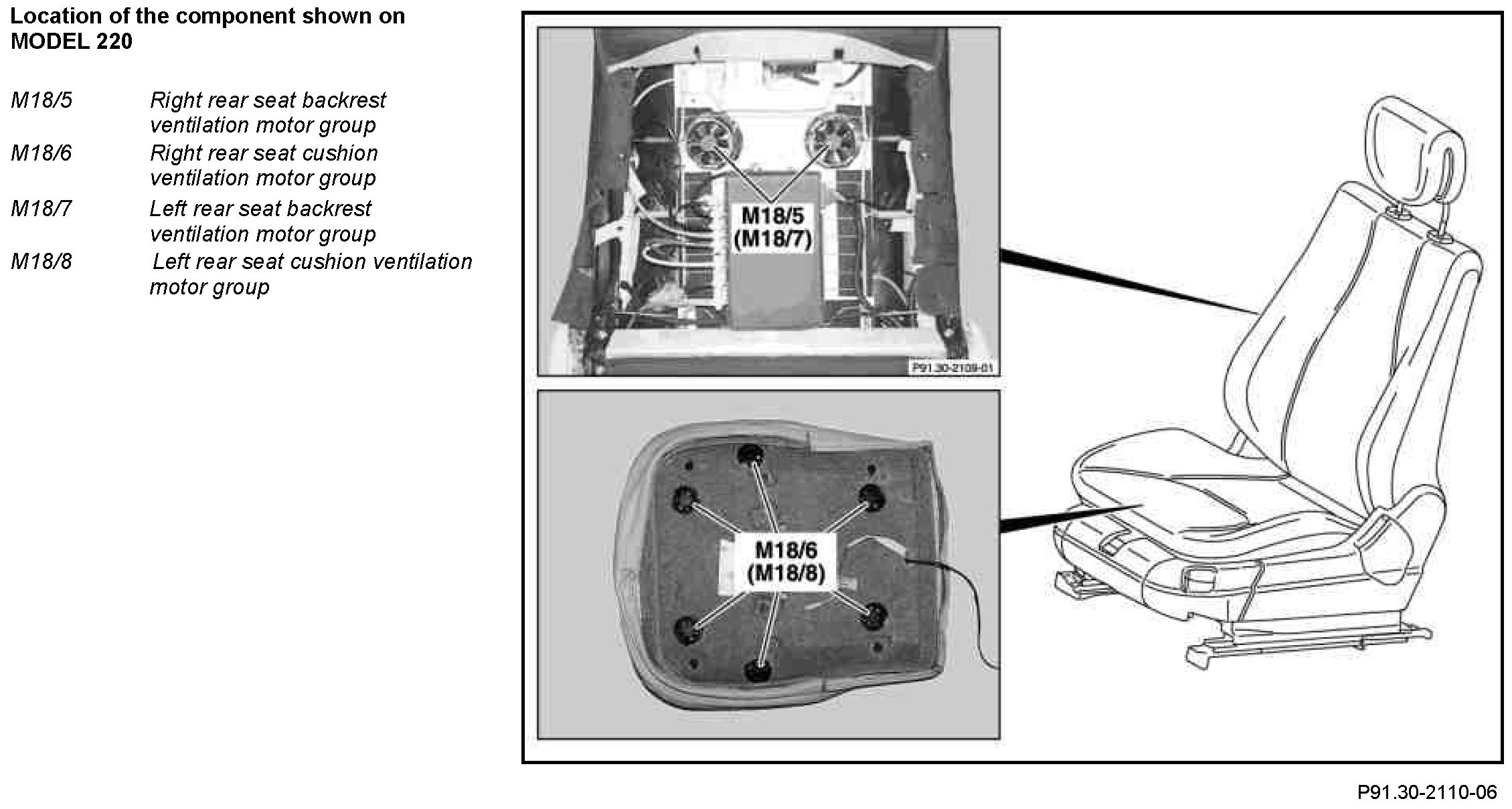

GF91.30-P-3101SS Rear Seat Ventilation Motors, Location/Task/Design/Function



GF91.30-P-3101SS Rear Seat Ventilation Motors, Location/Task/Design/Function
- with CODE (402a) Seat ventilation of rear seats
