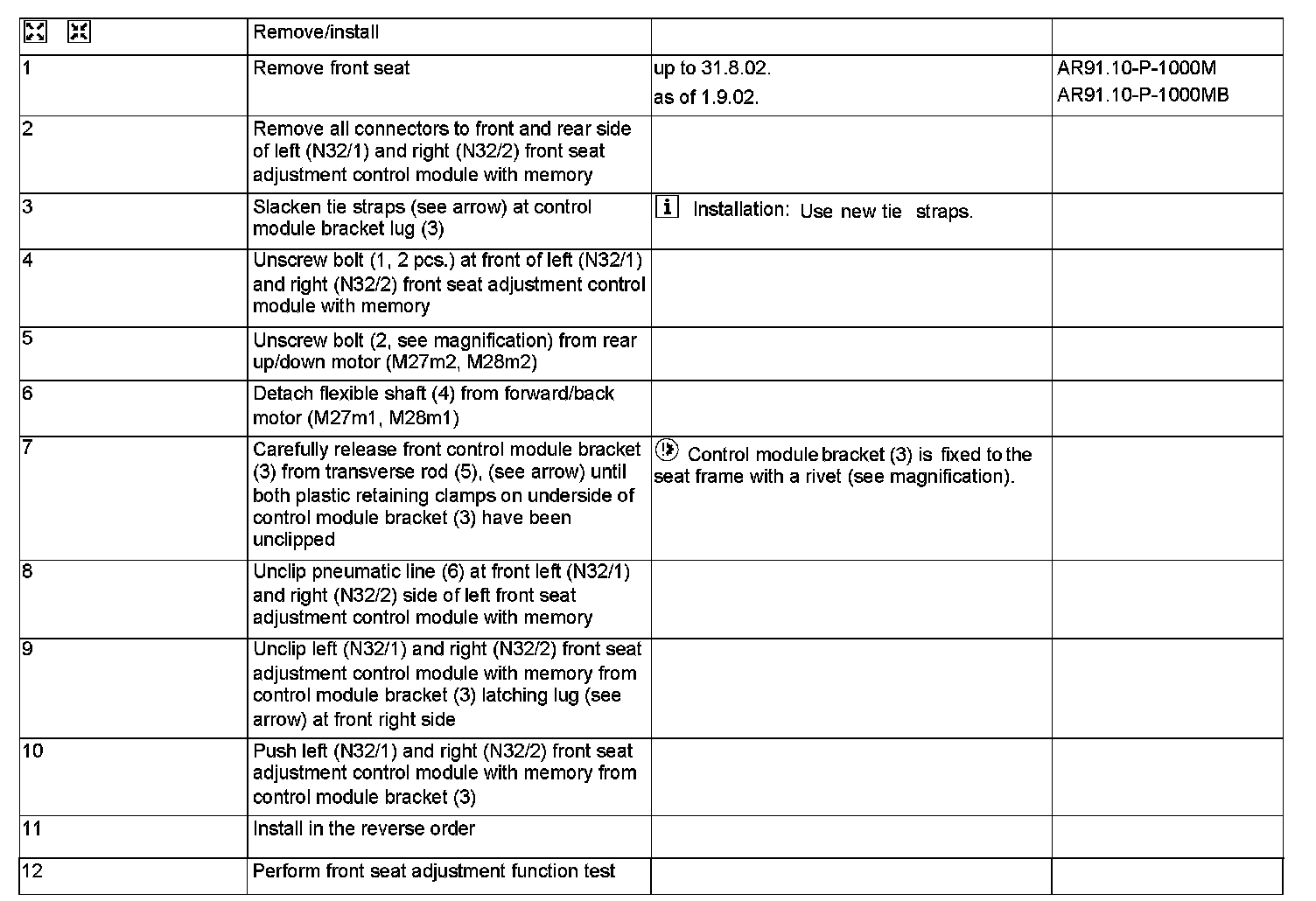

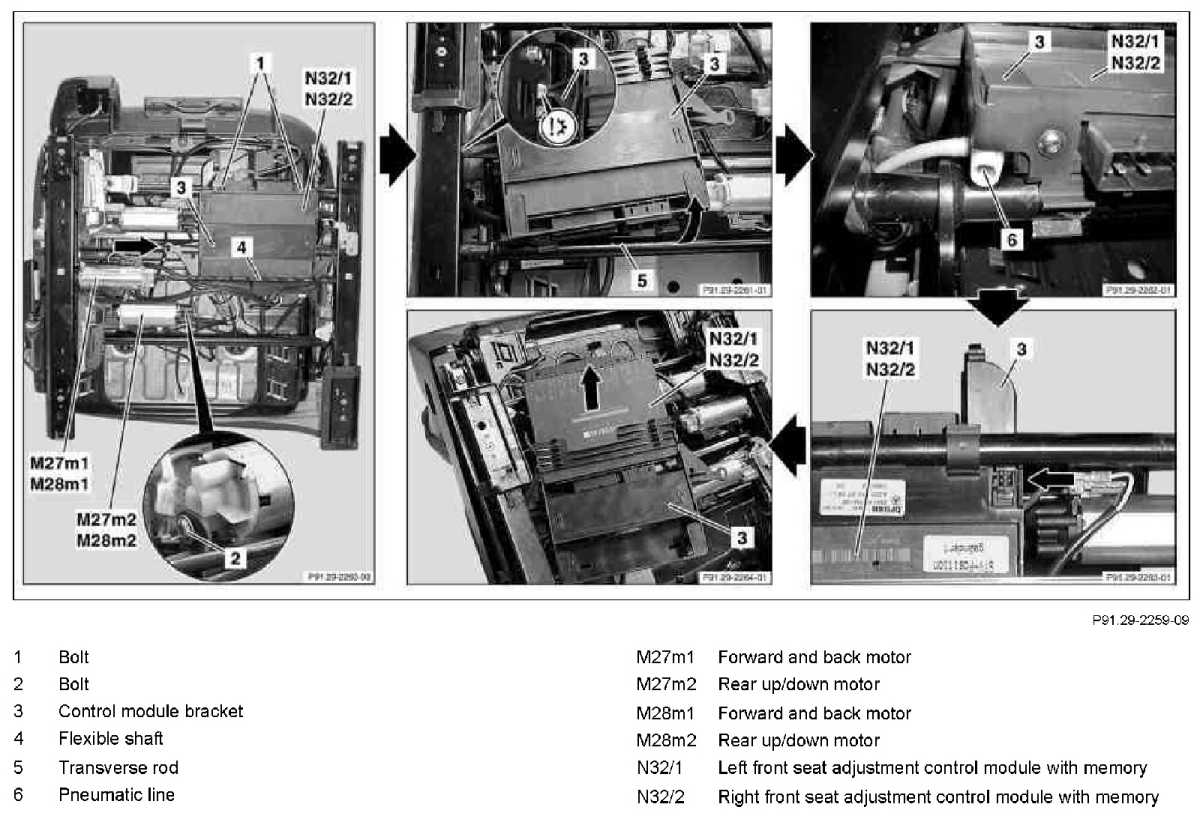

AR91.29-P-1550MA Remove/Install Front Seat Control Module
AR91.29-P-1550MA Remove/Install Front Seat Control Module
AR91.29-P-1550MA Remove/Install Front Seat Control Module
