AR72.29-P-1100M Remove/Install Rear Door Control Module

AR72.29-P-1100M Remove/Install Rear Door Control Module

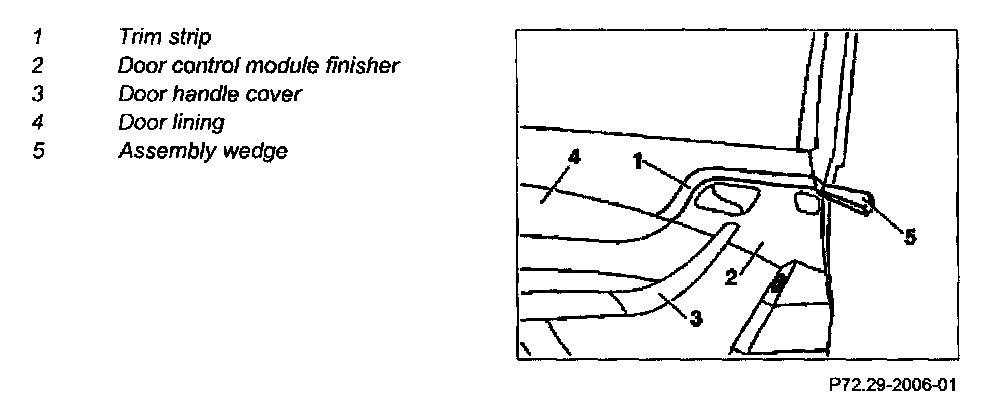

1 Press trim strip (1) out of door control module finisher (2) using assembly wedge (5)
- See "Special Tools" below.

2 Remove door handle cover (3) from door handle
3 Unscrew door control module finisher (2) from door lining (4) and press out using assembly wedge (5)
- See "Special Tools" below.

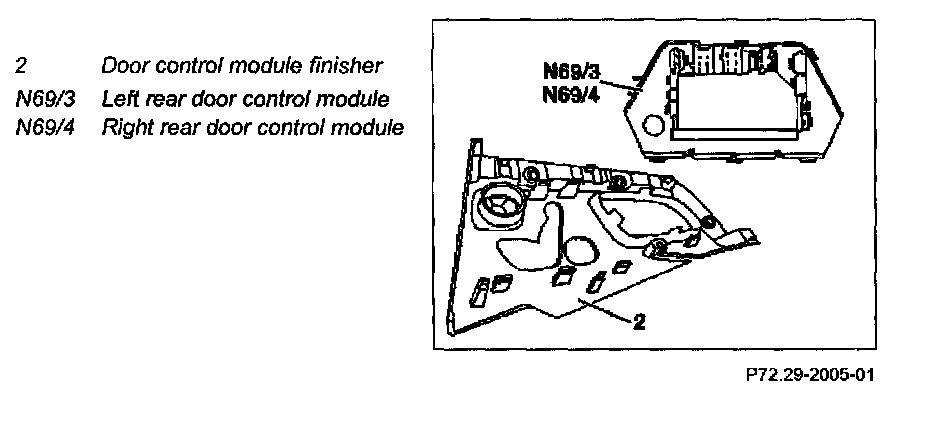

4 Disconnect the connectors from left/right rear door control module (N69/3, N69/4) and remove door control module cover (2)
5 Unclip left/right rear door control module (N69/1, N69/2) from door control module cover (2)

CAUTION: For this purpose, press mounting clips arrow on left/right rear door control module (N69/3, N69/4) together with suitable tool and simultaneously press left/right rear door control module (N69/3, N69/4) out of door control module cover.

6 Install in reverse order.

Special Tools

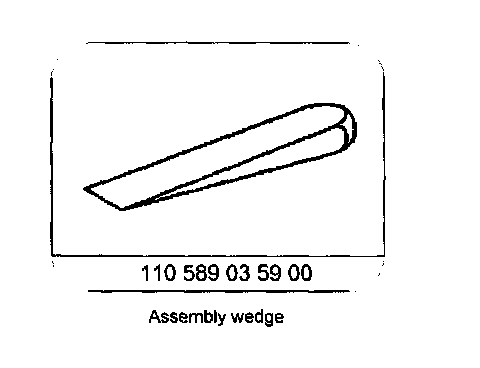

Assembly Wedge P/N # 110 589 03 59 00:
