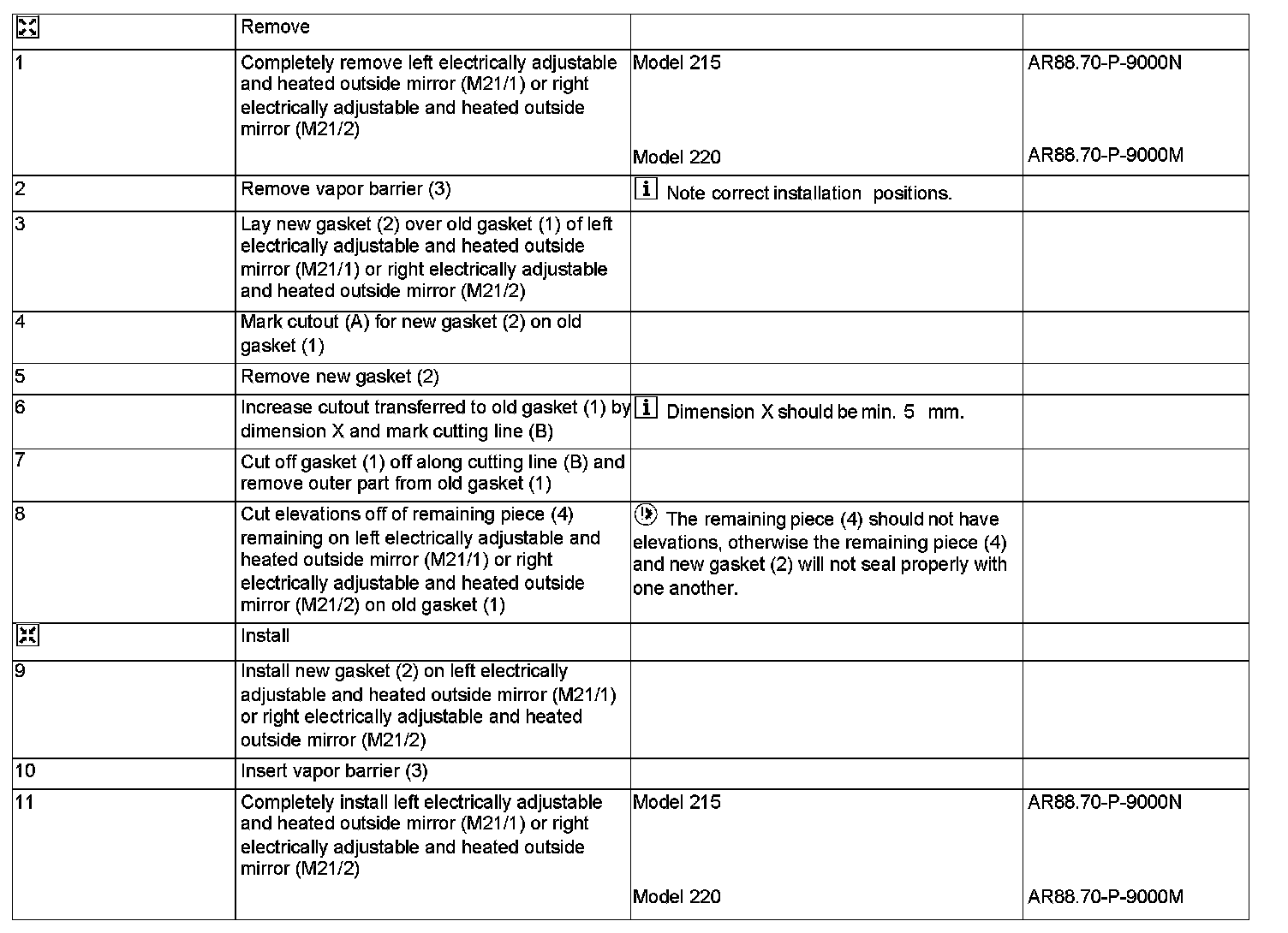

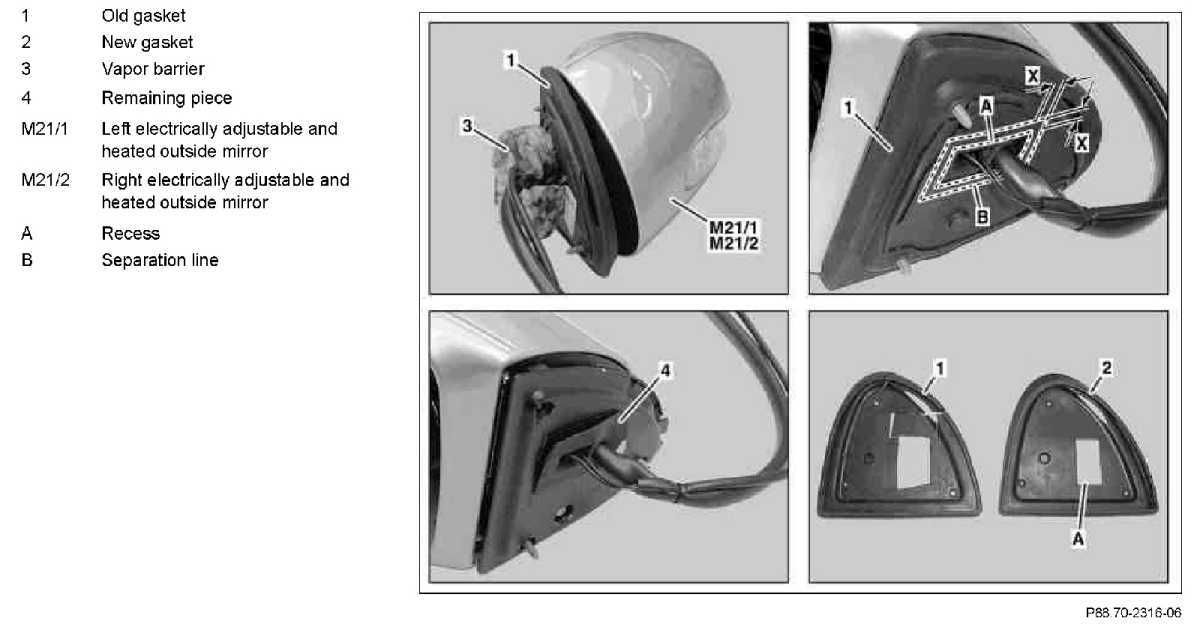

AR88.70-P-9090M Remove/Install Gasket on Outside Mirror
AR88.70-P-9090M Remove/Install Gasket on Outside Mirror
AR88.70-P-9090M Remove/Install Gasket on Outside Mirror
