AR68.10-P-1400M Remove/Install Glove Compartment

AR68.10-P-1400M Remove/Install Glove Compartment

Illustrated On Model 220:

1 Open glove compartment lid (6)

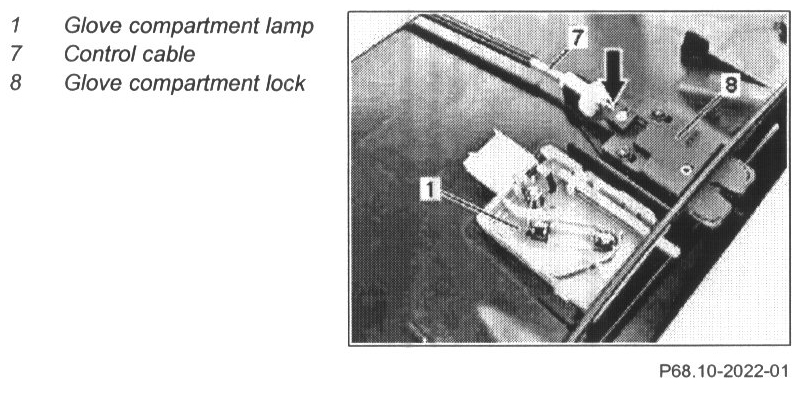

2 Unclip glove compartment lamp (1) and disconnect connector
3 Remove plugs (2)
4 Unscrew screws (3)
5 Unscrew screws (4)
6 Pull glove compartment (5) completely out of instrument panel
7 Unhook control cable (7) on lock (8) on glove compartment (5)

CAUTION: When unhooking the control cable (7) ensure that the slider (arrow) is not pulled out of the lock (8)

8 Install in opposite order.
