AR68.10-P-1500M Remove/Install Cover Below Instrument Panel (Left)

AR68.10-P-1500M Remove/Install Cover Below Instrument Panel (Left)







Removal, installation

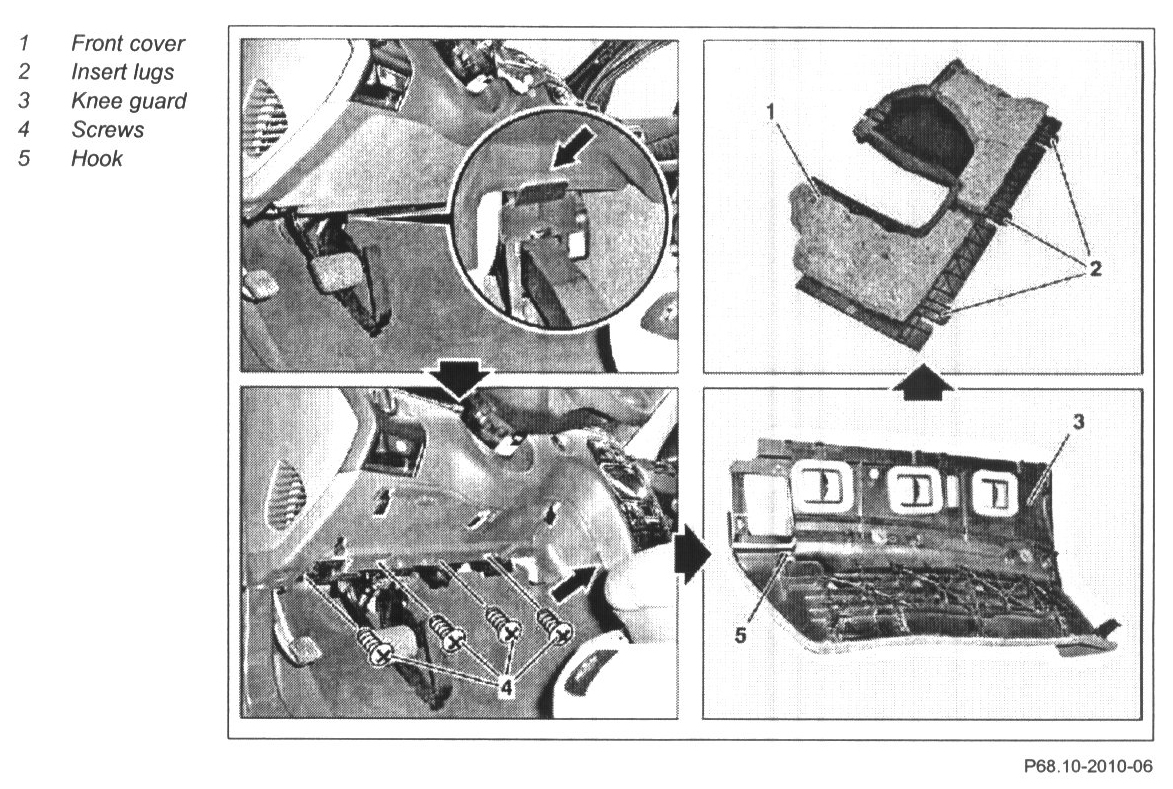

1 Unscrew mounting nut for front cover (1)
2 Slide front cover (1) with insert lugs (2) toward front out of knee guard (3) and remove downward out of guide (arrow) over accelerator pedal

NOTE: Installation: Insert cover (1) in guide (arrow) on accelerator pedal

3 Unclip footwell lamp from knee guard (3) and disconnect connectors
4 Unscrew screws (4), (4 each)
5 Push knee guard (3) with hooks (5), (4 each) toward rear out of instrument panel and simultaneously out of center console

CAUTION: Installation Ensure that the side guide lug for the knee guard is inserted properly in the area of the center console (arrow)

6 Install in opposite order.
