AR68.20-P-2350M Remove/Install Cover on Center Console

AR68.20-P-2350M Remove/Install Cover on Center Console






















Remove/install
1 Move selector lever to position "D"

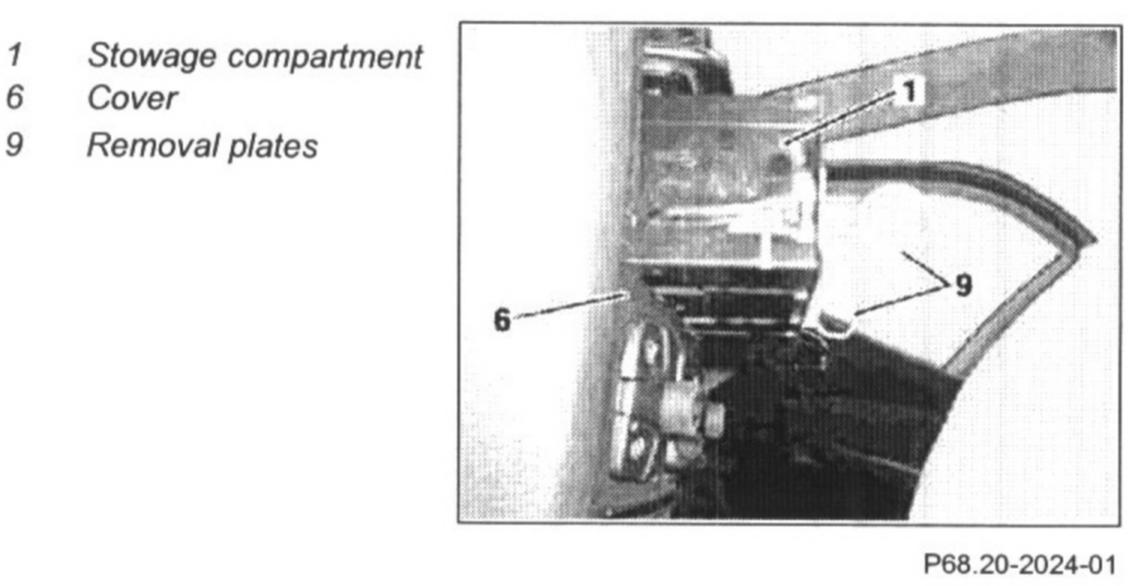

2 Pull stowage compartment (1) of cover (6) out with removal plates (9)
- when equipped with radio

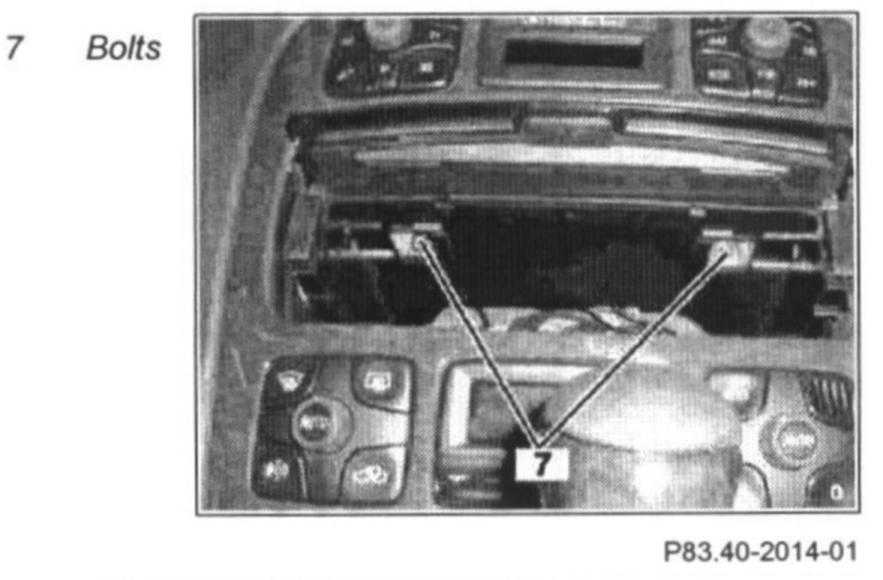

3 Unscrew the bolts (7)
- when equipped with radio

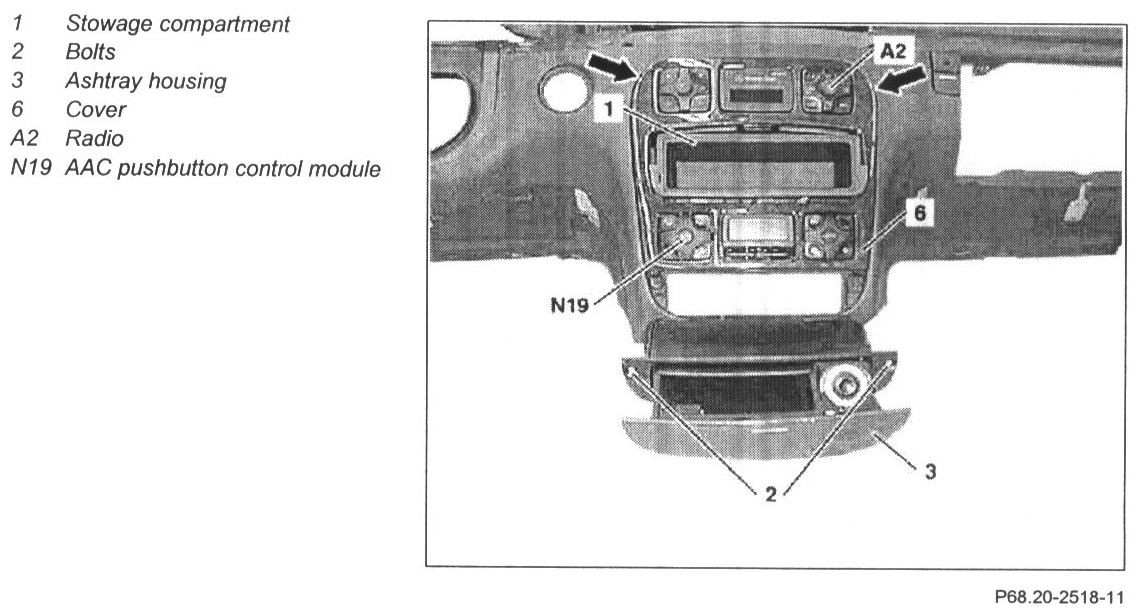

4 Remove ashtray housing (3)

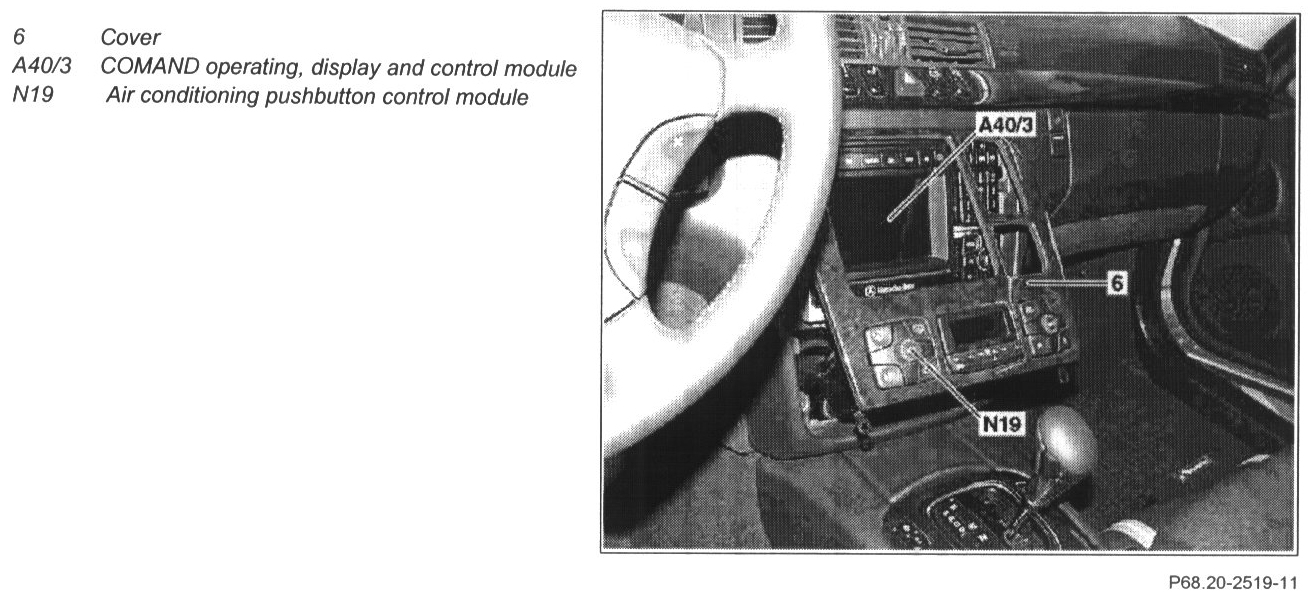

5.1 Pull cover (6) out with air conditioning pushbutton control module (N19) and radio (A2)
- when equipped with radio

NOTE: Cover is clipped into upper area (arrows) of center console.

5.2 Pull cover (6) out with air conditioning pushbutton control module (N19)
- when equipped with COMAND

NOTE: Cover is clipped into upper area (arrows) of center console.

6 Disconnect connectors
7 Remove radio (A2) from cover (6)
- when equipped with radio
8 Remove air conditioning pushbutton control module (N19) from cover (6)
9 Install in the reverse order.
