AR68.20-P-2000M Remove/Install Center Console




AR68.20-P-2000M Remove/Install Center Console

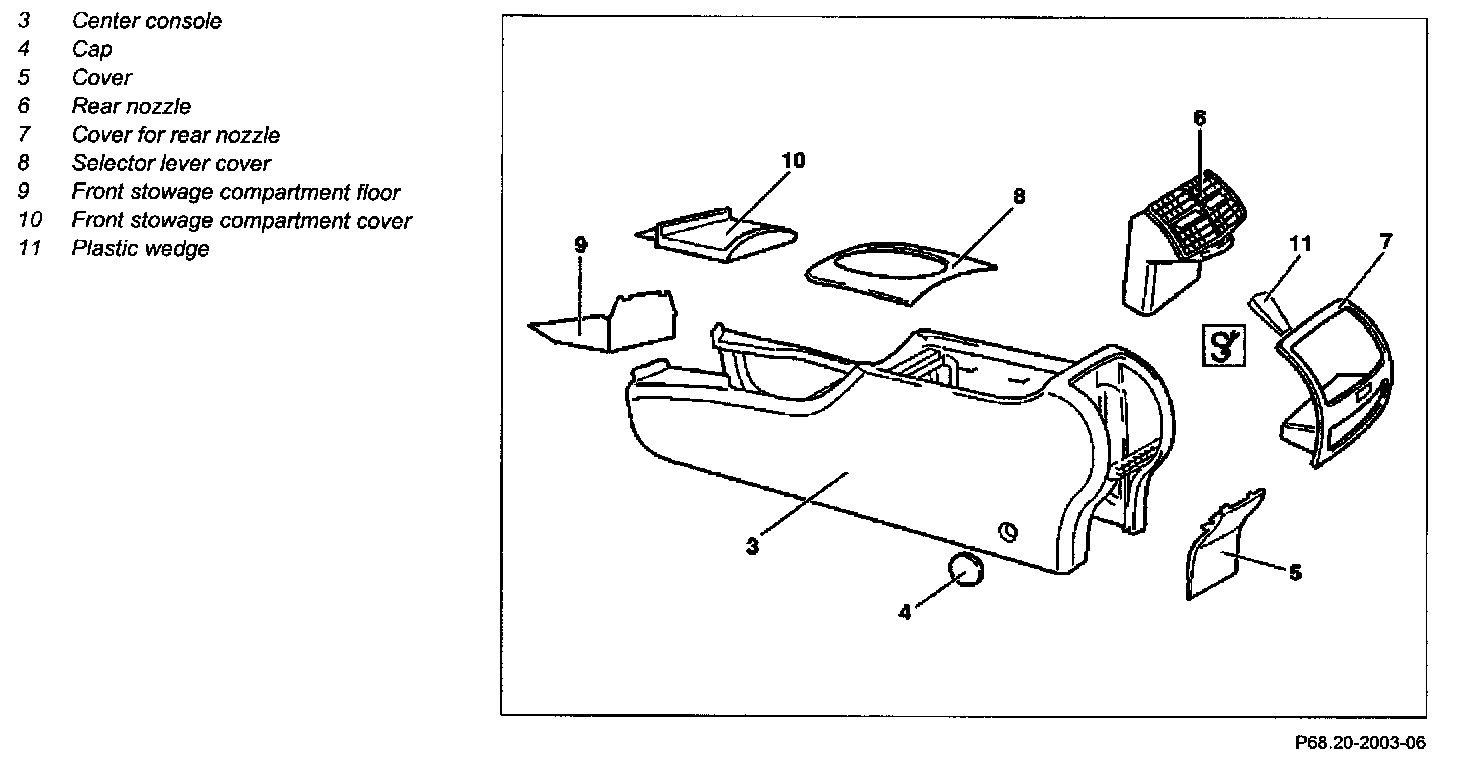

1 Remove selector lever cover (8)


NOTE: Selector lever in position "D"

2 Open front stowage compartment cover (10) on stowage compartment in front of selector lever, unclip bottom of front stowage compartment (9) and remove.

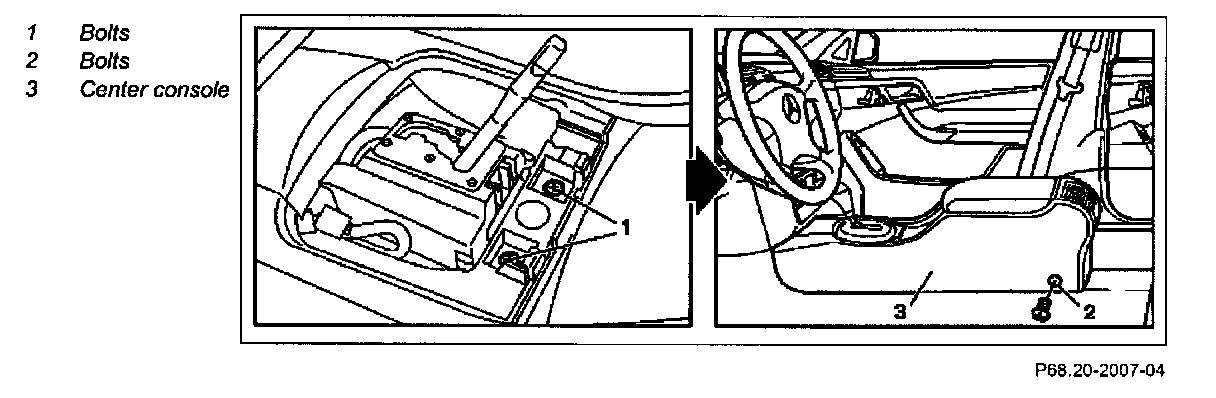

3 Unscrew screws (1)
4 Unscrew screw (2)

NOTE: Move driver and front passenger seat toward foremost position

5 Unclip upper cover (5) and remove
6.1 Unclip rear compartment nozzle cover (7) on upper rear compartment nozzle (6) toward rear with plastic wedge.

CAUTION: Do not use sharp tool to prevent damage to cover and center console!

- See "Special Tools" below

6.2 Remove covering (7) with stowage compartment upward toward rear.
6.3 Remove button control unit for rear air conditioning system
7 Disconnect connector from rear compartment nozzle adjustment illumination
8 Remove rear compartment nozzle (6)
9 Disconnect connector from stowage compartment illumination.
10 Disconnect connectors from telephone system.
11 Lift rear center console (3) and move out to instrument panel

NOTE: Cover (10) closed

12 Install in the reverse order.

Special Tools

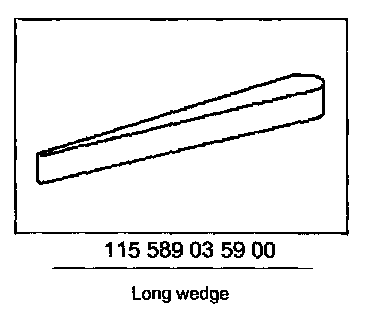

Long Wedge P/N # 115 589 03 59 00:
