Front Fender: Service and Repair
AR88.10-P-1000M Remove/Install Front
Fender

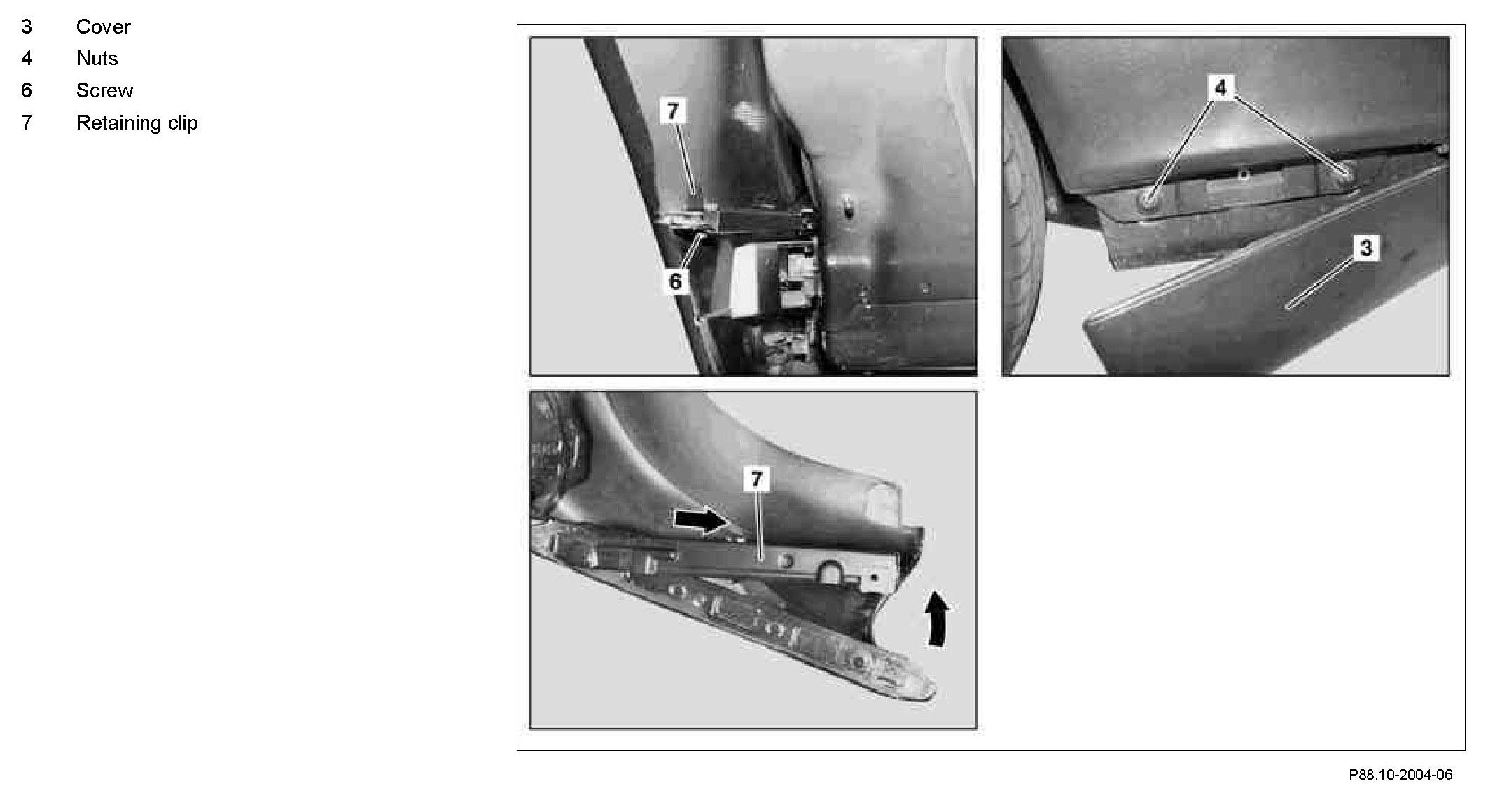

Component Identification:
Component Identification:

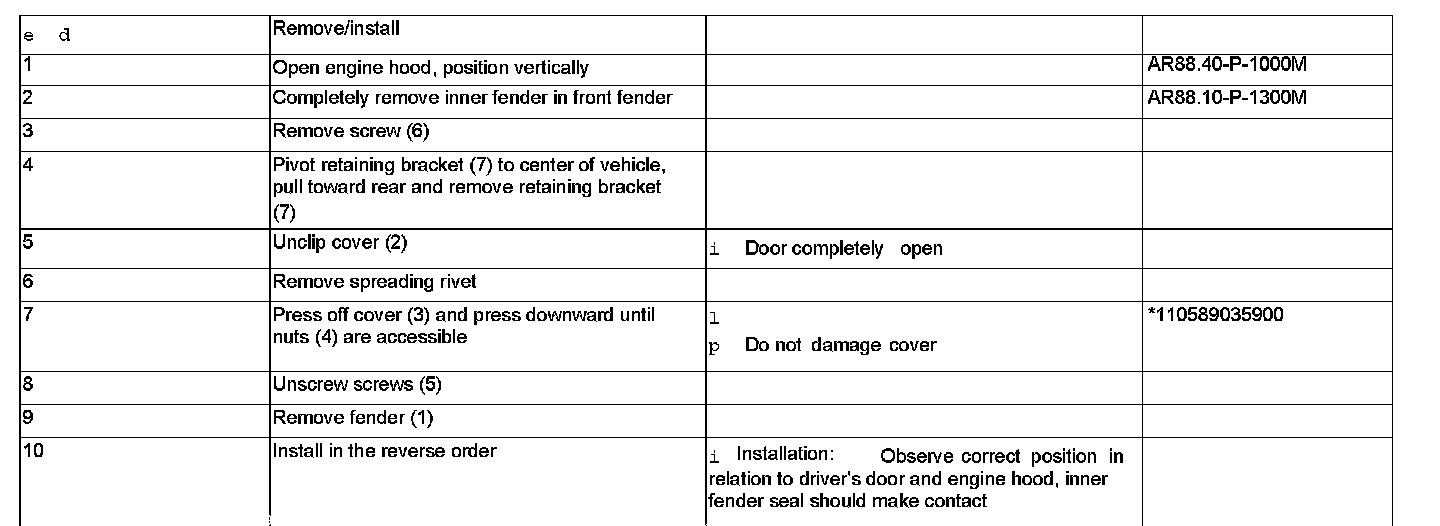

Steps 1 - 10:

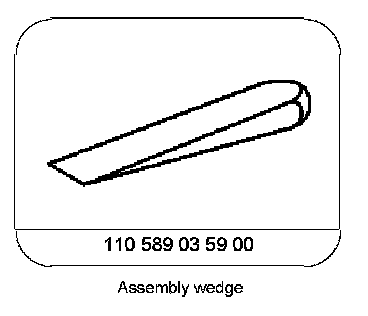

Special Tools:
