Removal and Replacement



AR88.50-P-5020M Remove/Install and Adjust Trunk Lid Lock and Locking Eye

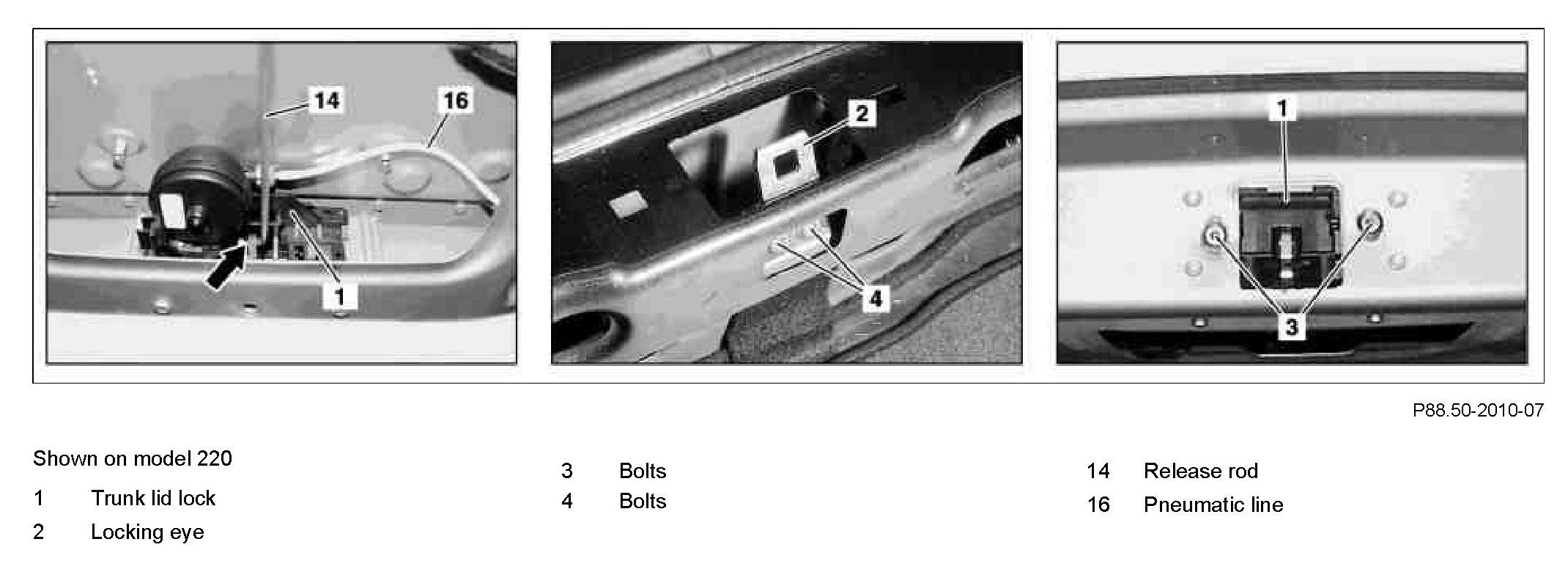

Component Identification:

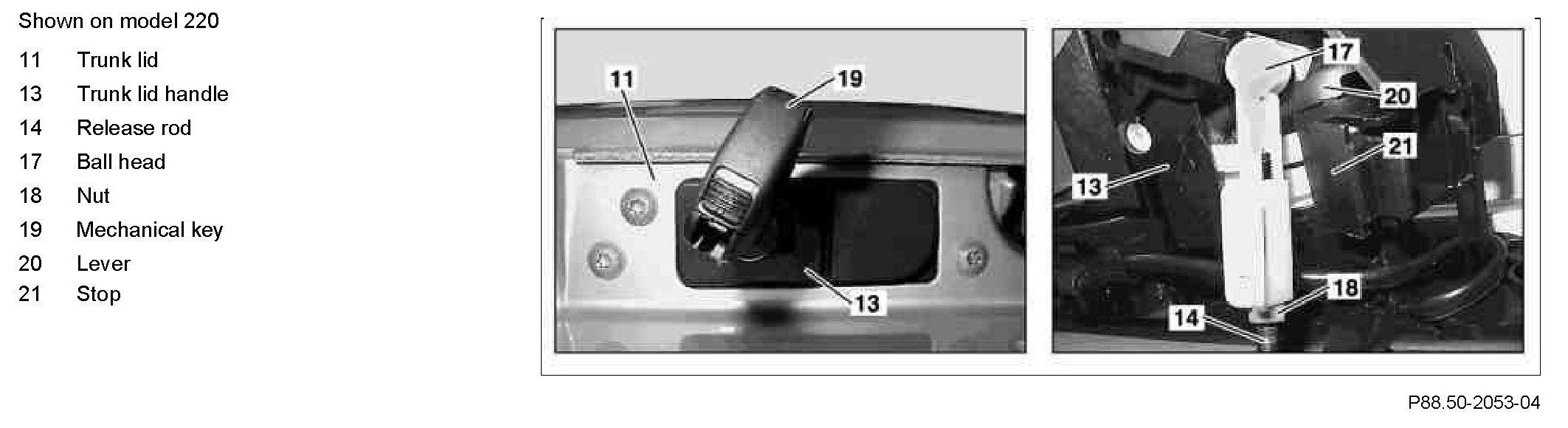

Component Identification:

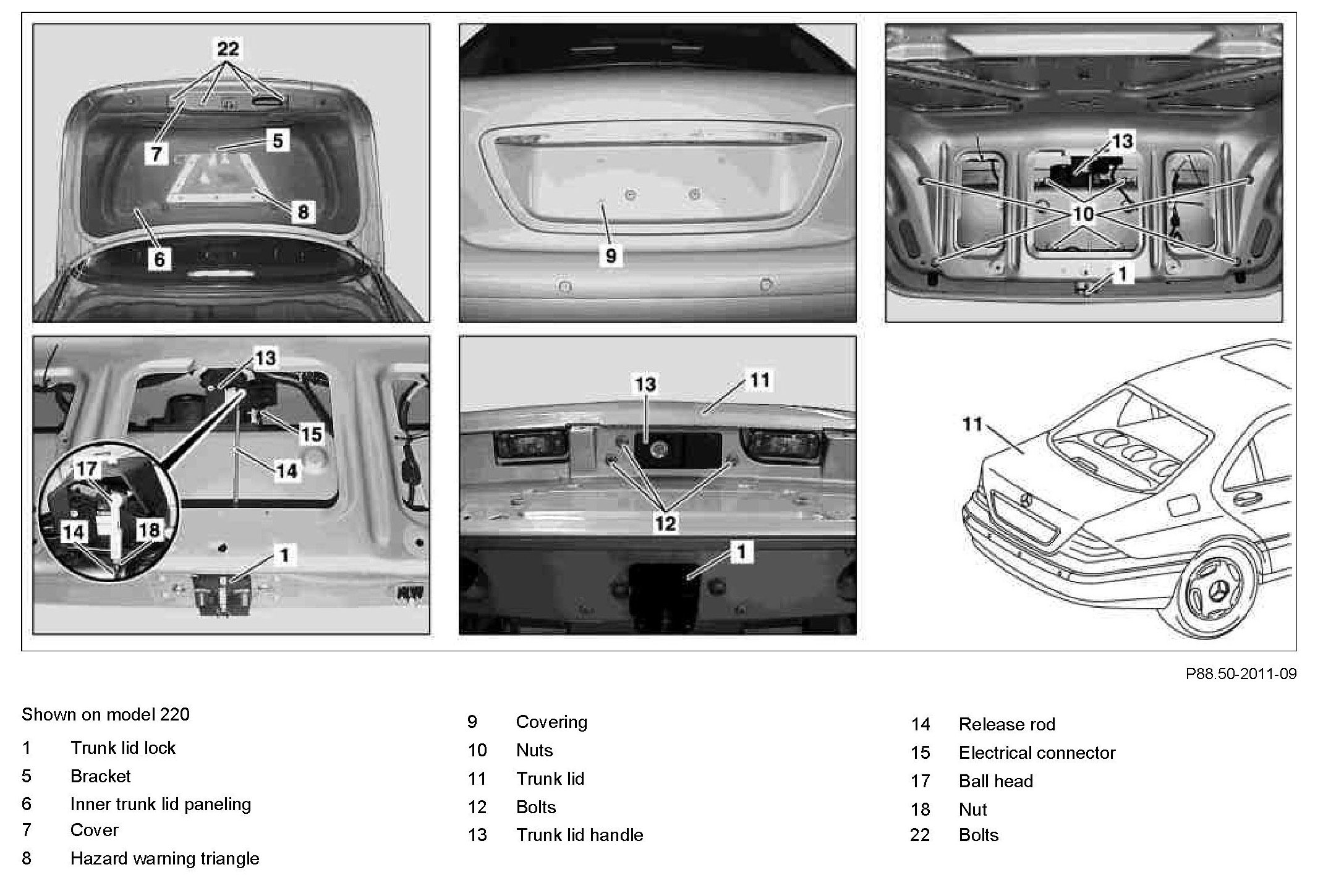

Component Identification:

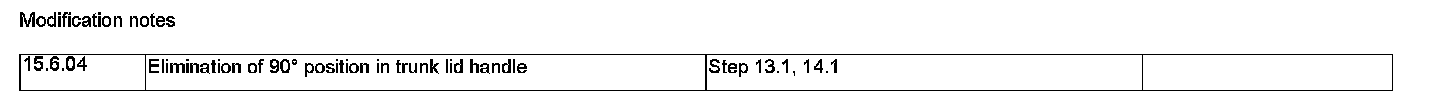

Modification Notes:

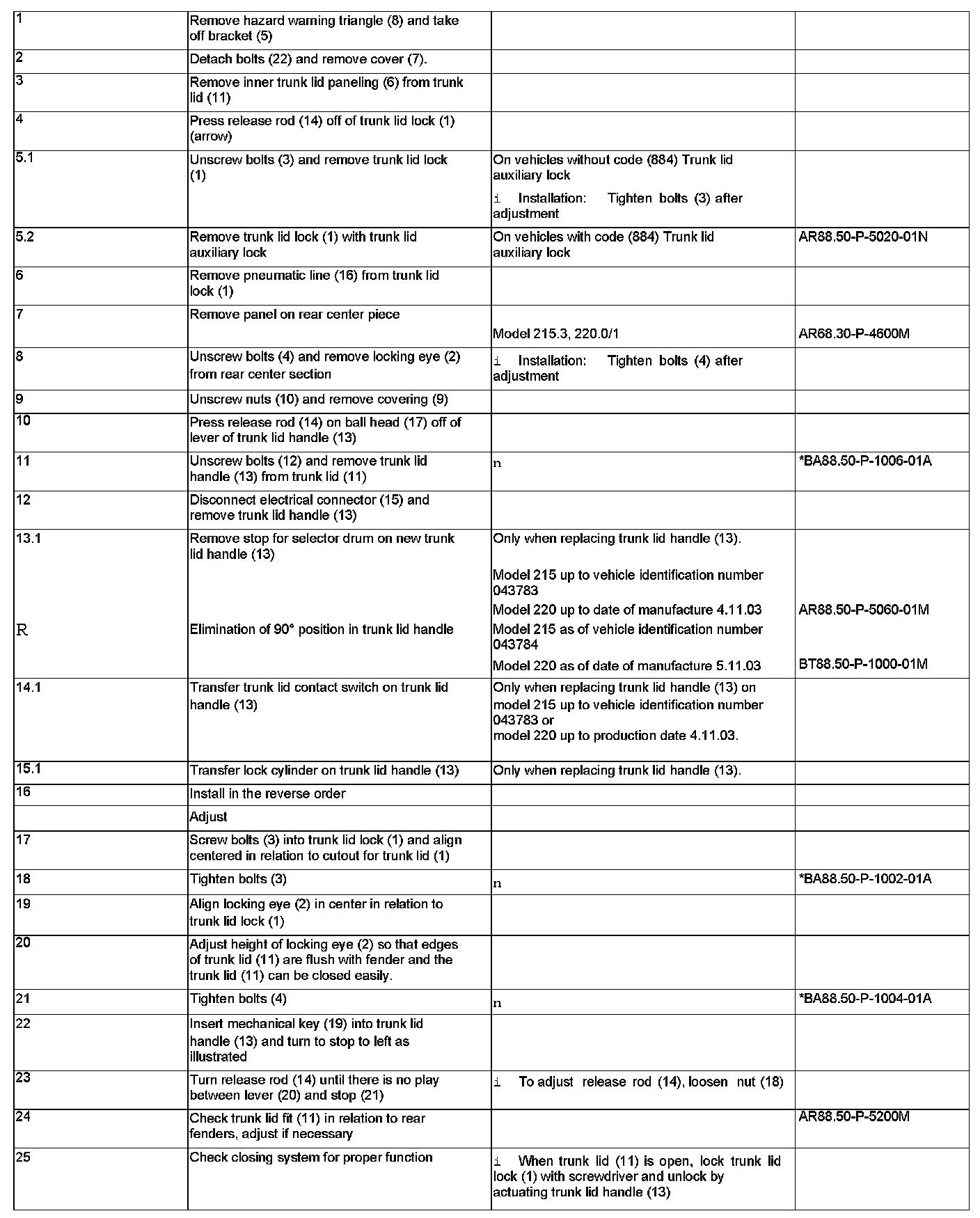

Steps 1 - 25:

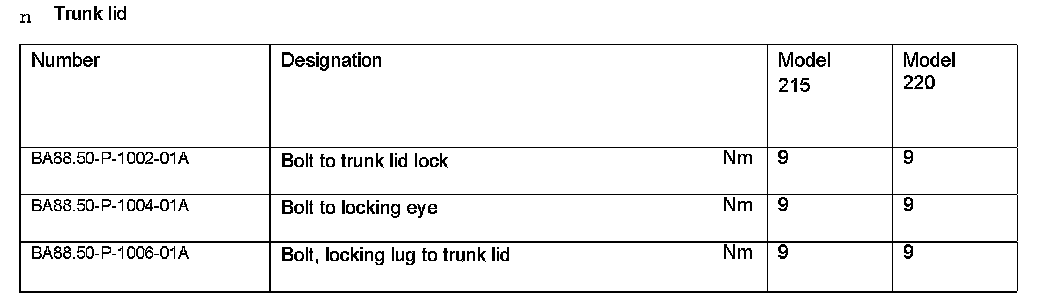

Trunk Lid:
