AZ88.50-P-0002-06M Retrofitting Trunk Interior Button

AZ88.50-P-0002-06M Retrofitting Trunk Interior Button







Model 220

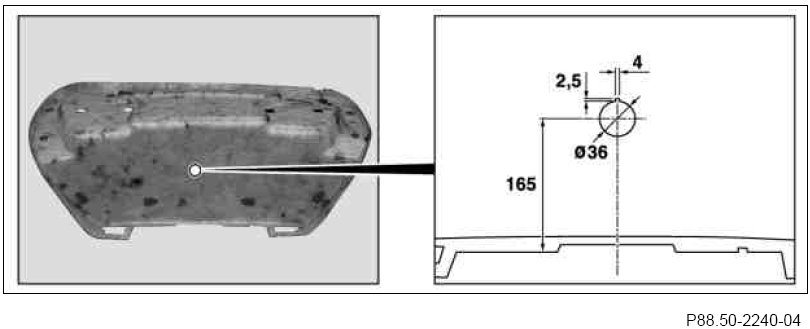

1.1 Mark cutout on paneling as shown in drawing.
2.1 Cut out paneling.







Model 215

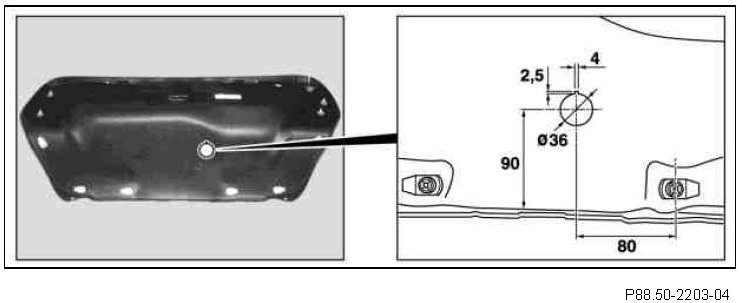

1.2 Mark cutout on paneling as shown in drawing.
2.2 Cut out paneling.

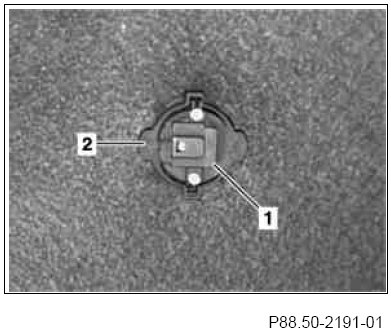

3. Install trunk interior button (1) in trunk lid paneling from front and fasten from rear with retaining ring.

Ensure that seat is correct (collar on trunk interior button (1) should make contact with paneling around entire circumference).
