Trunk / Liftgate Interior Trim Panel: Service and Repair

AN88.50-P-0001-02M Cutting Out Trunk Lid Paneling

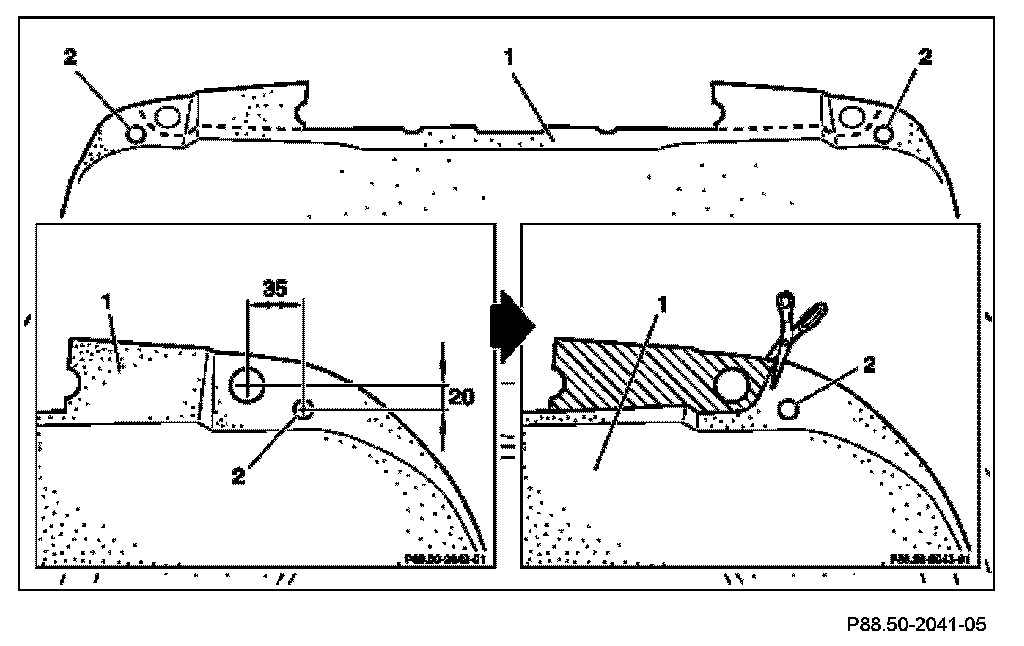

1. Mark center point for hole (2) as shown in figure.
2. Drill 12 mm dia. hole (2) on both sides of trunk lid paneling (1).
3. Cut out left and right trunk lid paneling (1) as shown in figure.
