Home >> Mercedes Benz >> 2002 >> S 500 (220.175) V8-5.0L (113.960) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Hood >> Service and Repair >> Procedures

Procedures

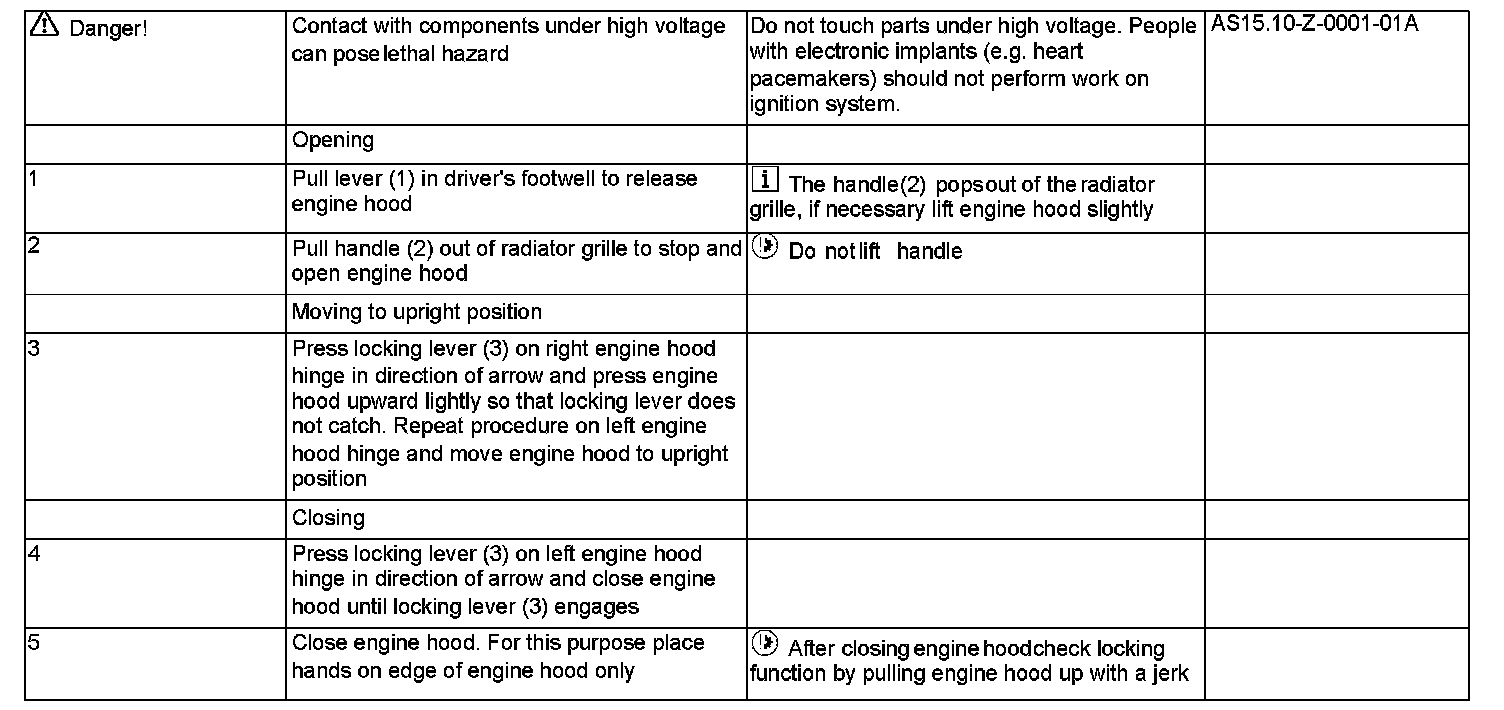

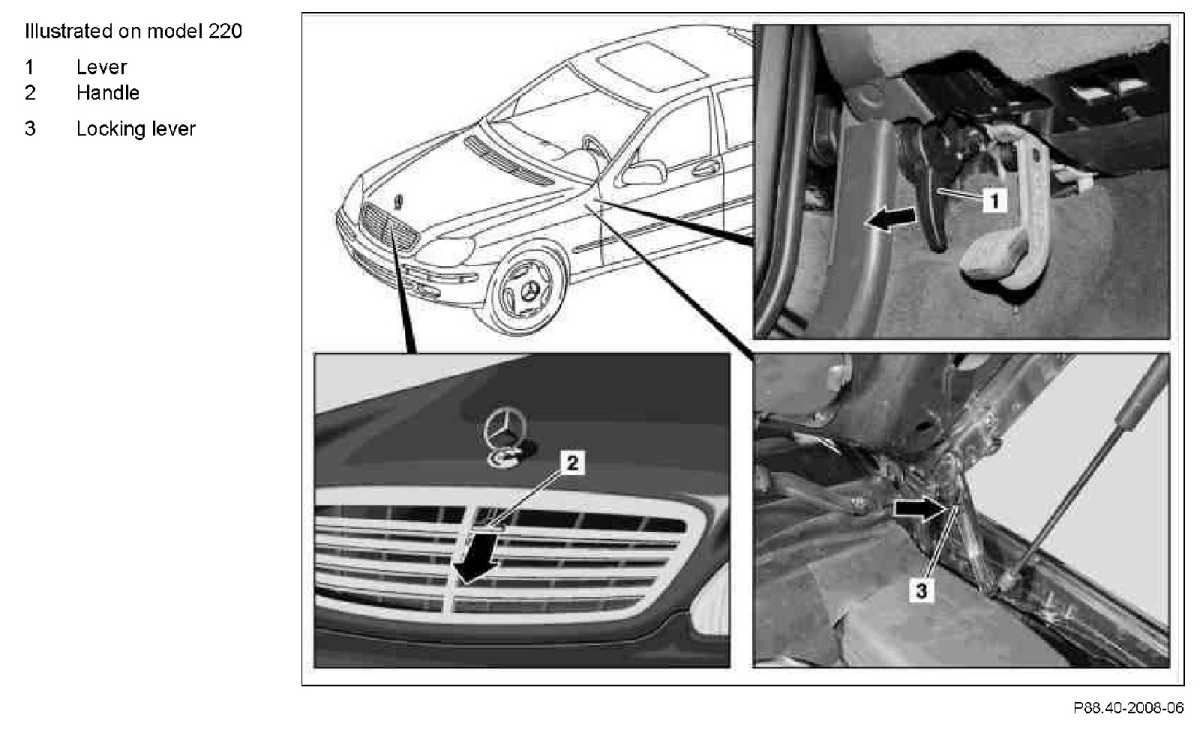

AR88.40-P-1000M Opening Engine Hood, Moving to Upright Position, Closing
