GF82.70-P-0002-02P Voice Control System (VCS) Function Diagram

GF82.70-P-0002-02P Voice Control System (VCS) Function Diagram
MODEL 202 as of 1.6.00, 203 up to 23.4.04, 208.3, 210 as of 1.6.00, 215, 220 as of 1.6.00 up to 31.8.03
- with CODE (813) Voice control system (VCS)







Shown on model 220 with code (316) MB D-network telephone (D2B)
A2 Radio
A2/6 CD player with changer (in trunk)
A34 Telephone hand set
A35/11 Voice control system control unit
A35/13 D2B telephone transmitter/ receiver
B25 Hands-free system microphone
S93/2 VCS switch

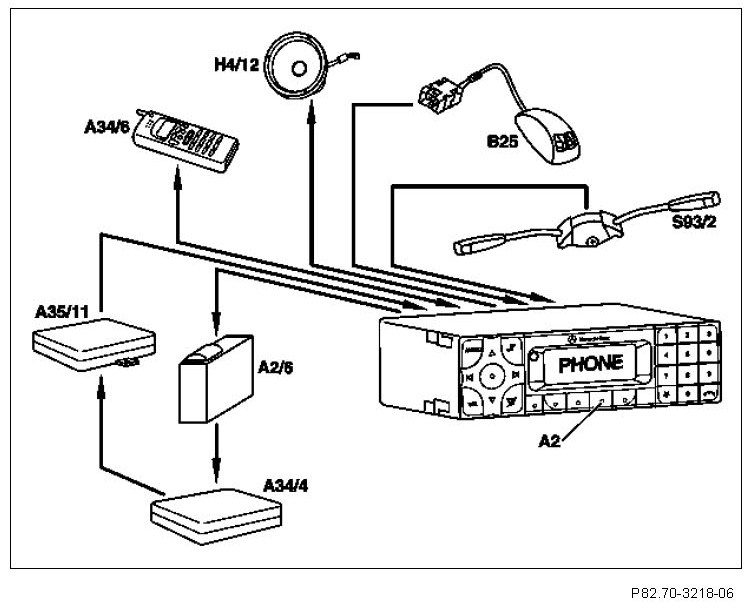

Shown on model 220 with code (317) D-net portable CTEL telephone (D2B)
A2 Radio
A2/6 CD player with changer (in trunk)
A34/4 CTEL interface
A34/6 Portable CTEL
A35/11 Voice control system control unit
B25 Hands-free system microphone
S93/2 VCS switch
