Component Tests and General Diagnostics

AP86.10-P-8690M Oxygen Generator - Check Expiry Date
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection

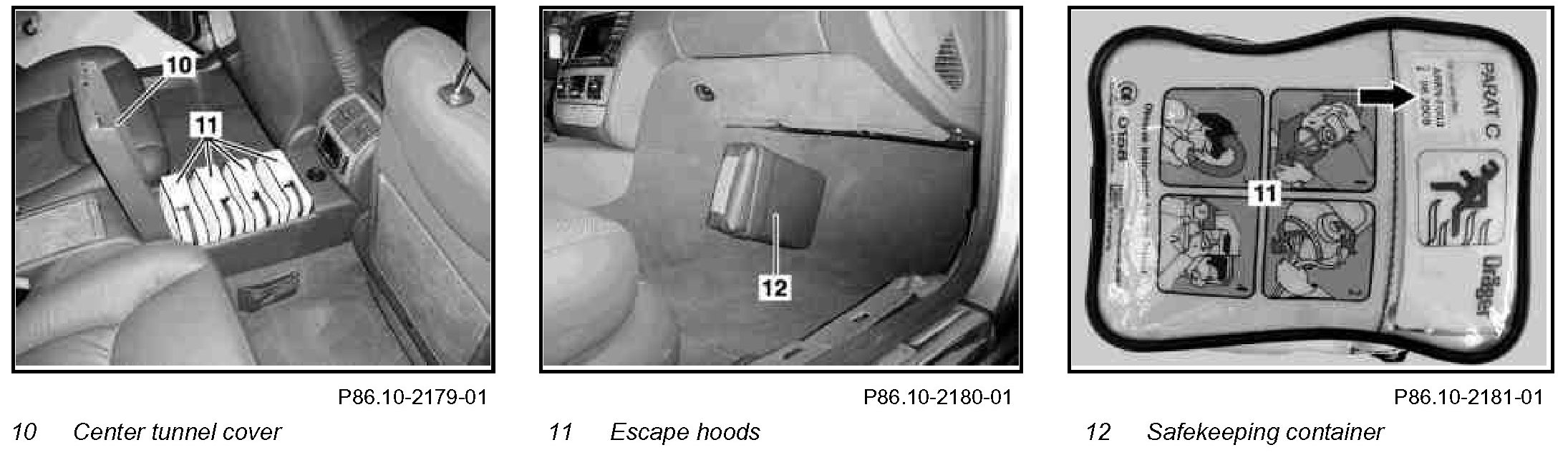

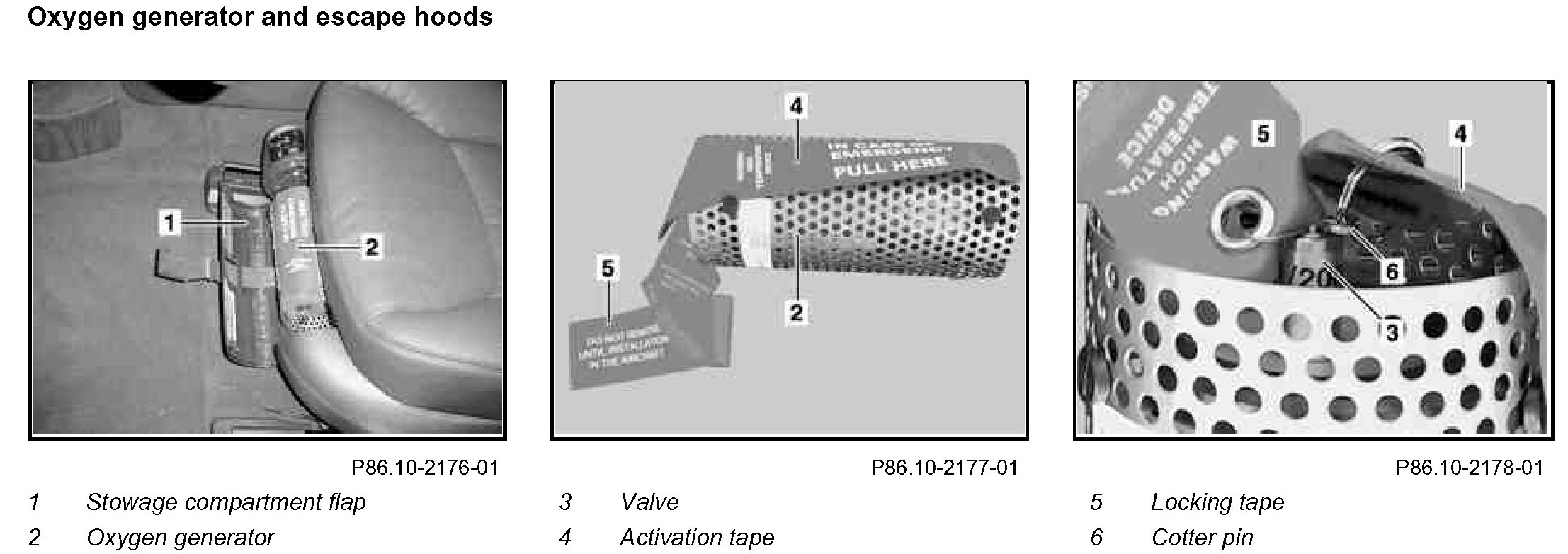

Component Identification:

Component Identification:

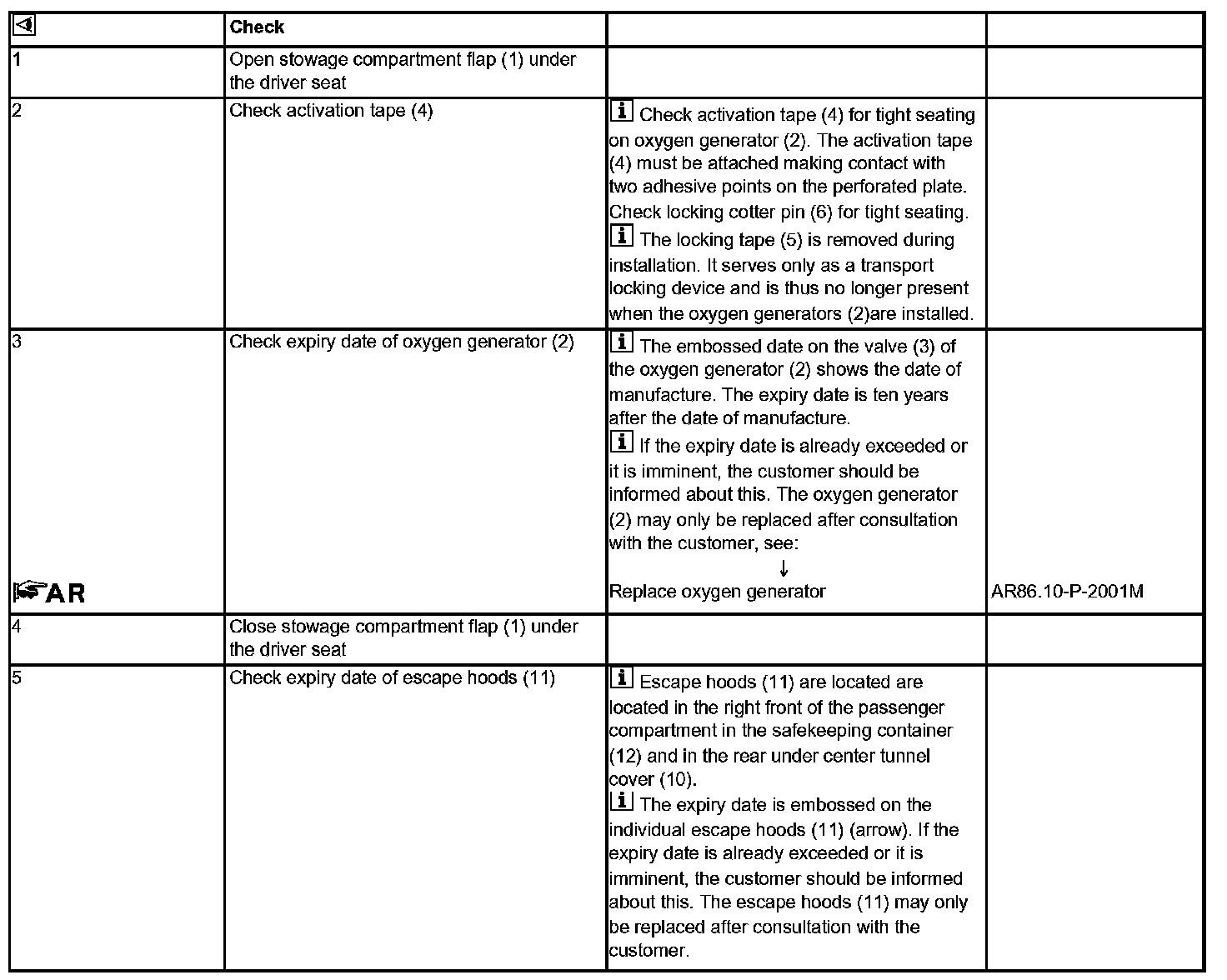

Steps 1 - 5:
