CD Changer: Service and Repair

AR82.64-P-7507I Remove/Install CD Player With Changer
- with CODE (819) 6-disc CD changer

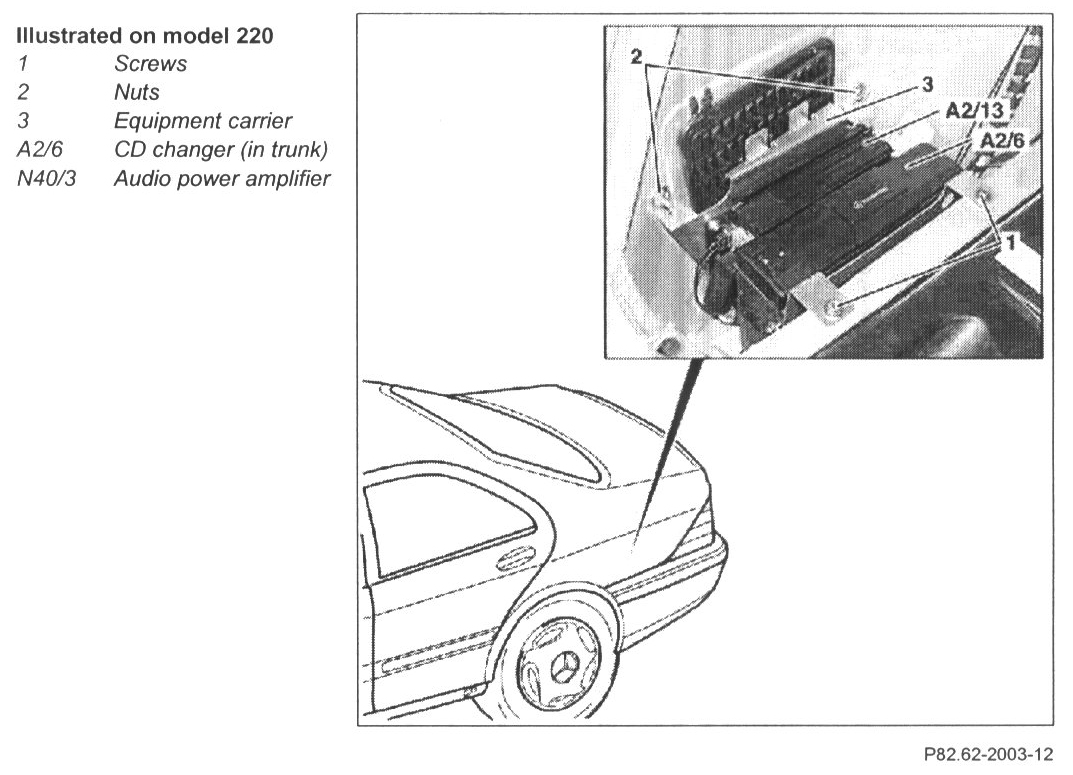

Illustrated On Model 220:

1 Connect quiescent current retention unit
2 Disconnect ground lead from battery
3 Remove paneling in trunk

NOTE: Floor covering, covering on rear center section and left side paneling.

4 Unscrew screws (1) and nuts (2) and remove equipment carrier (3)
5 Disconnect connectors

CAUTION: Do not kink D2B leads

NOTE: If the CD player with changer (in trunk) (A2/6) is removed for a longer period of time, it is necessary to install an adapter to complete the D2B ring.

6 Remove CD changer (in trunk) (A2/6) from equipment carrier
7 Install in opposite order.
8 Check for proper function.
