AR86.10-P-0115MB Remove/Install Extinguishing Agent Lines on Underbody



AR86.10-P-0115MB Remove/Install Extinguishing Agent Lines On Underbody
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection

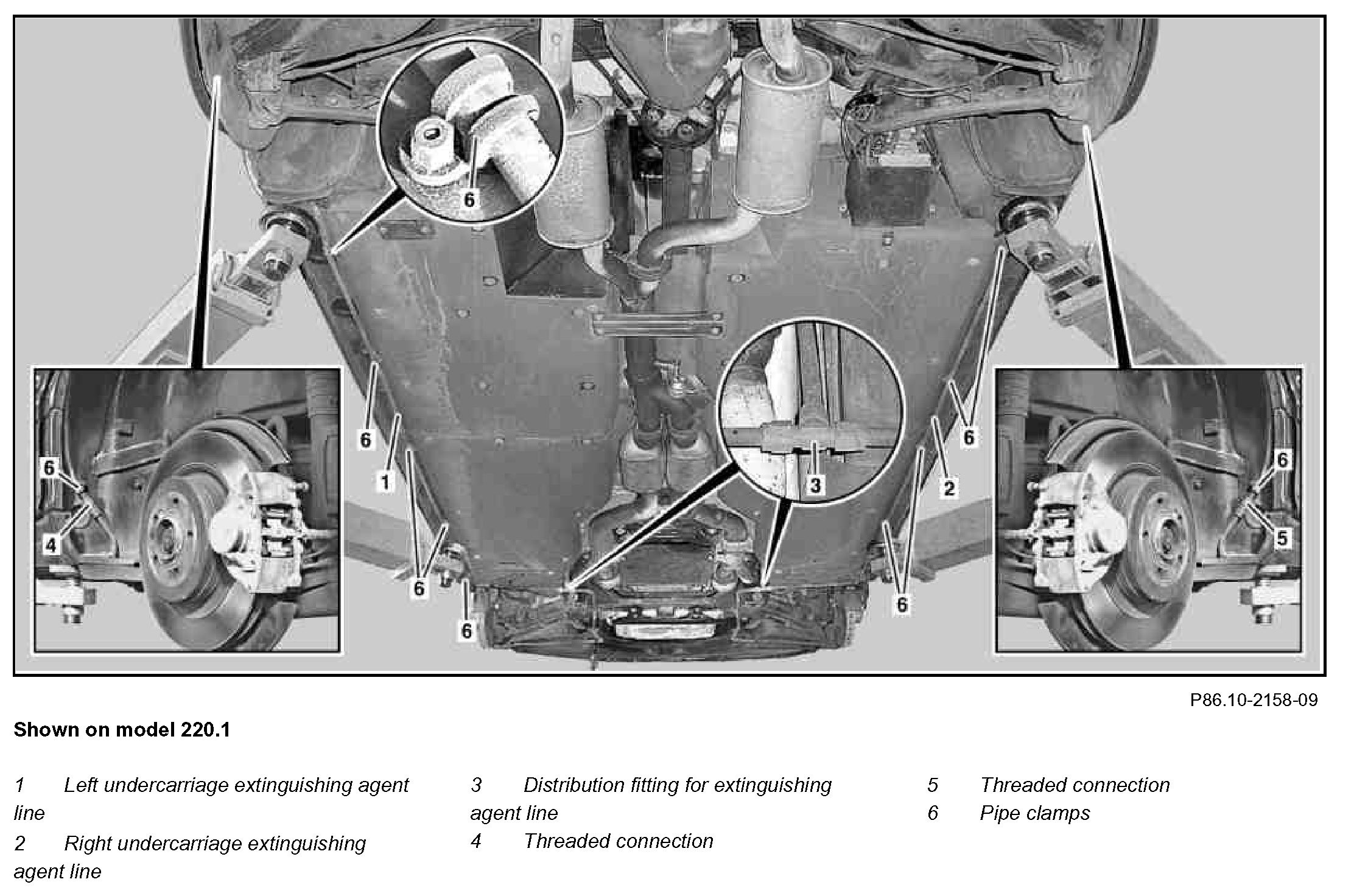

Component Identification:

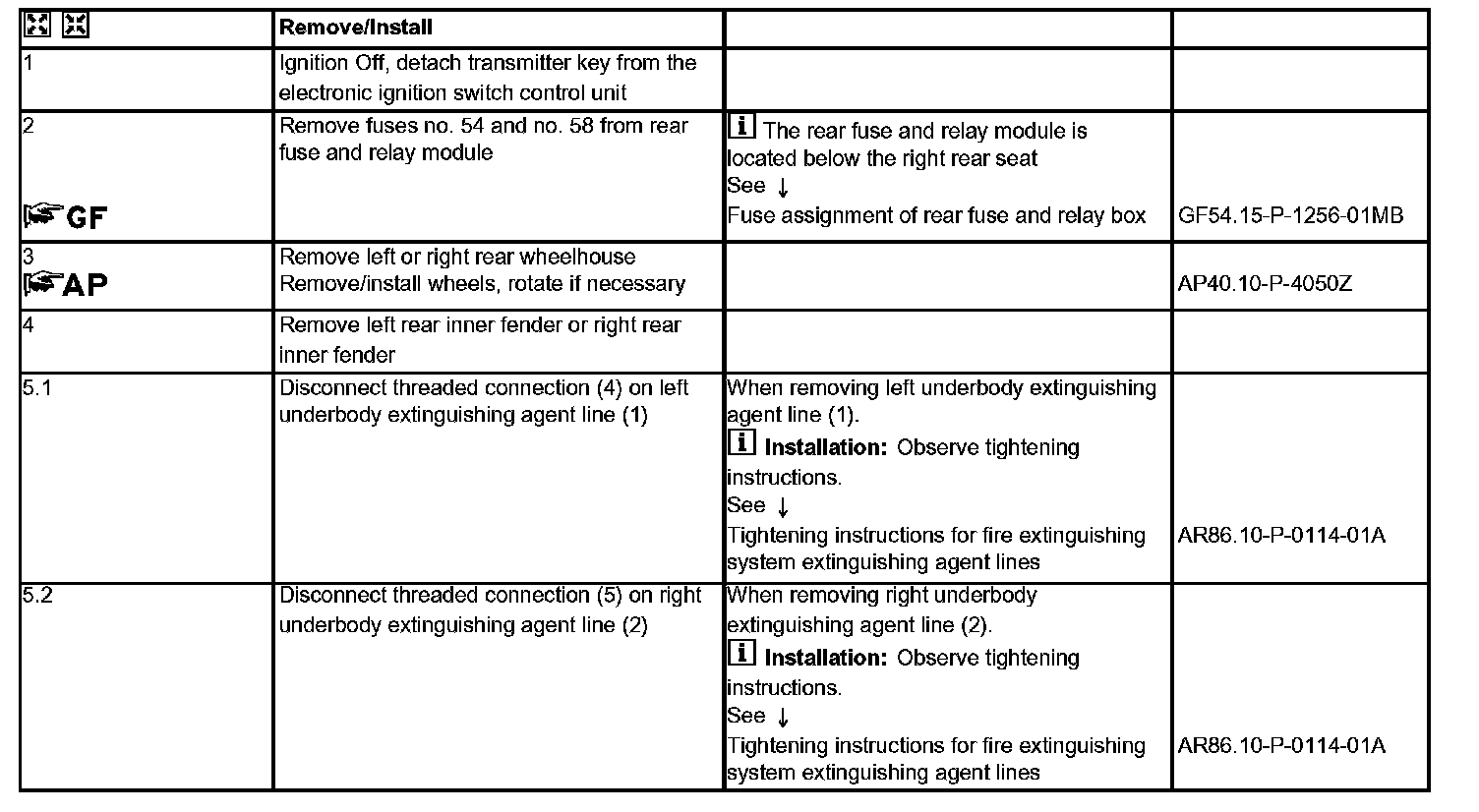

Steps 1 - 5.2:

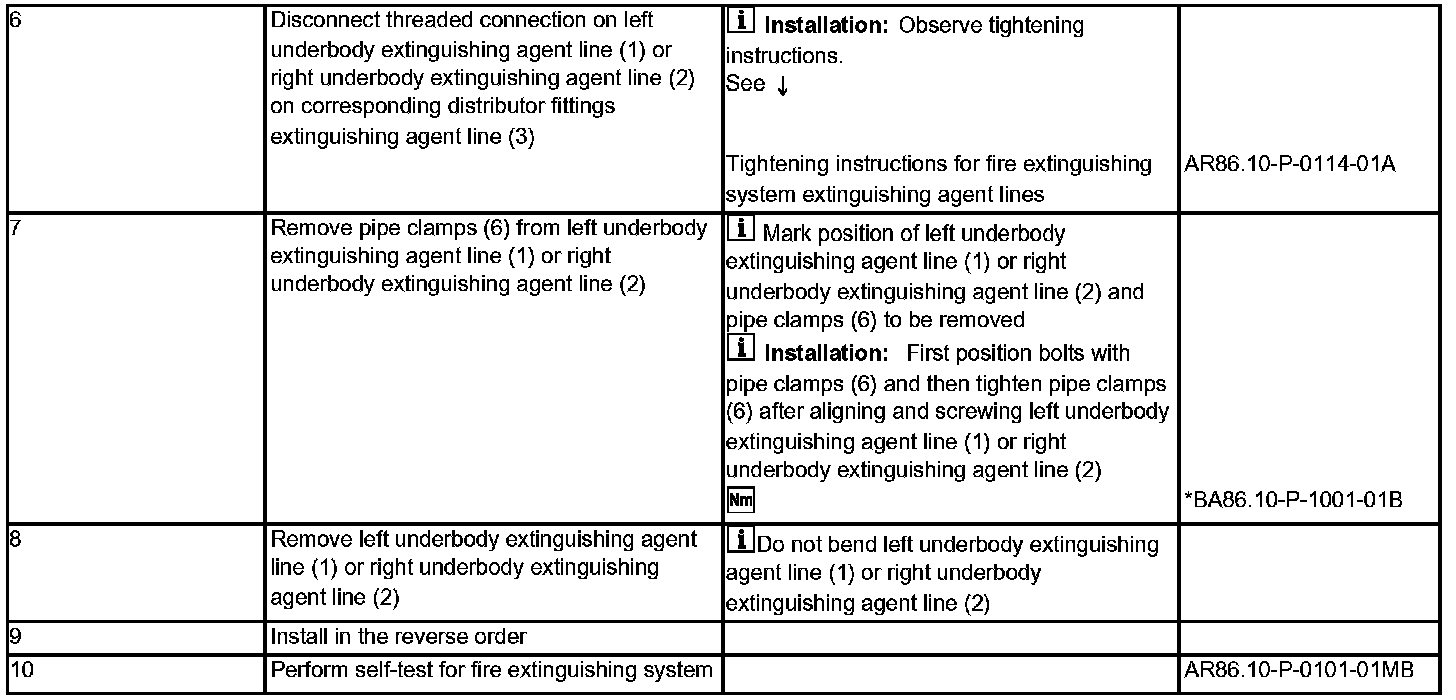

Steps 6 - 10:

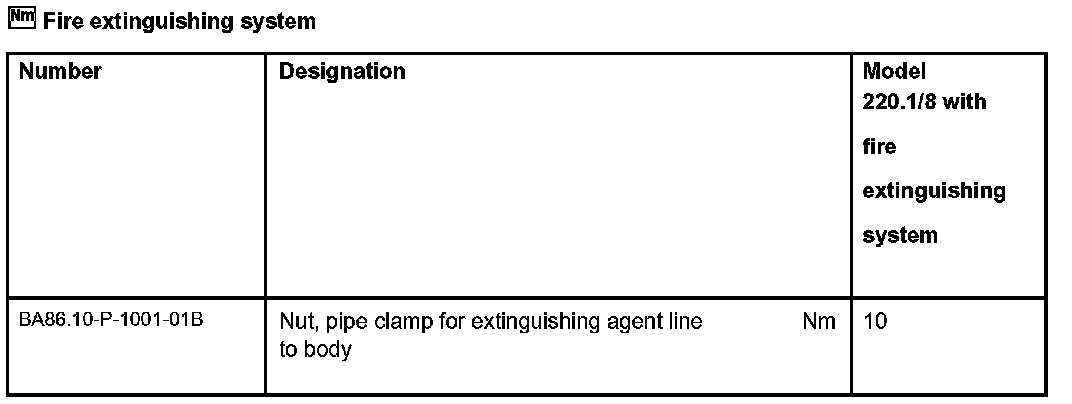

Fire Extinguishing System:
