AR86.10-P-0111MB Remove/Install Extinguishing Agent Line Below Engine



AR86.10-P-0111MB Remove/Install Extinguishing Agent Line Below Engine
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection

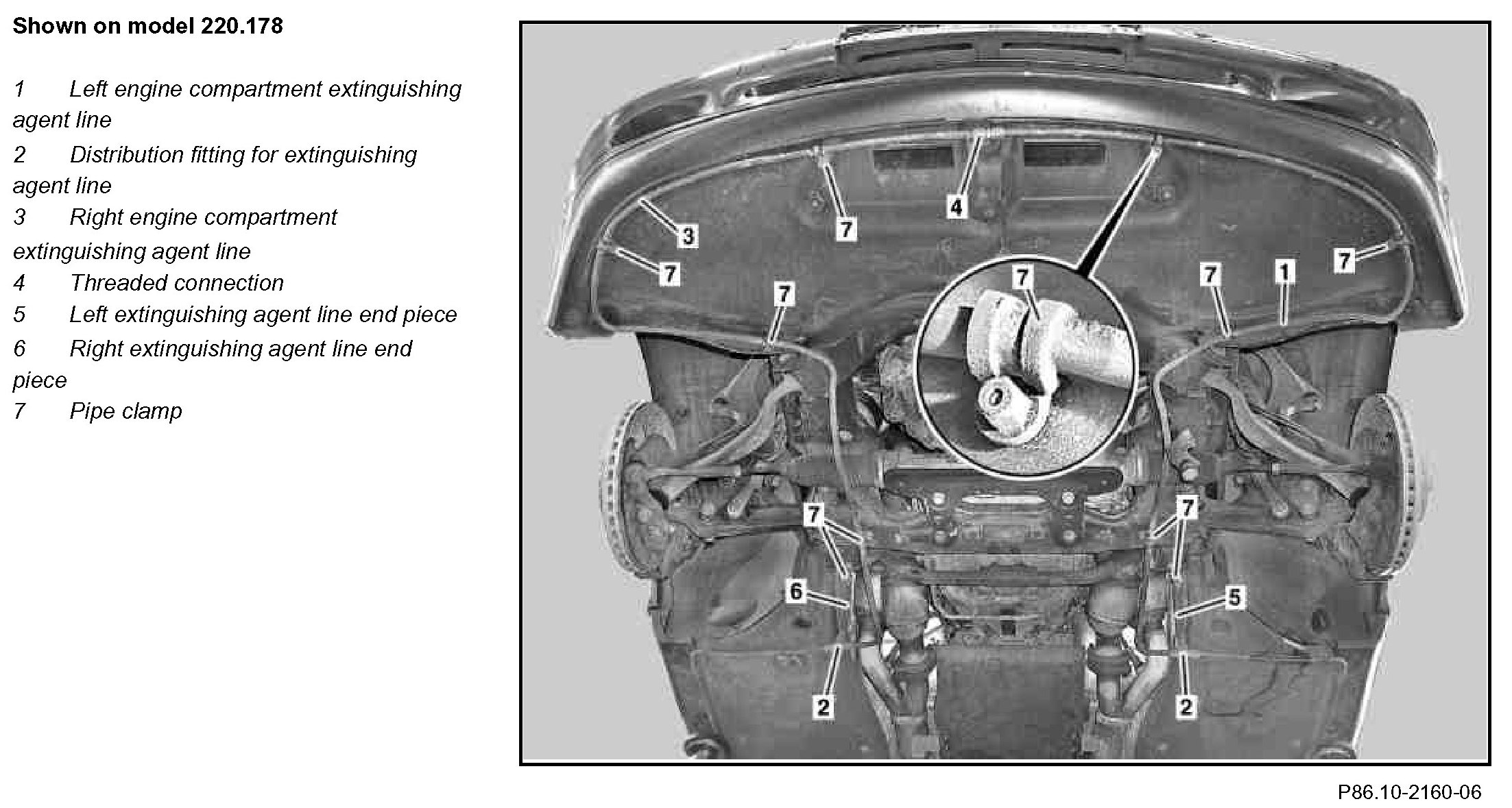

Component Identification:

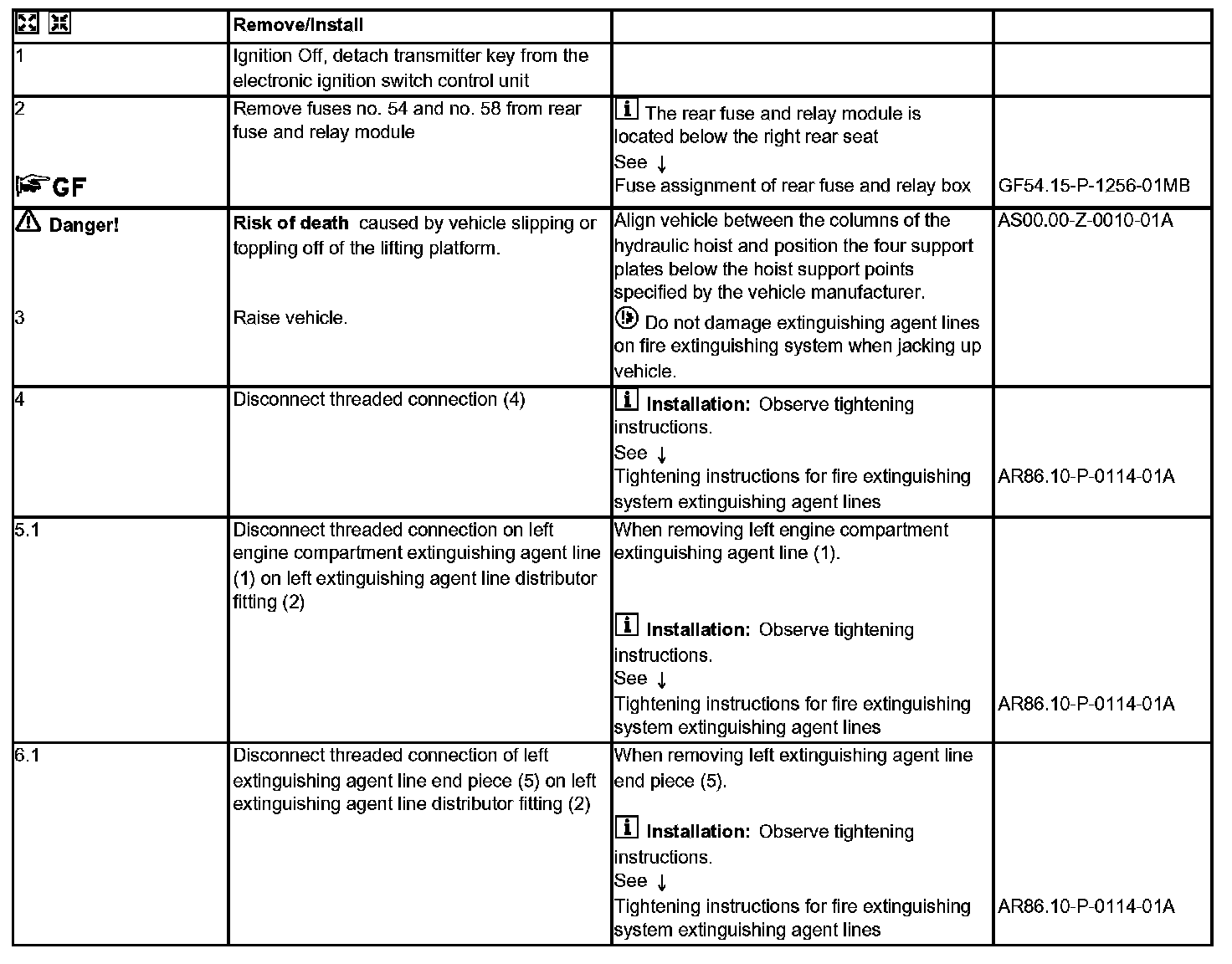

Steps 1 - 6.1:

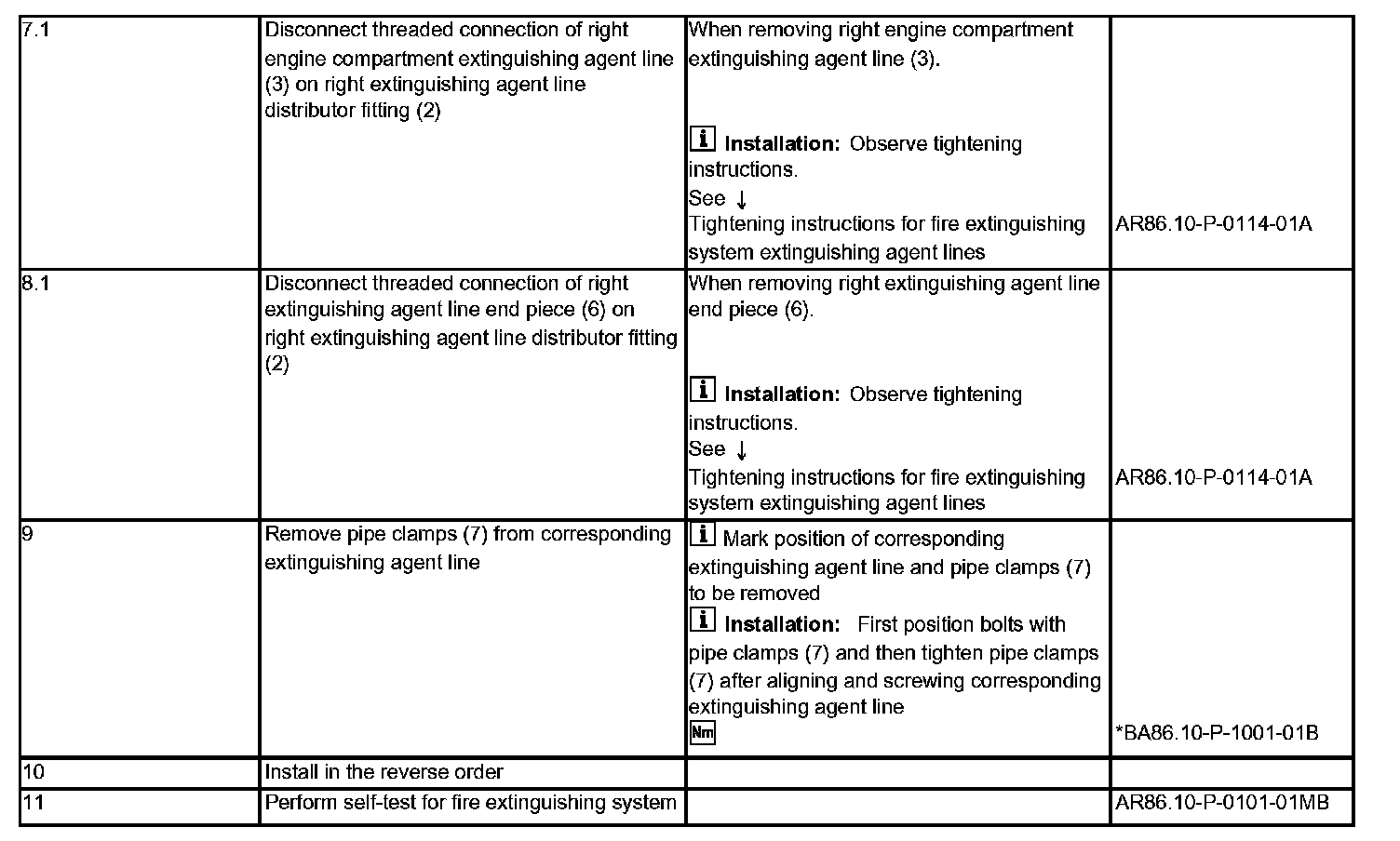

Steps 7.1 - 11:

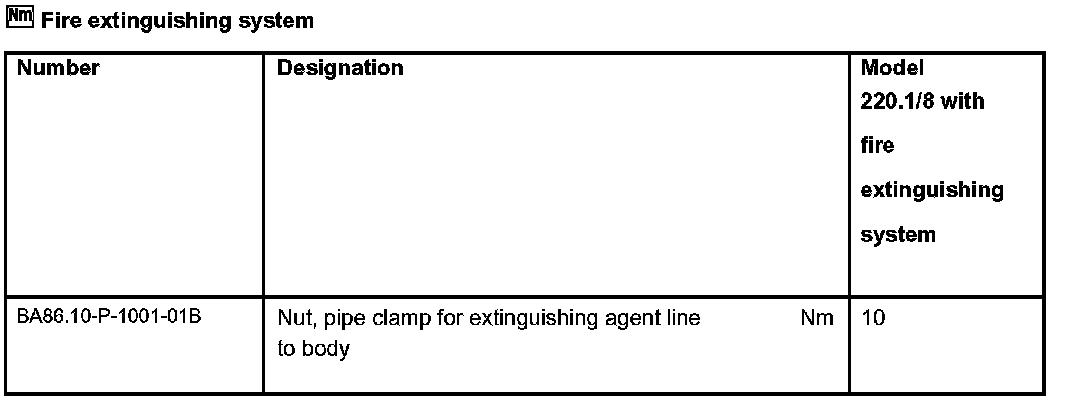

Fire Extinguishing System:
