AR86.10-P-0109MB Remove/Install Extinguishing Agent Line In Left Wheelhouse



AR86.10-P-0109MB Remove/Install Extinguishing Agent Line In Left Wheelhouse
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection

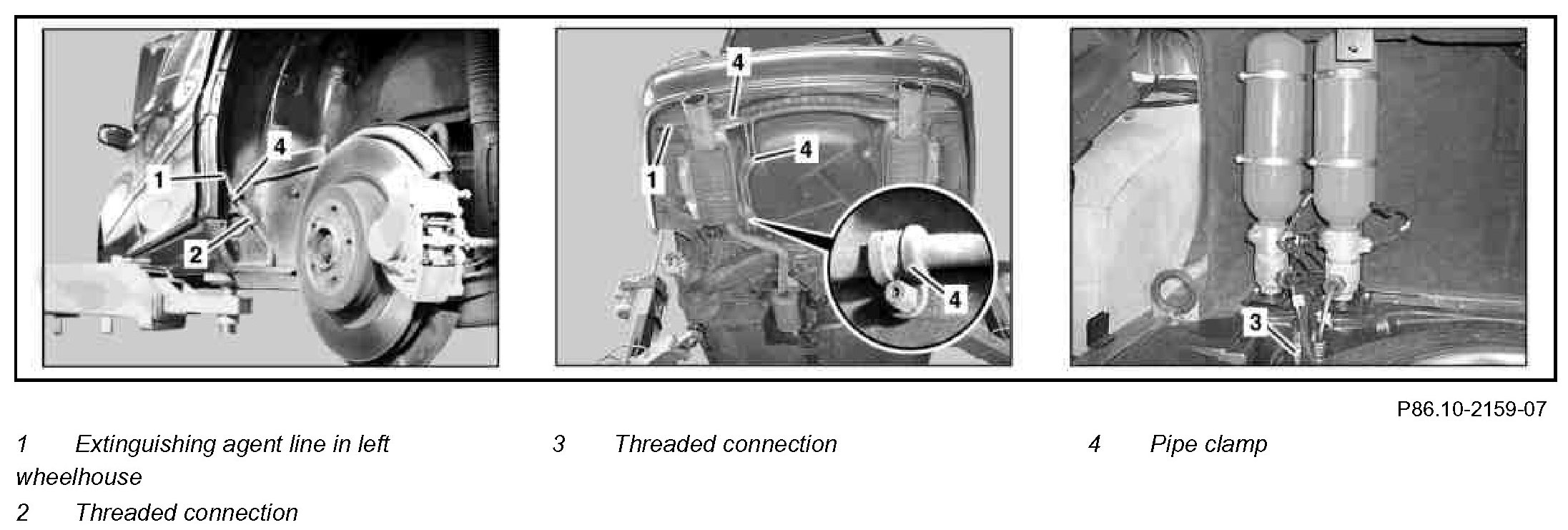

Component Identification:

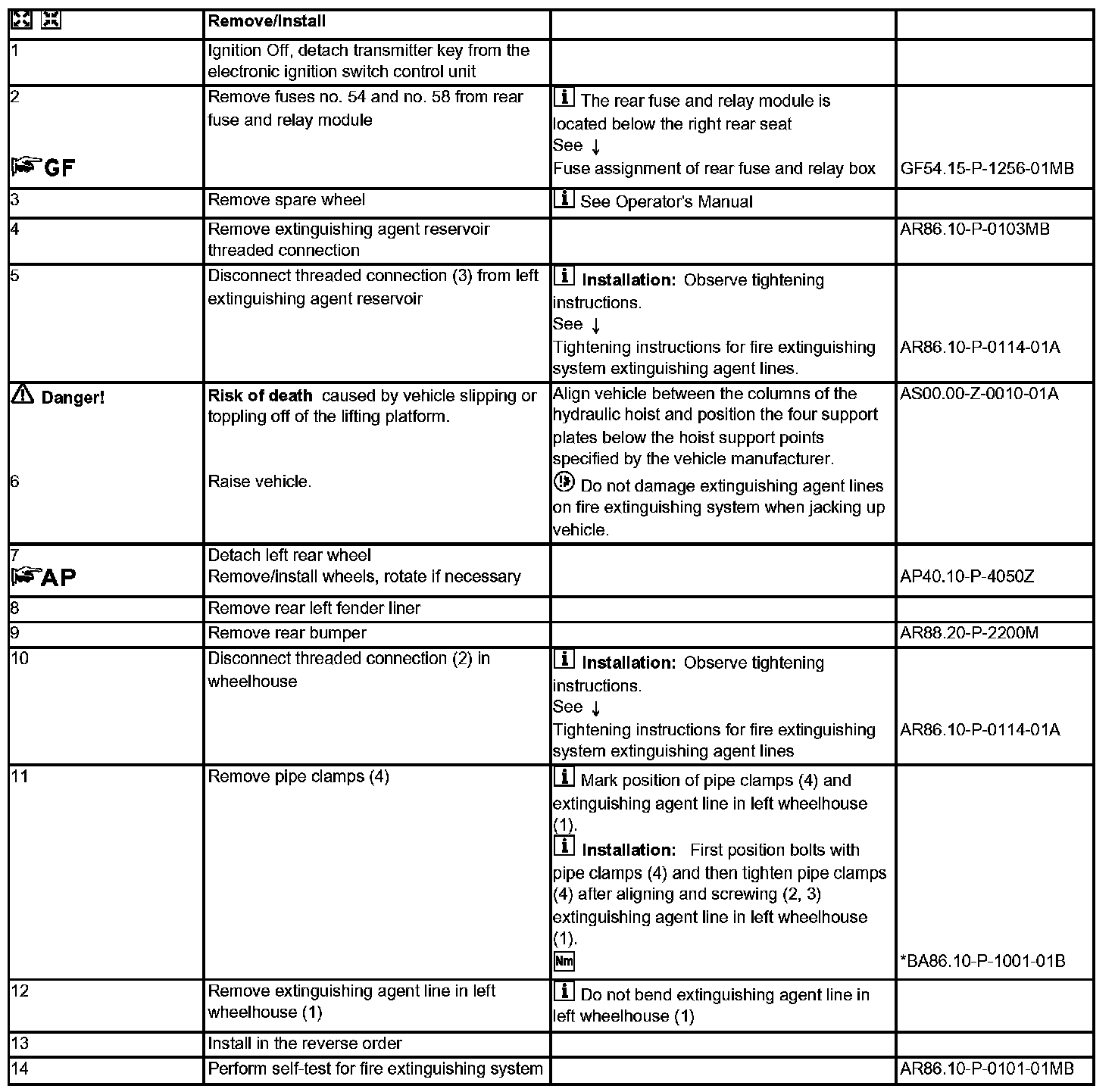

Steps 1 - 14:

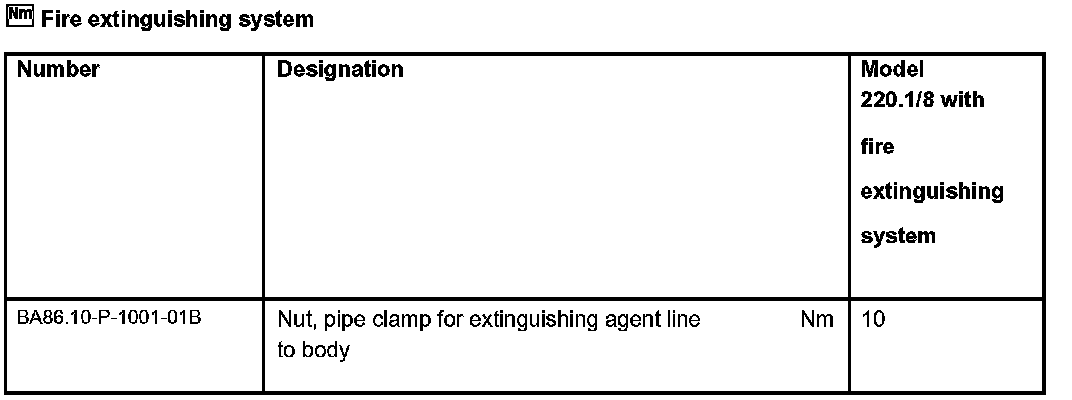

Fire Extinguishing System:
