AR86.10-P-0105MB Remove/Install Fire Extinguishing System Manual Activation Switch



AR86.10-P-0105MB Remove/Install Fire Extinguishing System Manual Activation Switch
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection

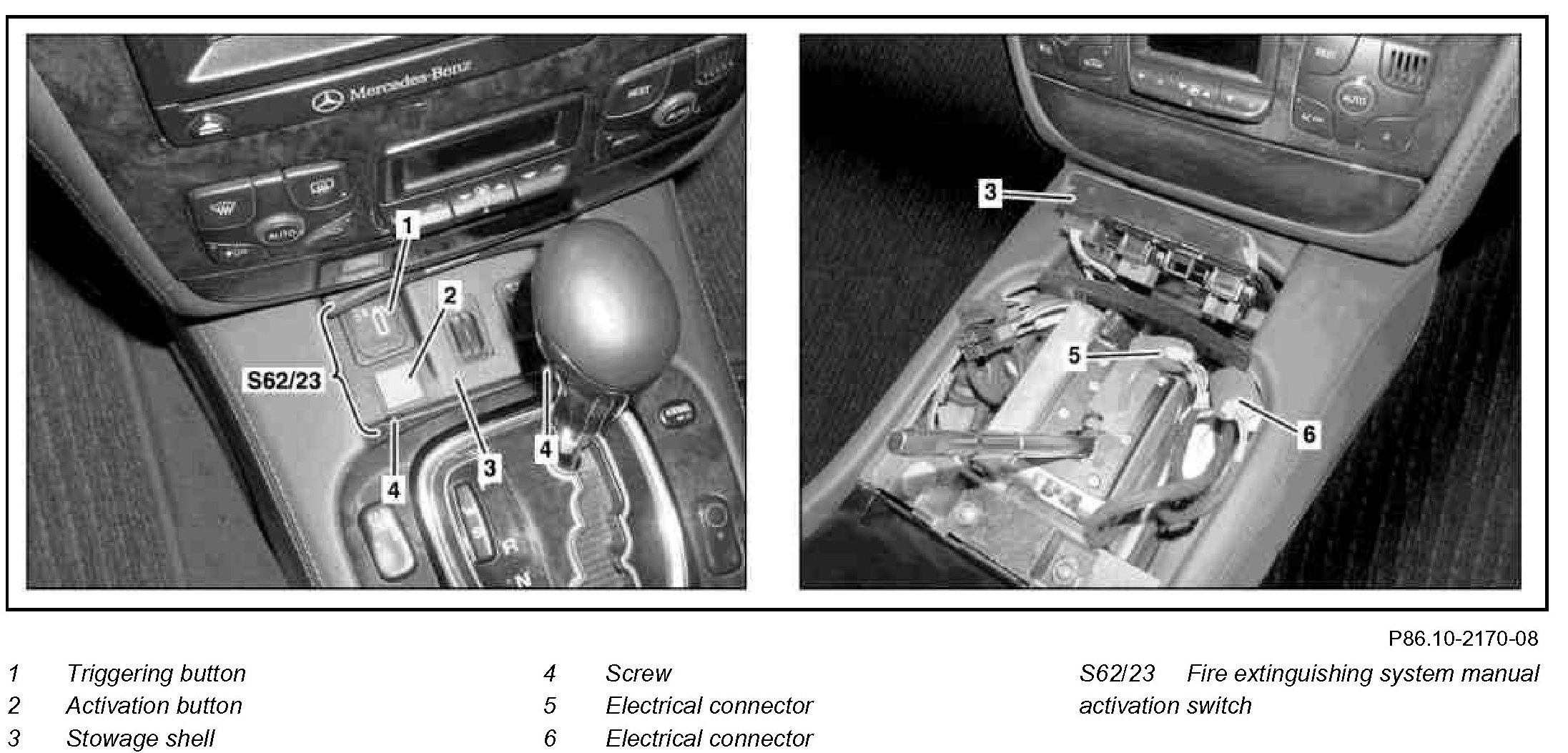

Component Identification:

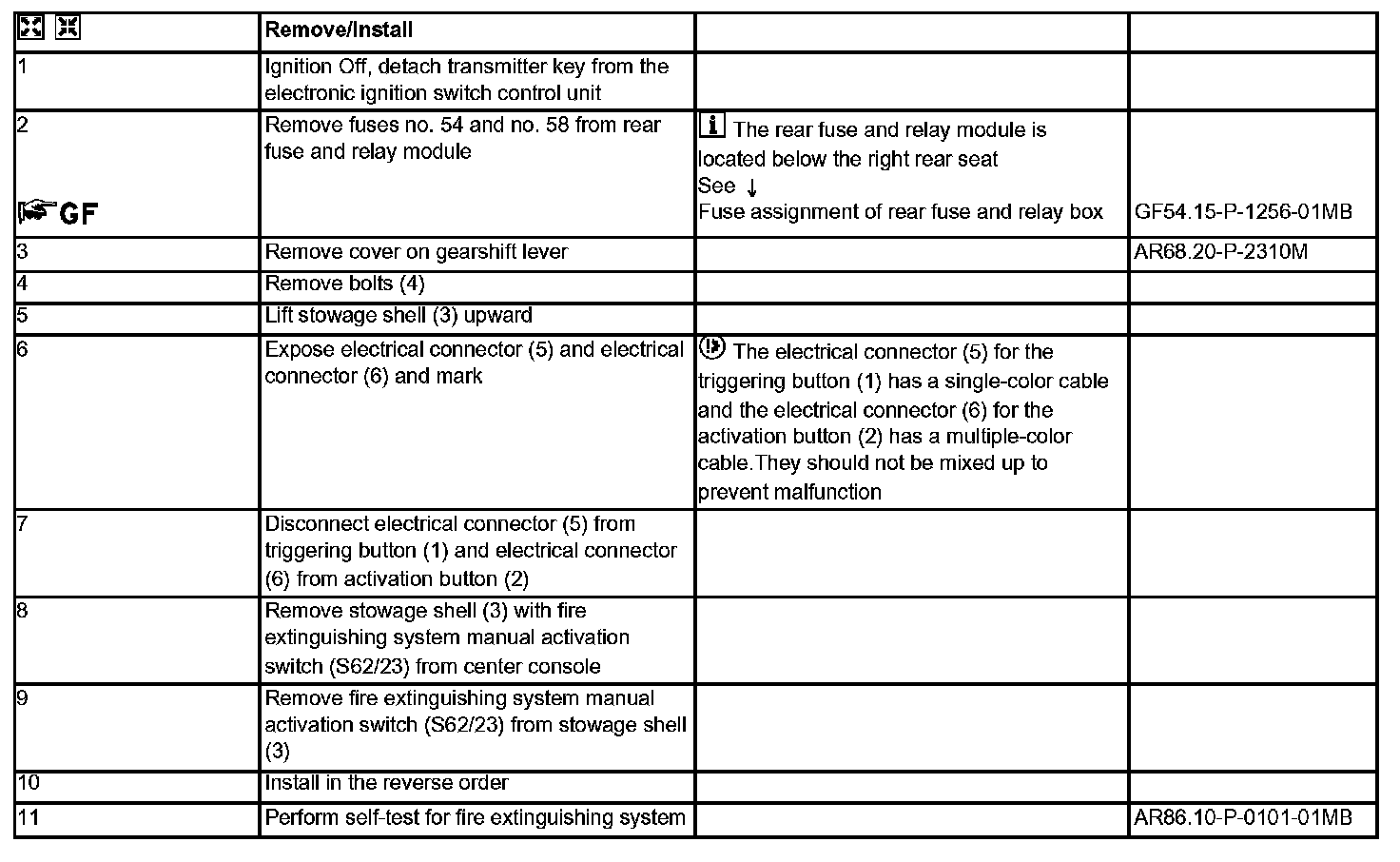

Steps 1 - 11:
