AR86.10-P-0102MBA Remove/Install Fire Extinguishing System Motor Temperature Sensor



AR86.10-P-0102MBA Remove/Install Fire Extinguishing System Motor Temperature Sensor
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection

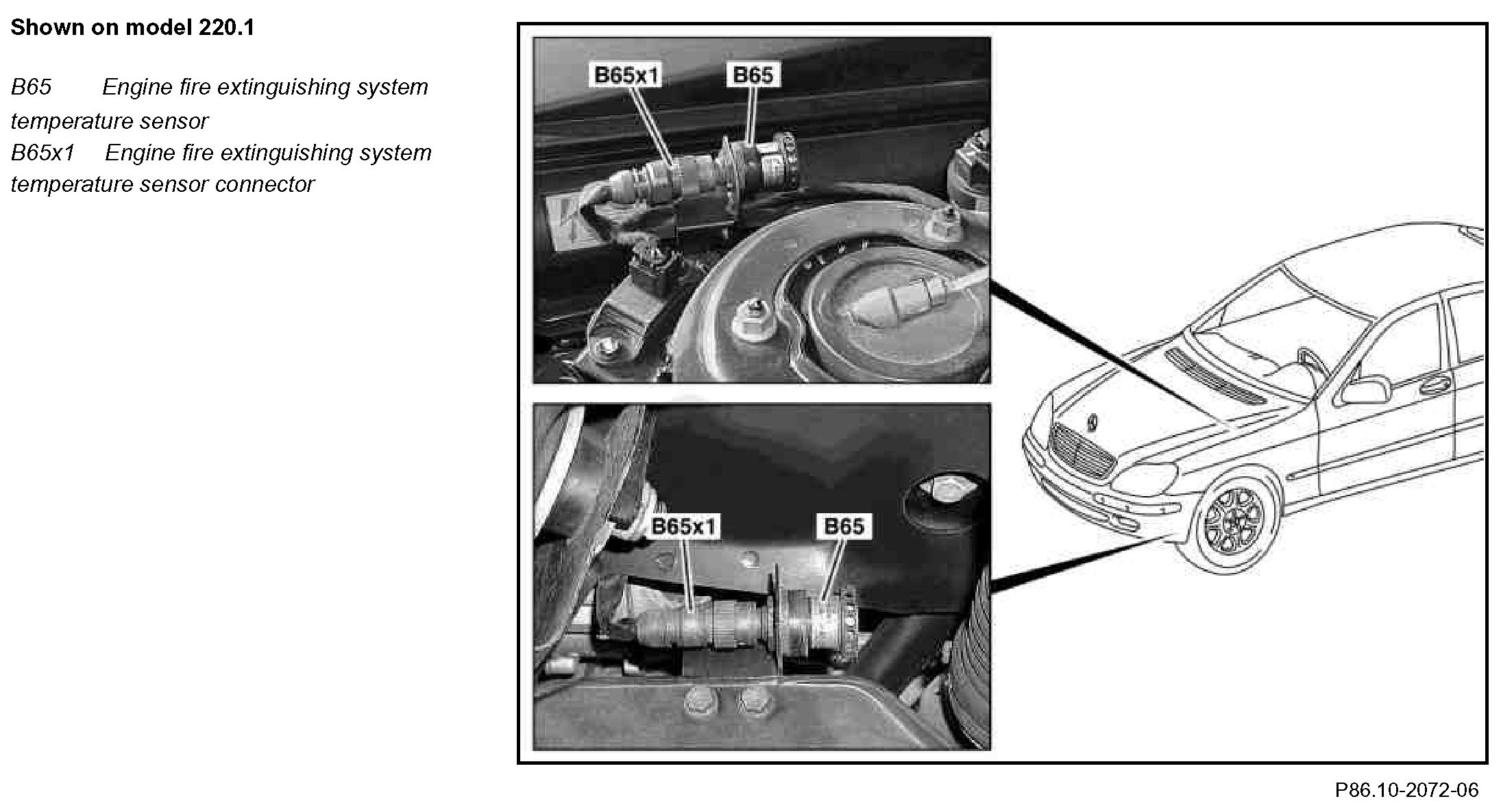

Component Identification:

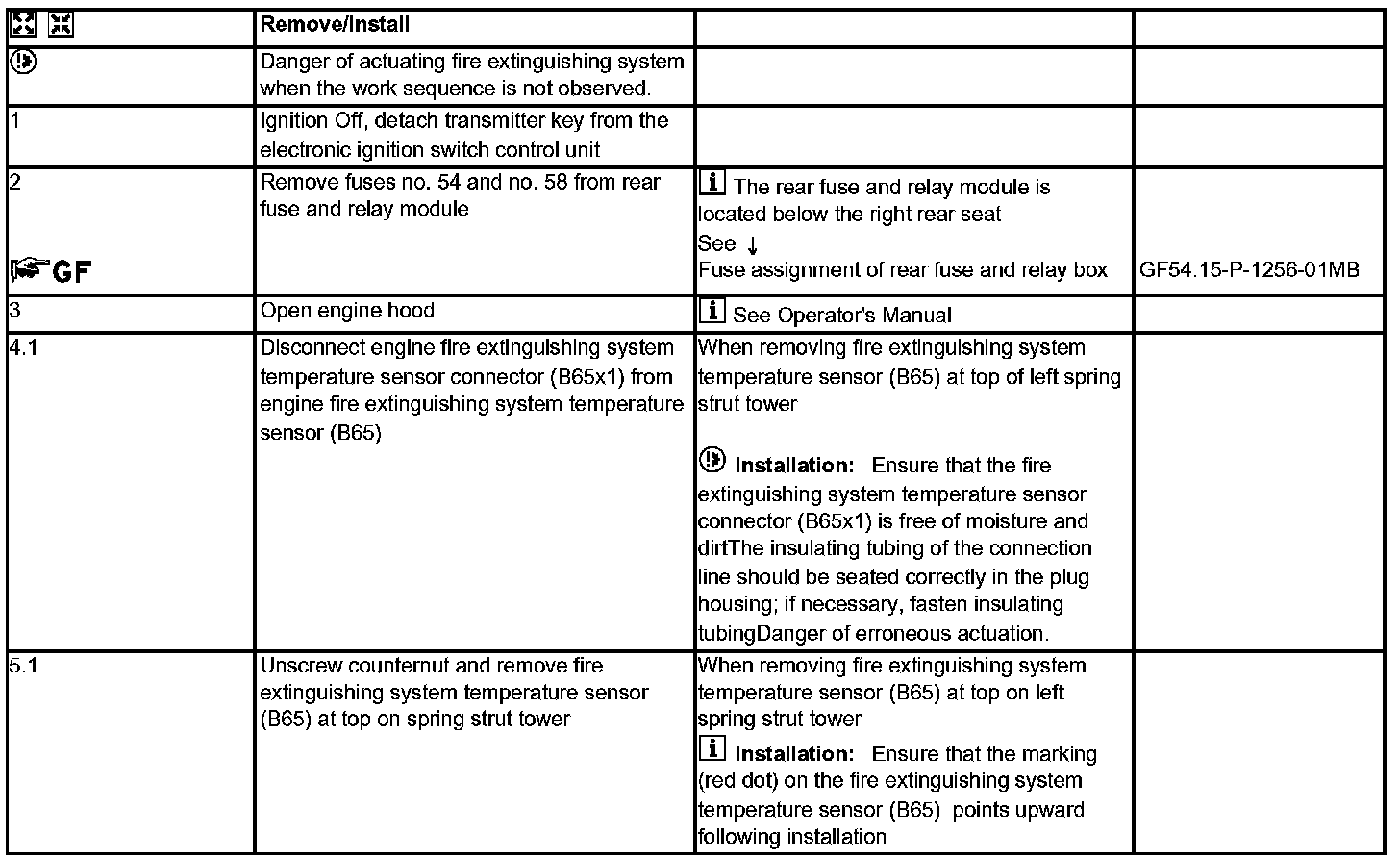

Steps 1 - 5.1:

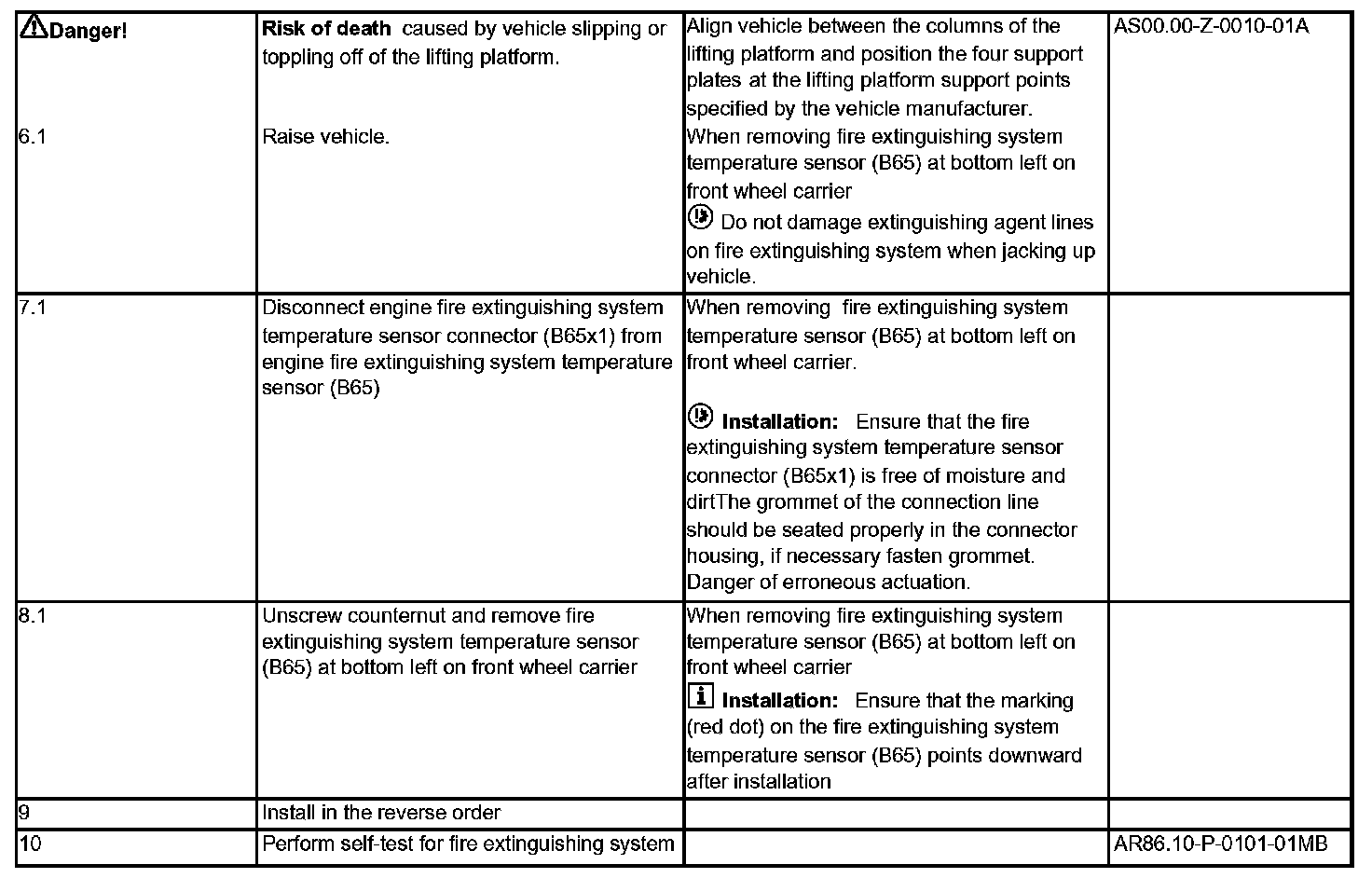

Steps 6.1 - 10:
