AR86.10-P-0101MB Remove/Install Fire Extinguishing System Control Unit



AR86.10-P-0101MB Remove/Install Fire Extinguishing System Control Unit
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection

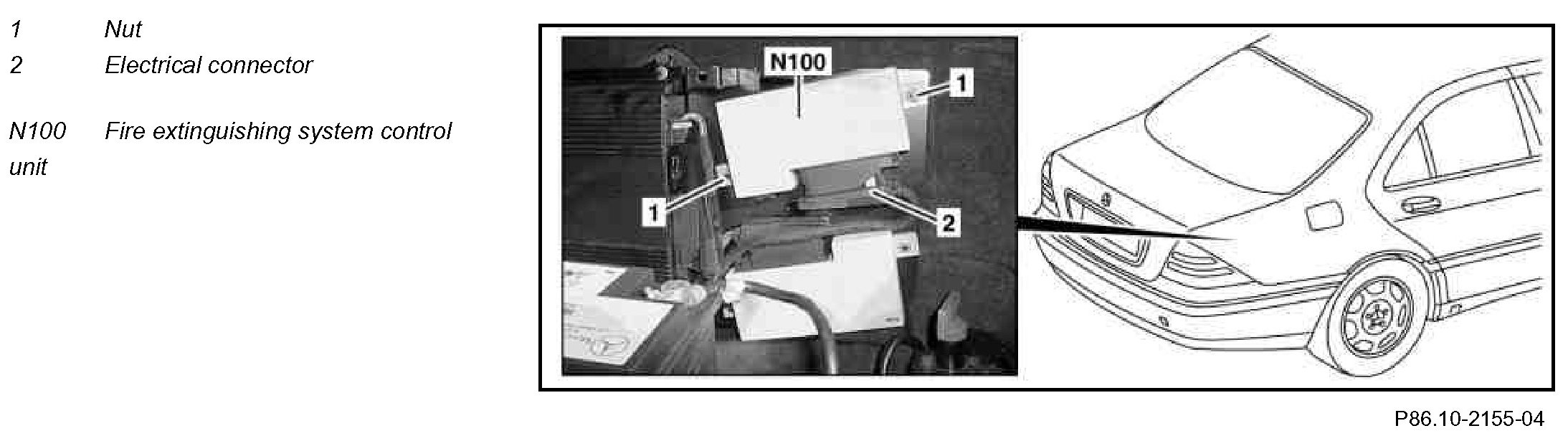

Component Identification:

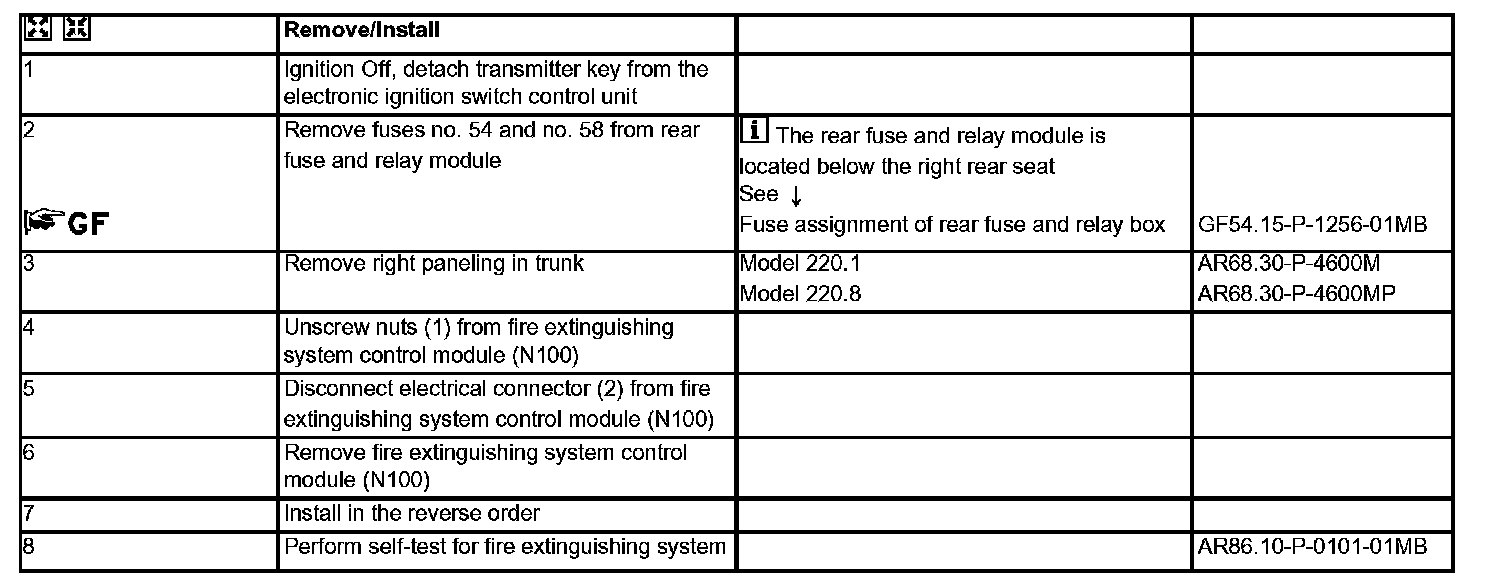

Steps 1 - 8:
