AN86.10-P-0001M Retrofit Fire Extinguisher



AN86.10-P-0001M Retrofit Fire Extinguisher

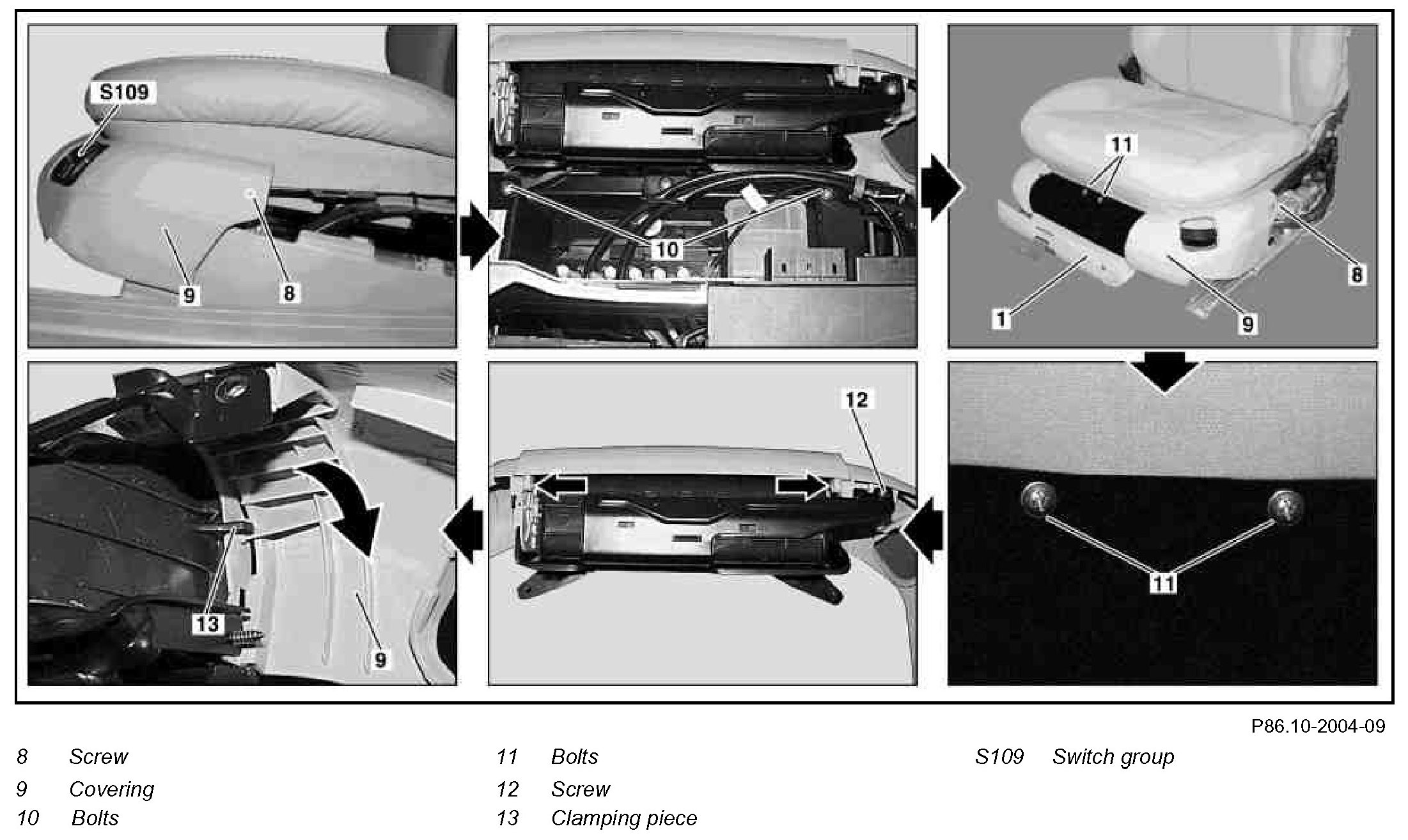

Component Identification:

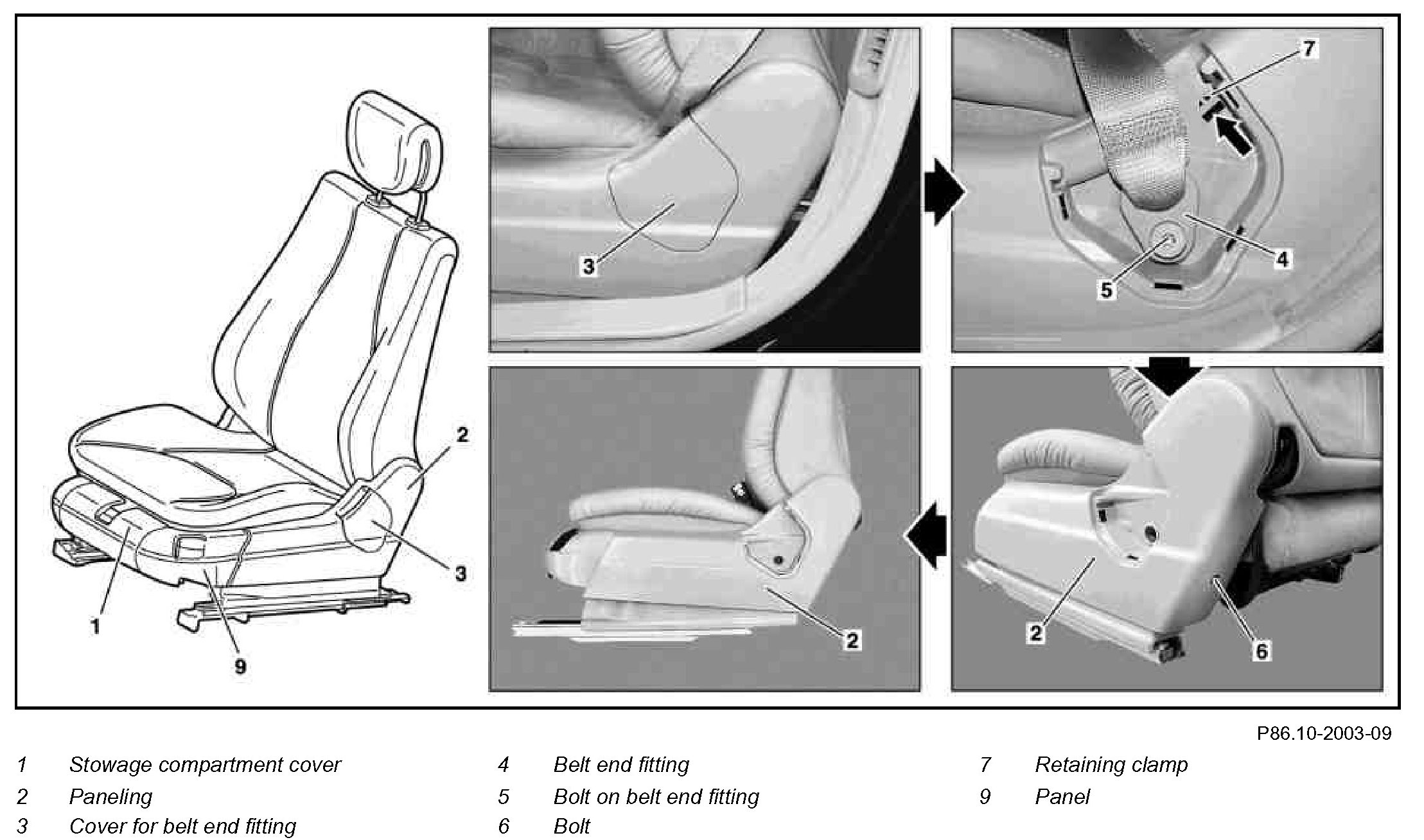

Component Identification:

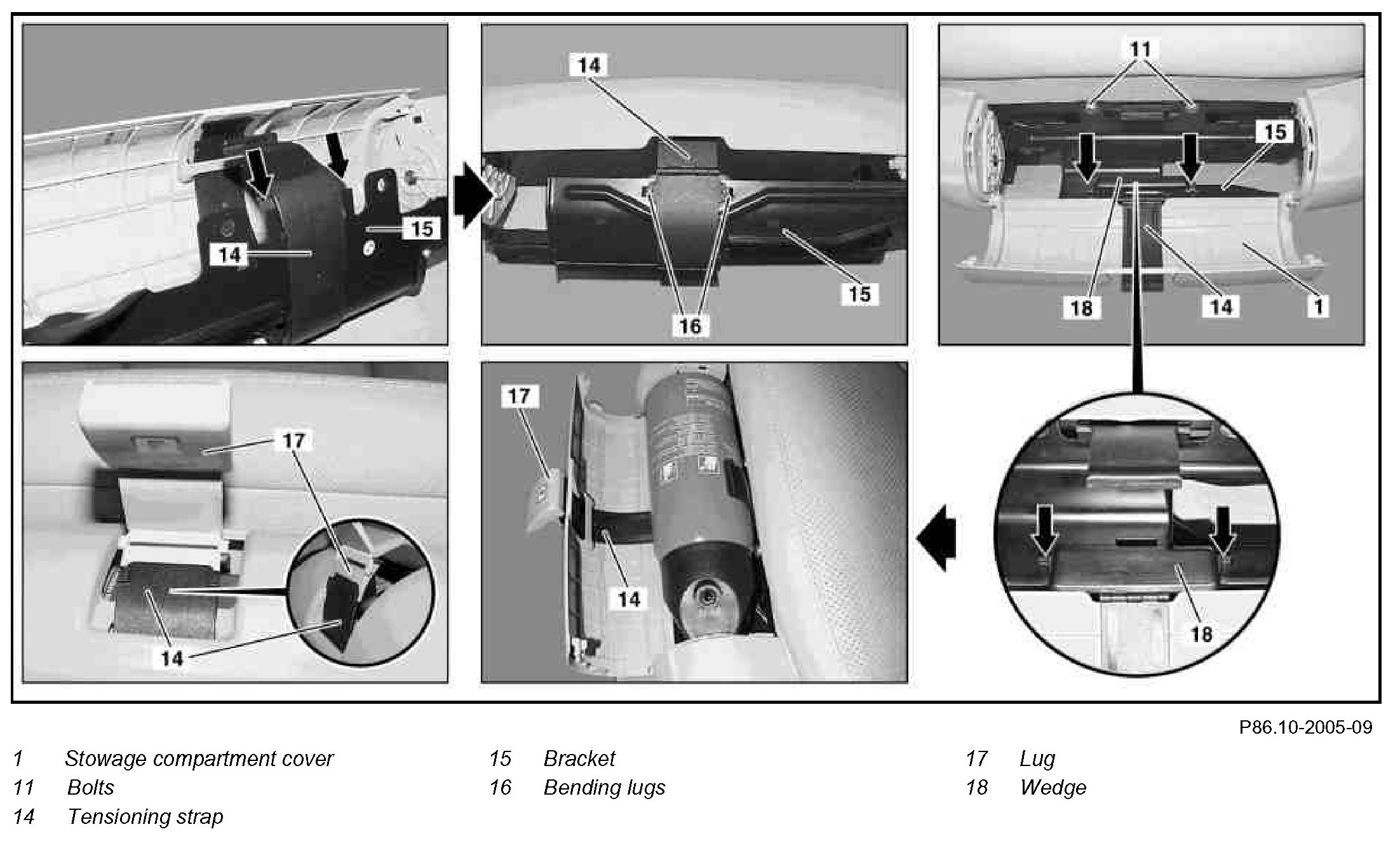

Component Identification:

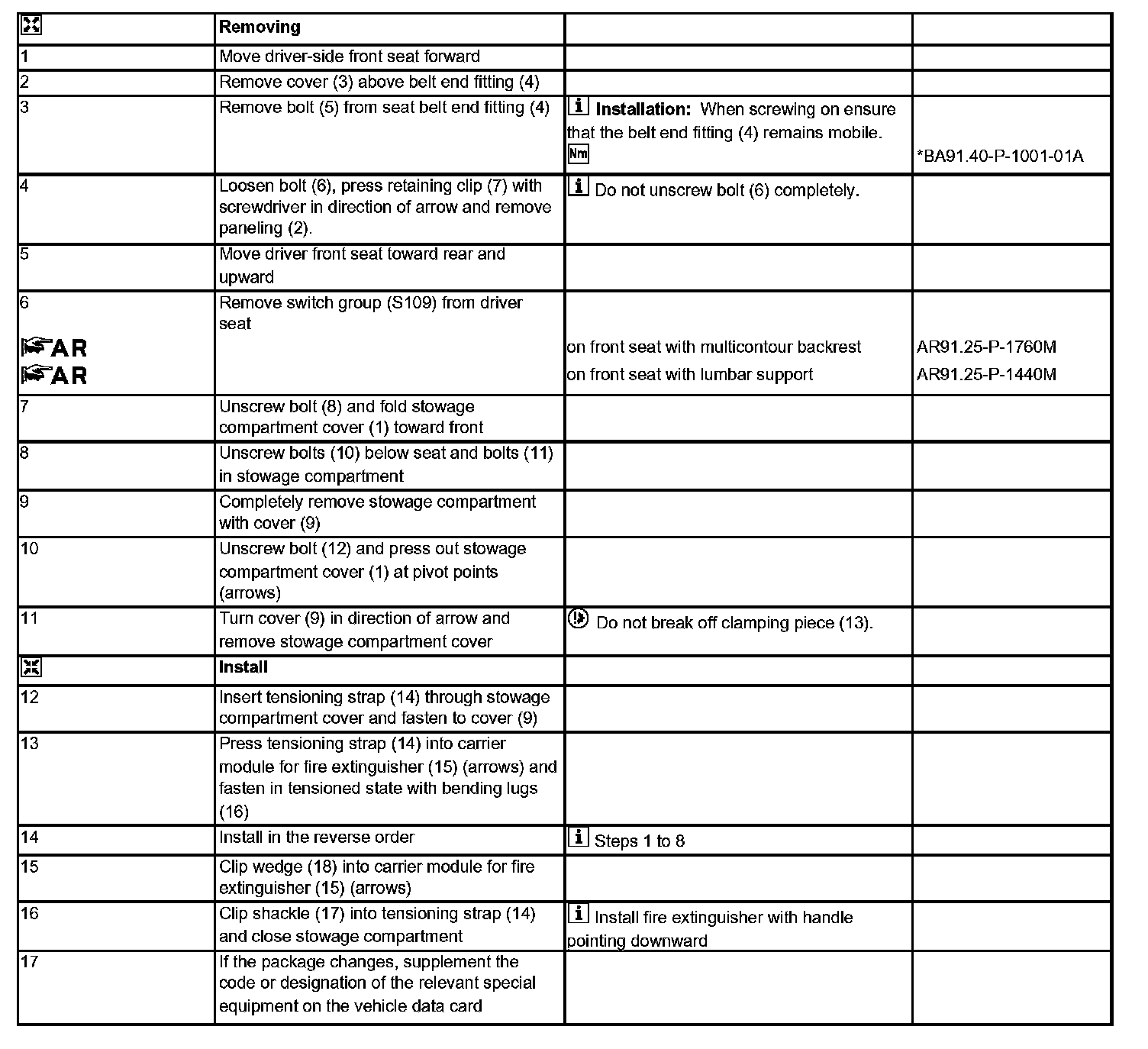

Steps 1 - 17:

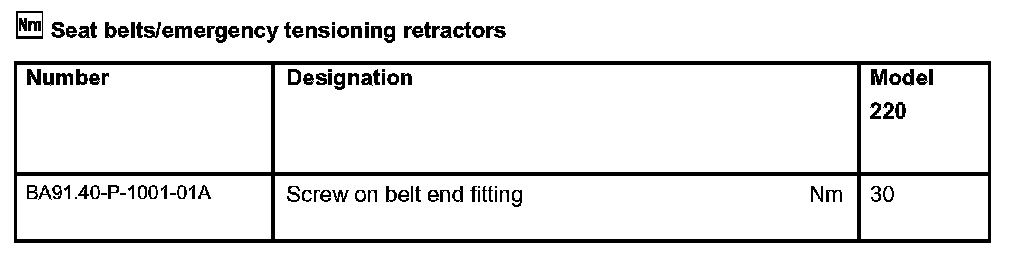

Seat Belts/Emergency Tensioning Retractors:

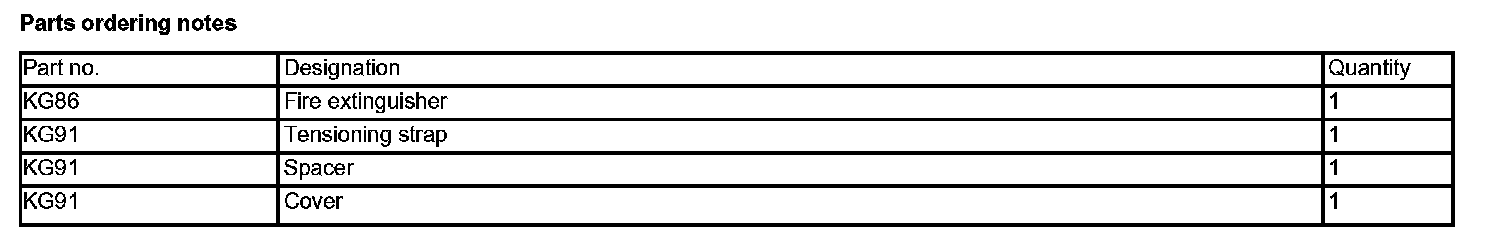

Parts Ordering Notes:
