AR82.70-P-8918M Remove/Install Bracket For Portable CTEL

AR82.70-P-8918M Remove/Install Bracket For Portable CTEL
- with CODE (852) CTEL preinstallation assembly at dome
- with CODE (854) MB portable CTEL

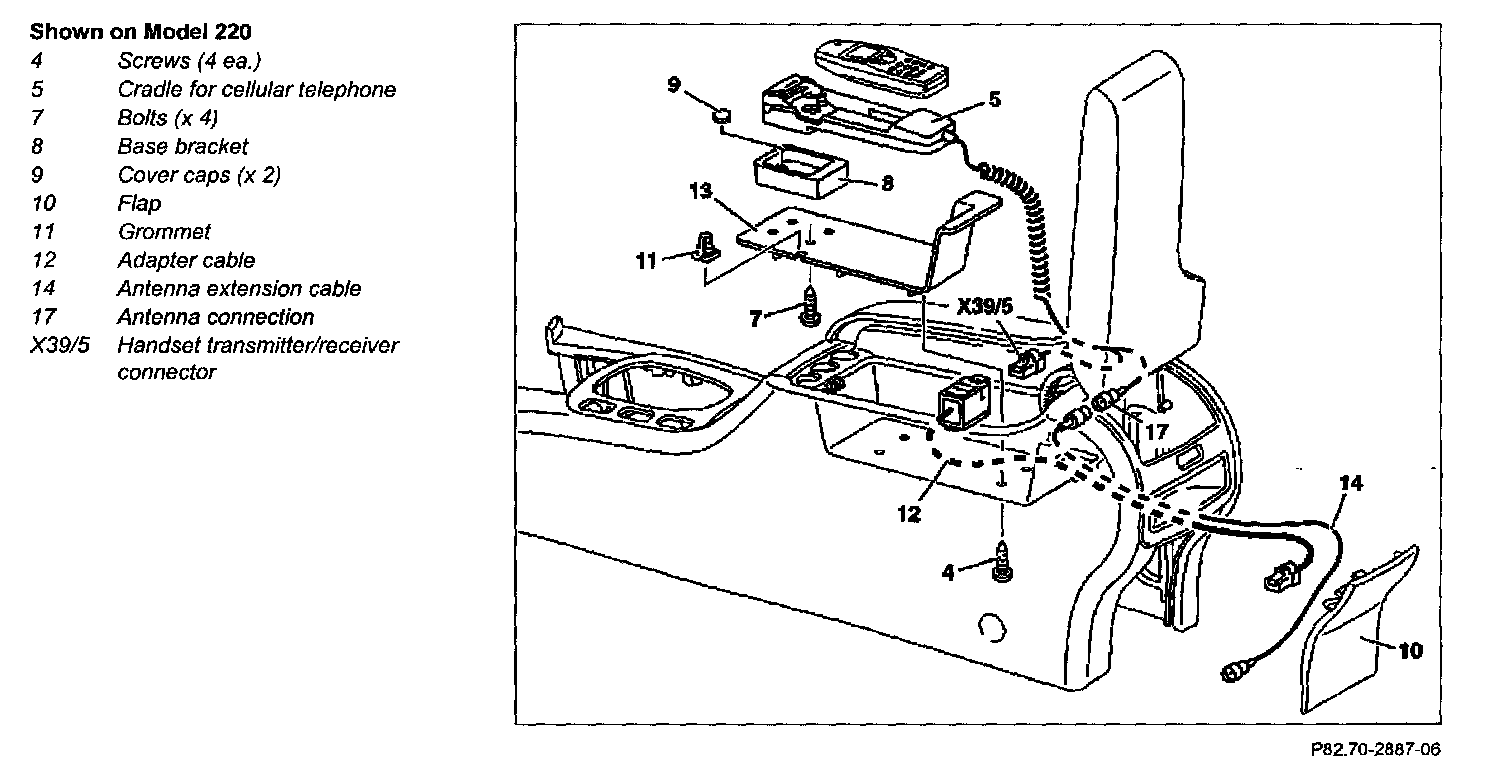

Shown On Model 220:

1 Remove cellular telephone from cradle (5)
2 Open stowage shell and unscrew screws (4)
3 Open flap (10) at rear on center console
4 Separate handset transmitter/receiver connector (X39/5) and antenna connection (17)
5 Carefully pull plate (3) out of stowage shell

NOTE: Carefully pull connection leads through passage in stowage compartment.

6 Unscrew the bolts (7).
7 Disconnect and remove adapter lead (12) and antenna extension lead (14)
8 Install in the reverse order.
