AR82.70-P-8915M Remove/Install Handset In Stowage Compartment

AR82.70-P-8915M Remove/Install Handset In Stowage Compartment Armrest or Stowage Compartment
- with CODE (853) MB standard cellular telephone







Removing, Installing

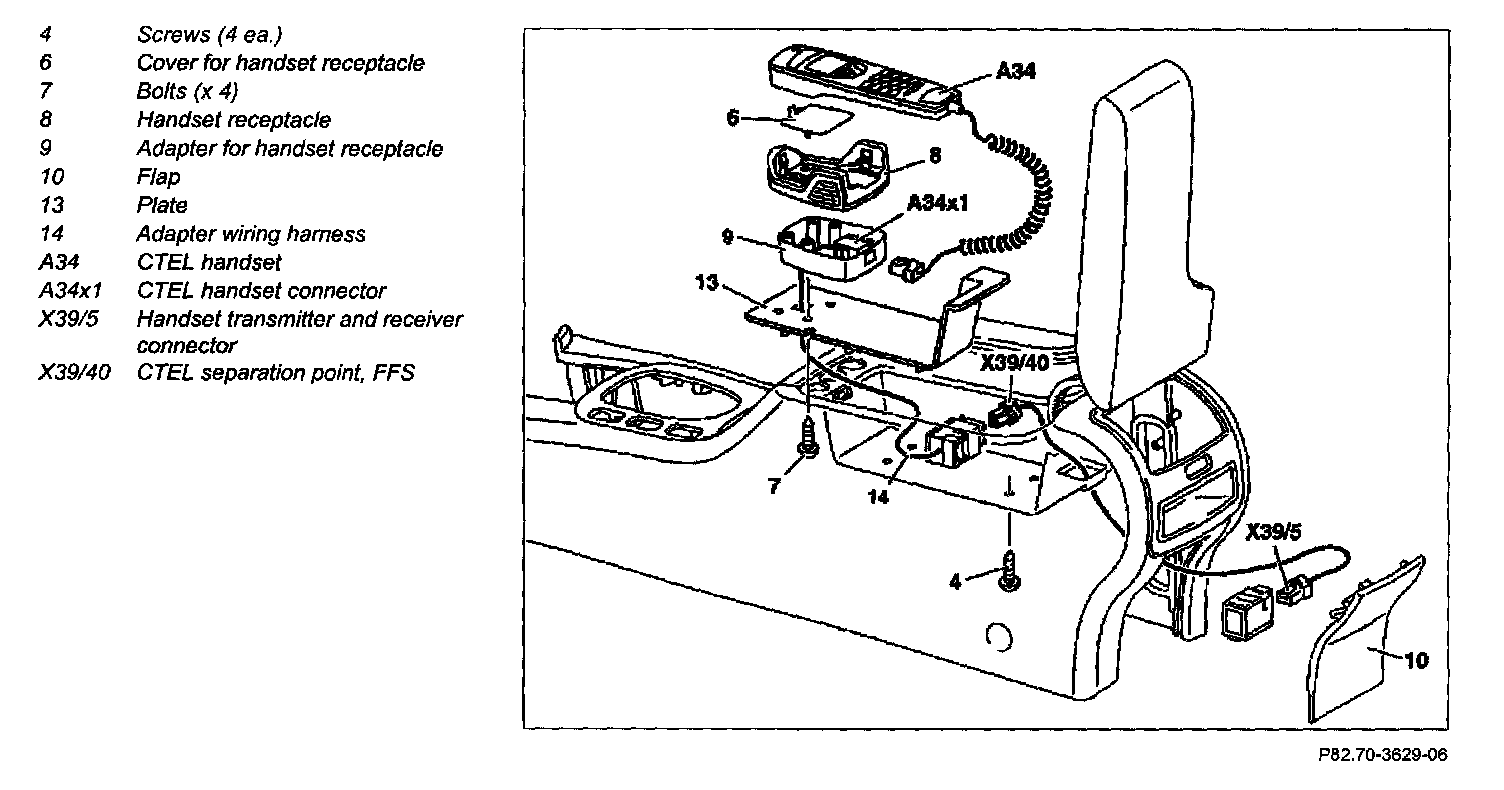

1 Open stowage shell and unscrew screws (4)
2 Disconnect CTEL handset connector (A34x1)
3 Remove CTEL handset (A34) from handset receptacle (8)
4 Open flap (10) at rear of center console and disconnect handset transmitter/receiver connector (X39/5)
5 Carefully pull plate (3) out of stowage shell

NOTE: Carefully pull connection lead trough passage in stowage shell.

6 Unscrew the bolts (7).
7 Remove adapter for handset receptacle (9) and handset receptacle (8)
8 Install in the reverse order.
