AR82.70-P-0010AE Remove/Install GSM 1800 MHz Network Compensator

AR82.70-P-0010AE Remove/Install GSM 1800 MHz Network Compensator
- with CODE (854) MB cellular telephone







1 Connect quiescent current retention unit
- See "Commercially Available Tools" below.

DANGER:
- Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead acid batteries.
- No fire, sparks, naked flames or smoking. Wear acid-protective gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers.

2 Disconnect ground cable of battery.
3 Remove rear shelf

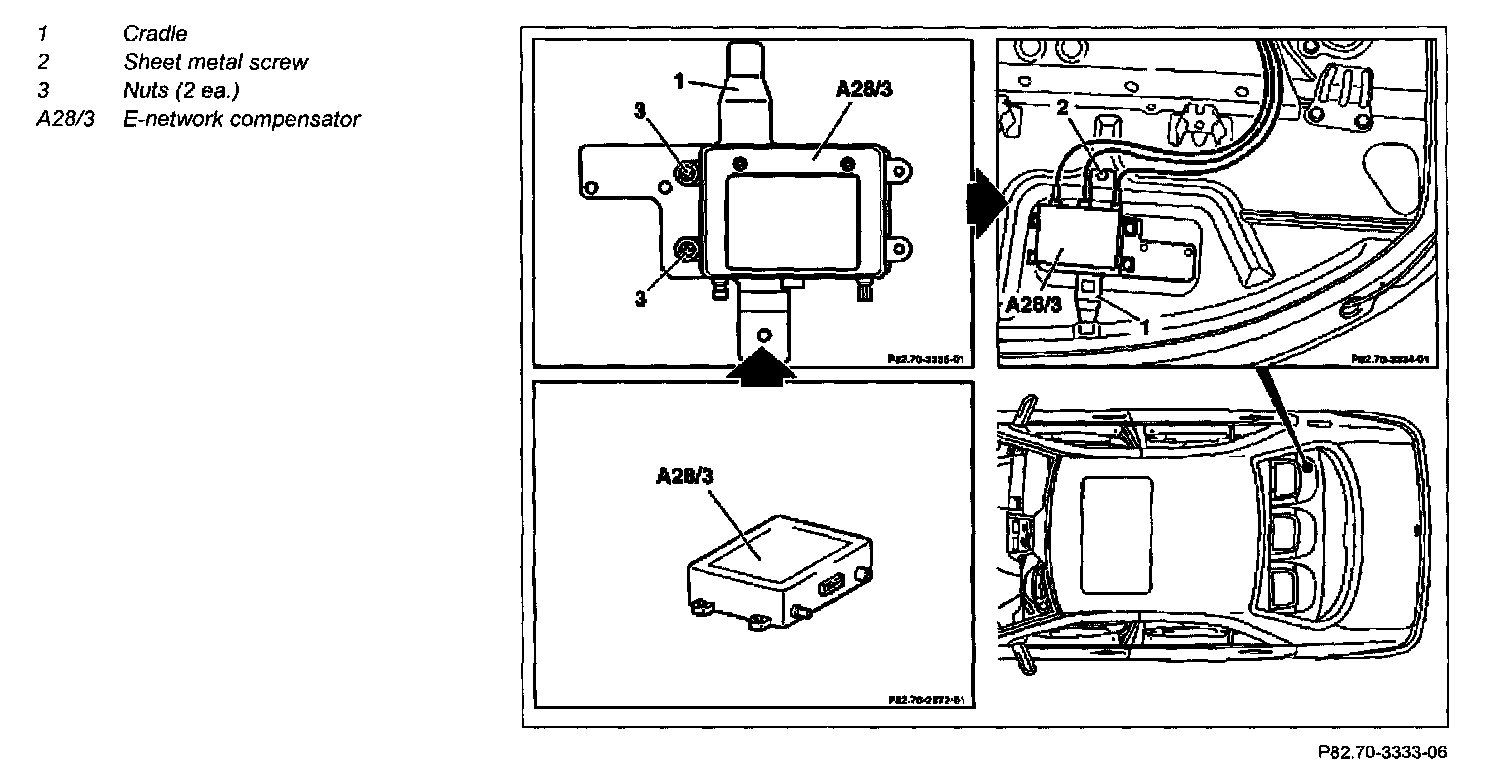

4 Release connector on E-network compensator (A28/3) and disconnect
5 Disconnect antenna connections
6 Unscrew nut (3)
7 Remove E-network compensator (A28/3)
8 Install in the reverse order.

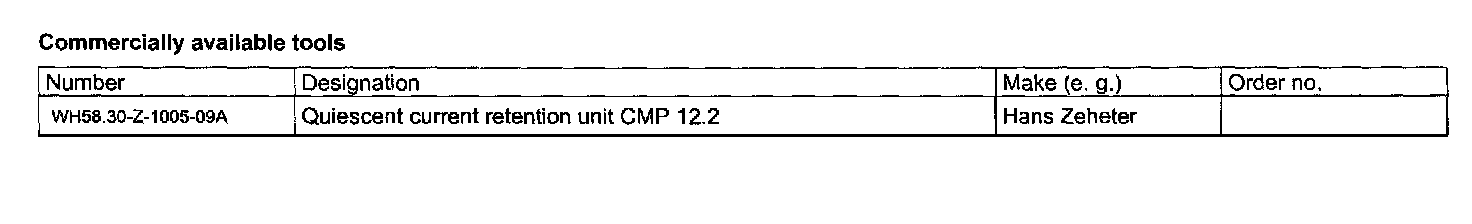

Commercially Available Tools

Commercially Available Tools:
