AR72.10-P-1905MB Remove/Install Sealing For Crank Window on Front Door



AR72.10-P-1905MB Remove/Install Sealing For Crank Window on Front Door
- Outer sealing
- with CODE (Z07) Top protection

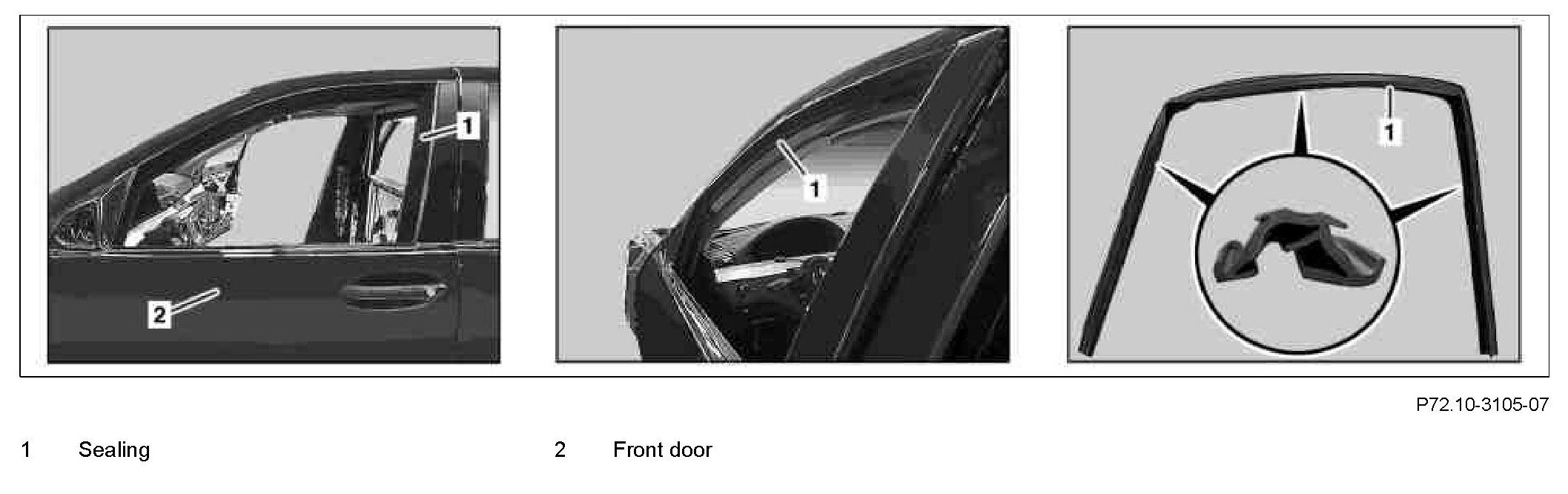

Component Identification:

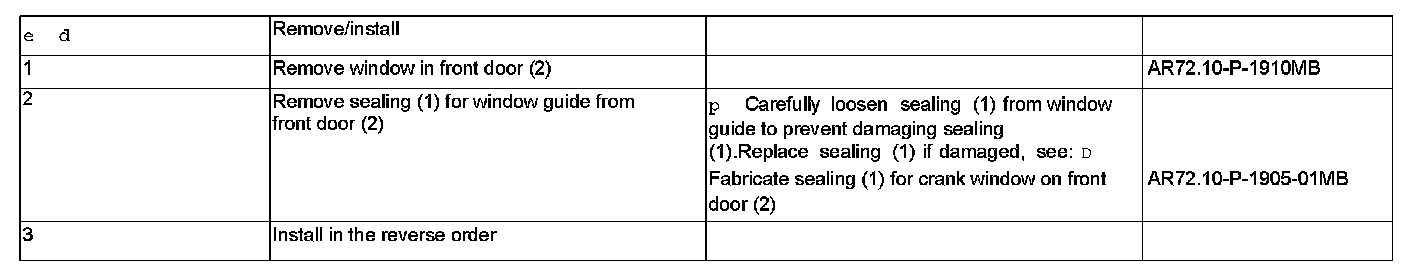

Steps 1 - 3:
