AR35.30-P-0620IM Remove/Install Rear Axle Shaft
AR35.30-P-0620IM Remove/install rear axle shaft
- with plug-in rear axle shafts

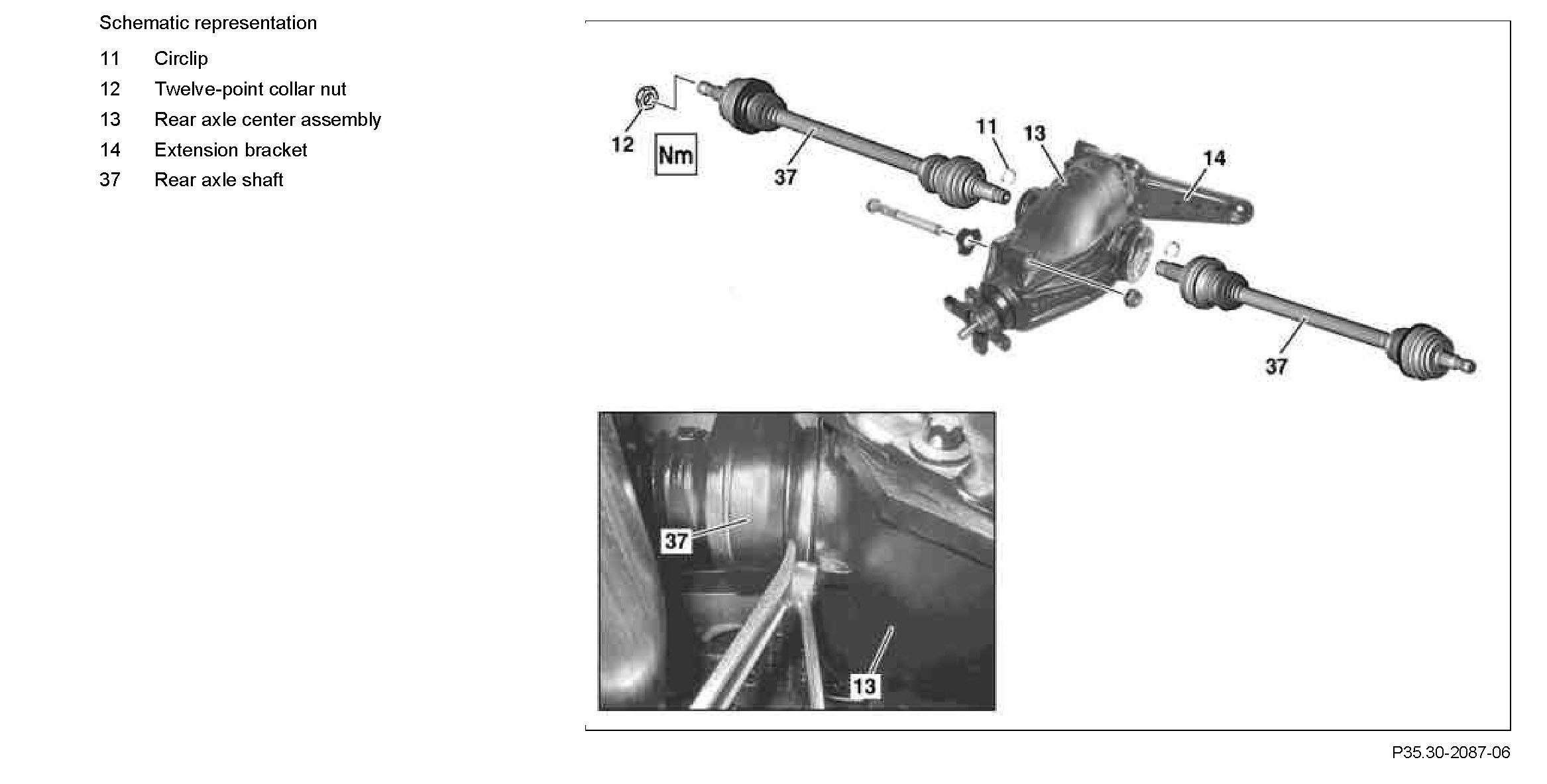

Component Identification:

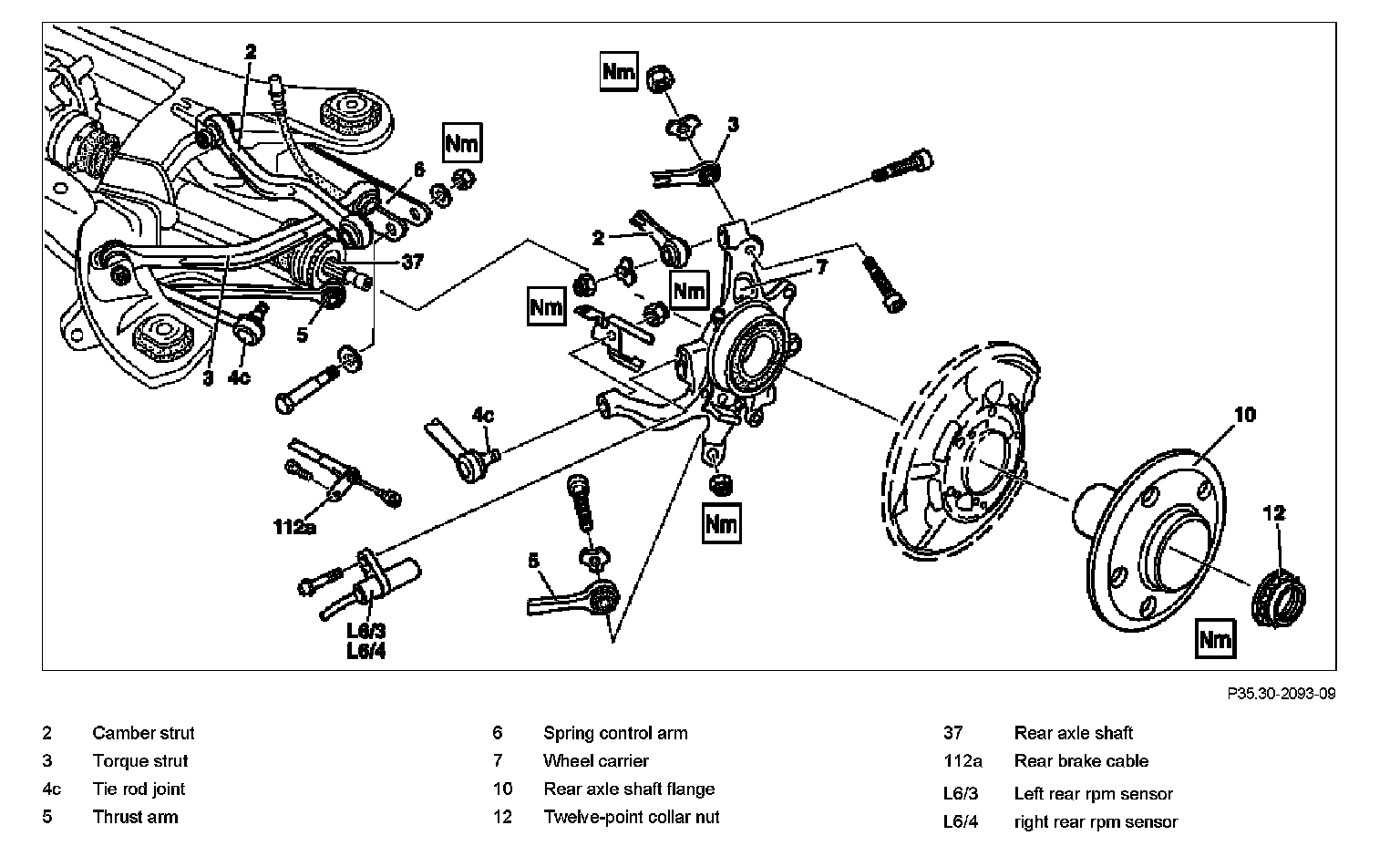

Component Identification:

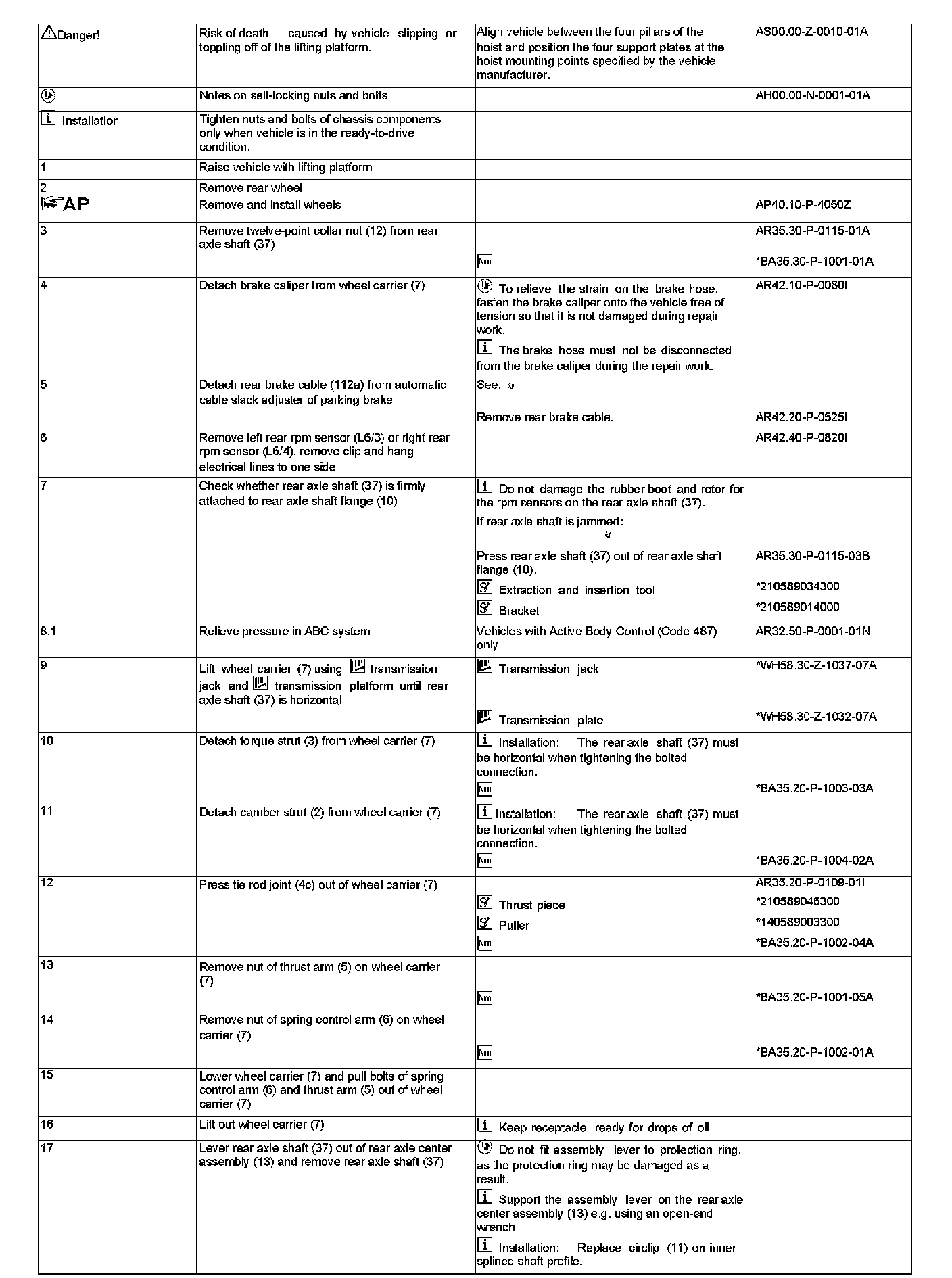

Steps 1 - 17:
Steps 18 - 22:
Tension Arm:
Camber Strut:
Tie Rod:
Torque Strut:
Spring Link:
Spring Link:
Spring Link:
Rear Axle Controls Assembly:

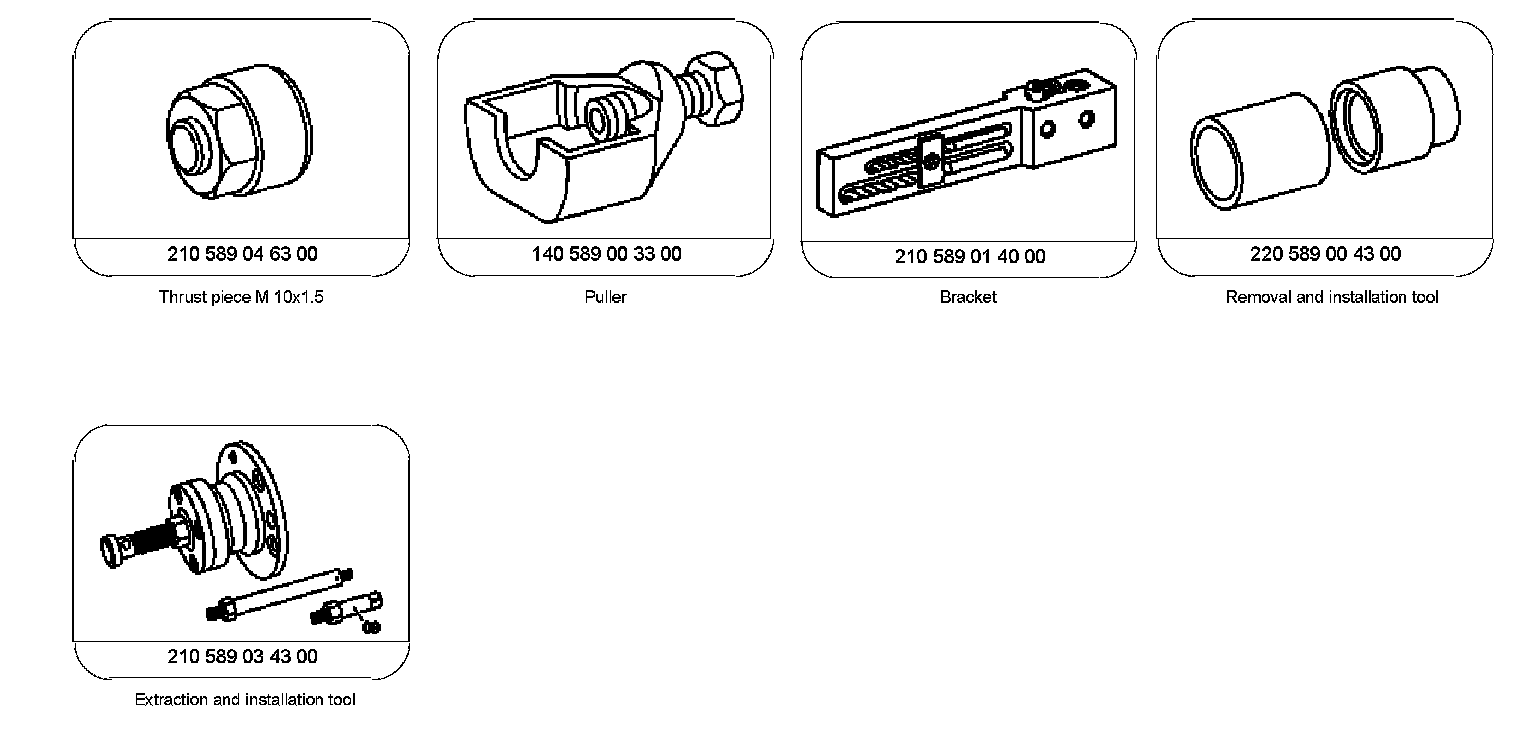

Special Tools:
Commercially Available Tools:
