AR40.10-P-1030MB Replace Tire



AR40.10-P-1030MB Replace tire
- With CODE (Z07) Top protection
- With Pax emergency running system wheel

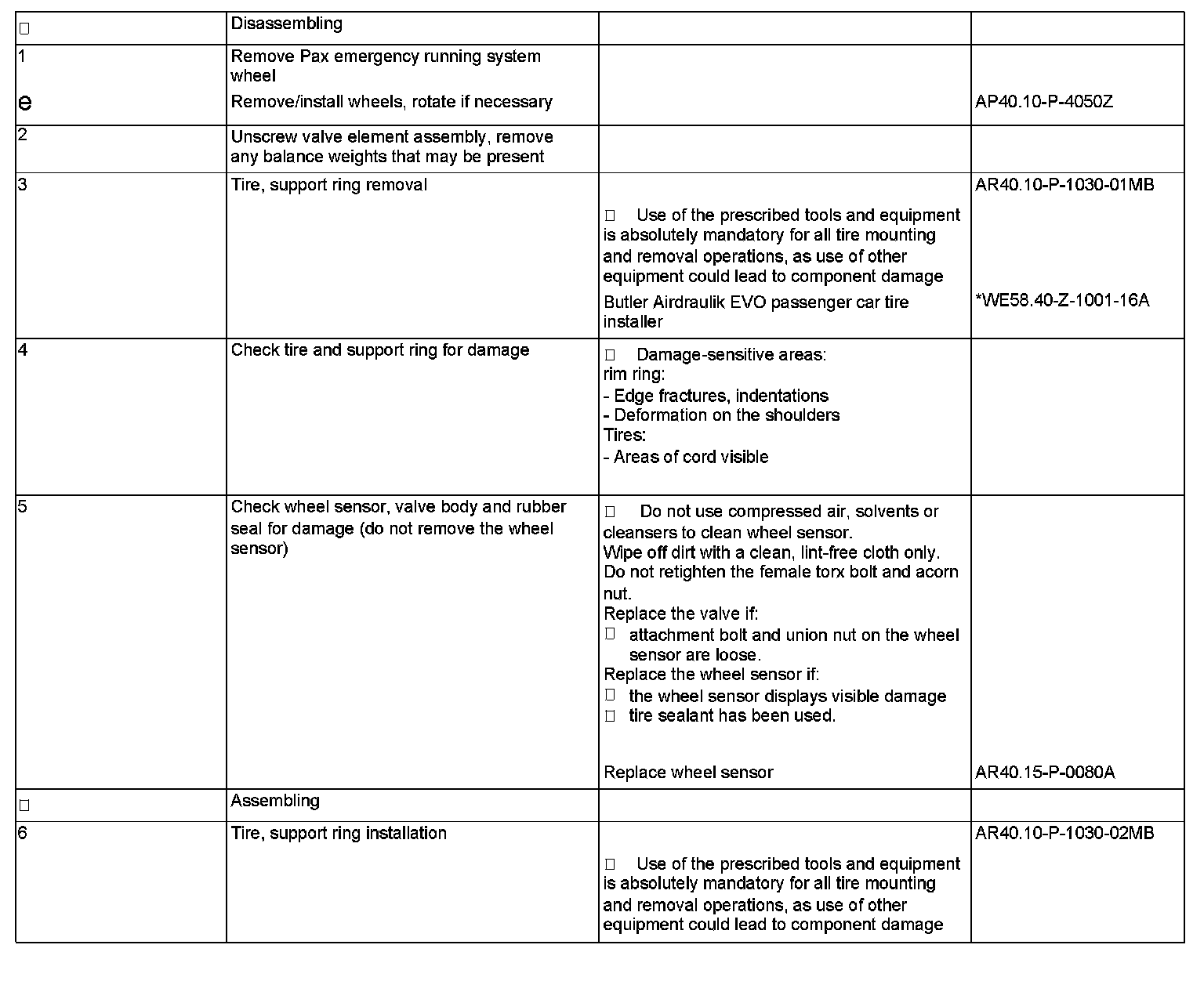

Steps 1-6:

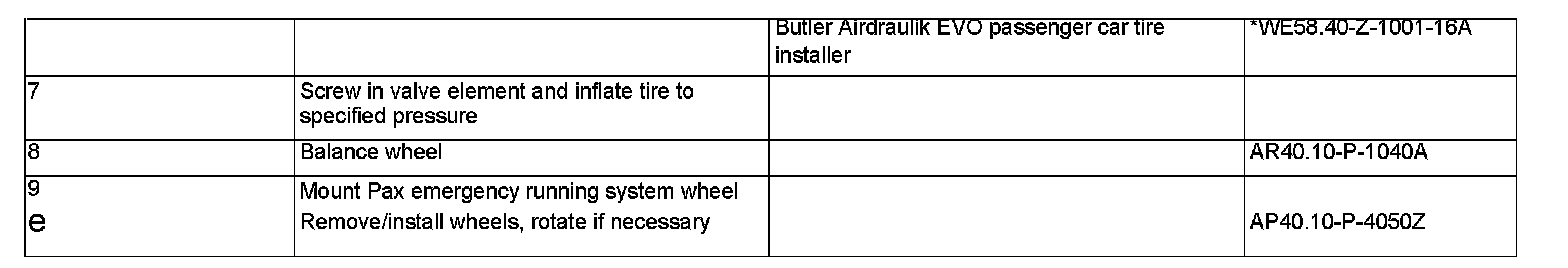

Steps 7-9:
