AR33.20-P-0440MB Replace Supporting Joint



AR33.20-P-0440MB Replace supporting joint
- with CODE (979) Special protection version
- with CODE (Z07) Top protection

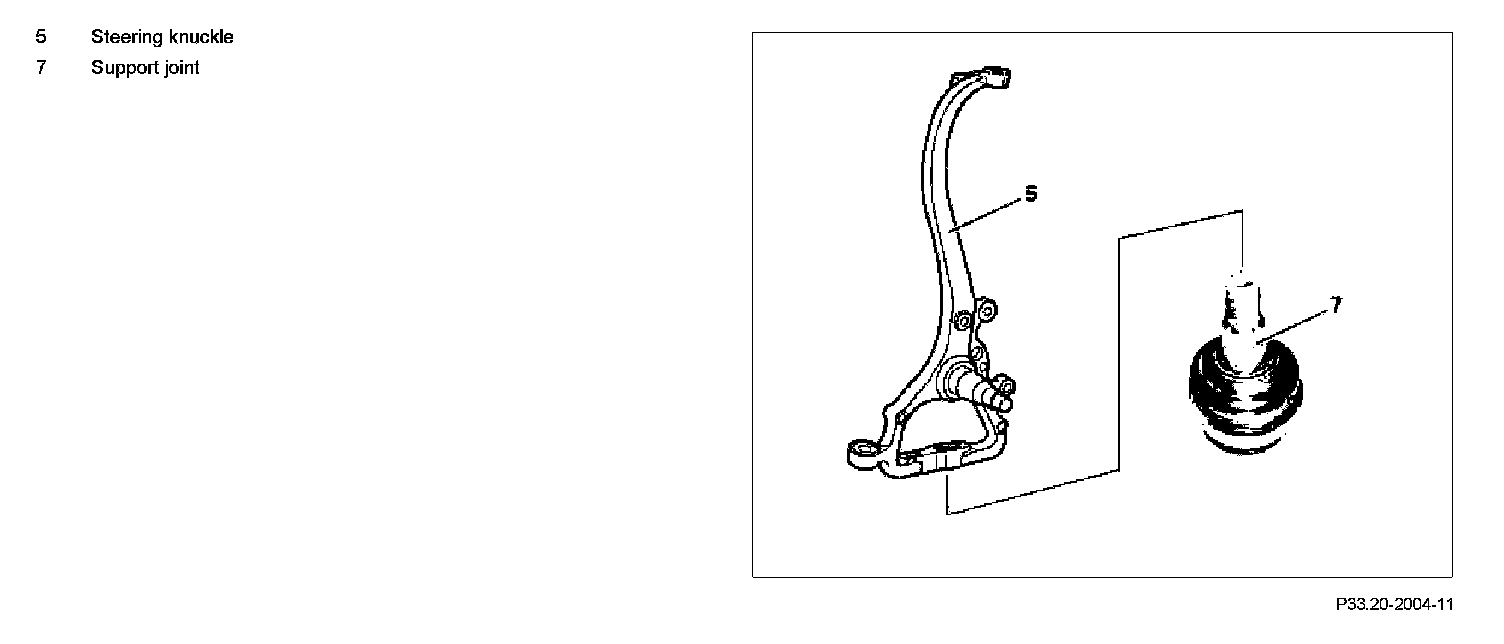

Component Identification:

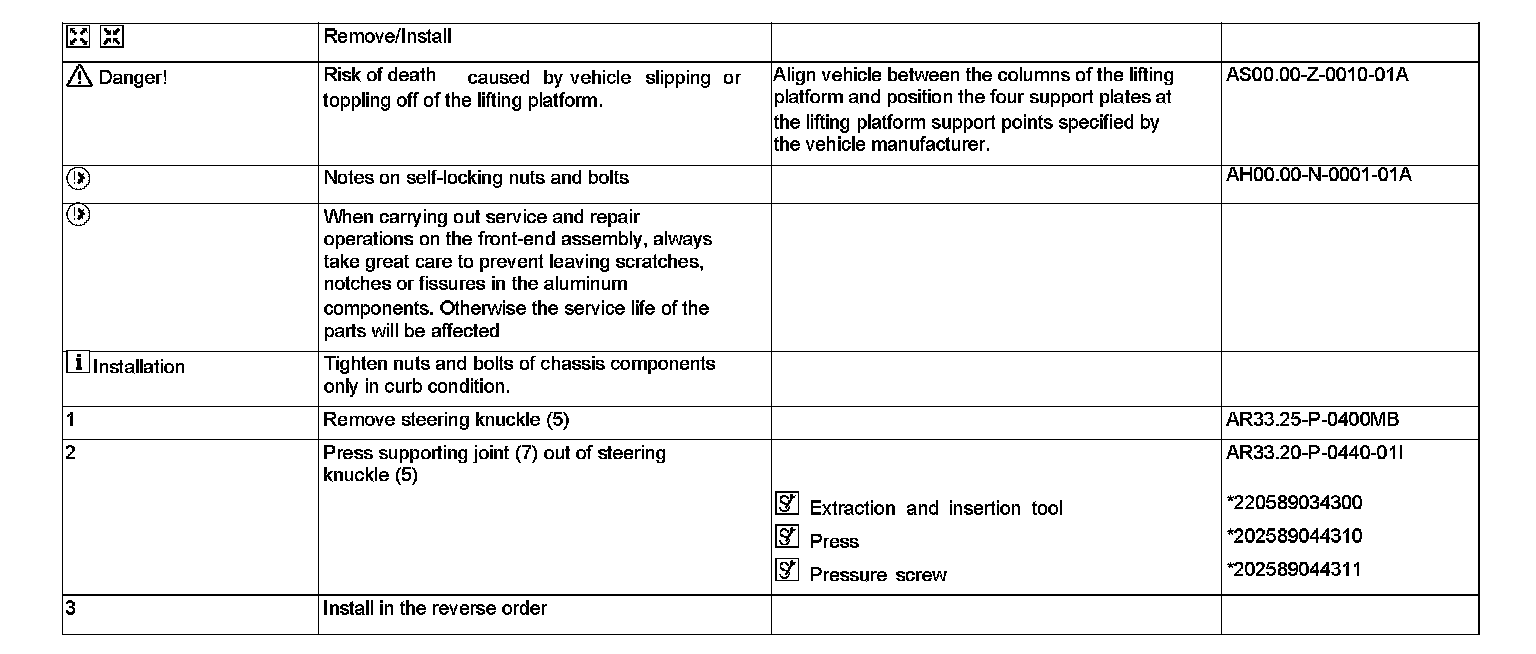

Steps 1 - 3:

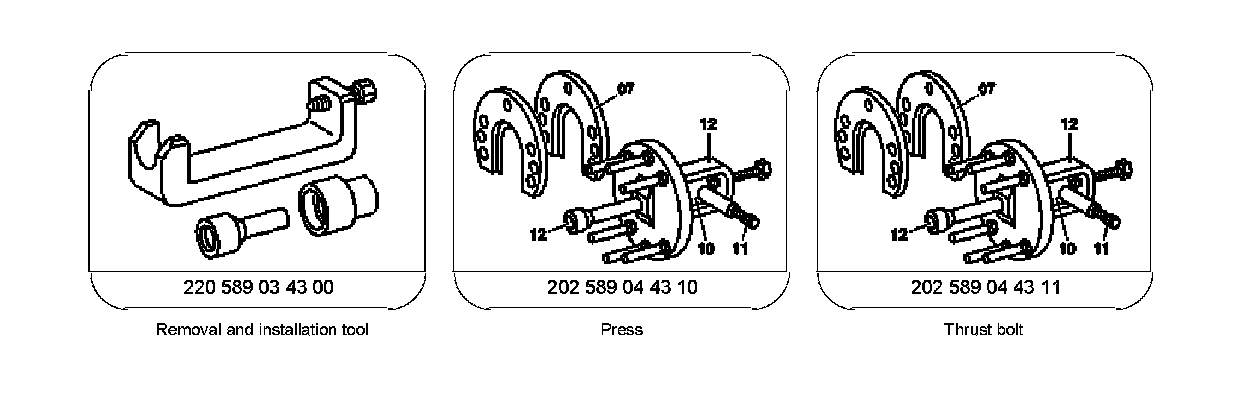

Special Tools:
