Home
>>
Mercedes Benz
>>
2002
>>
S 430 (220.170) V8-4.3L (113.941)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Seat Belt
>>
Service and Repair
>>

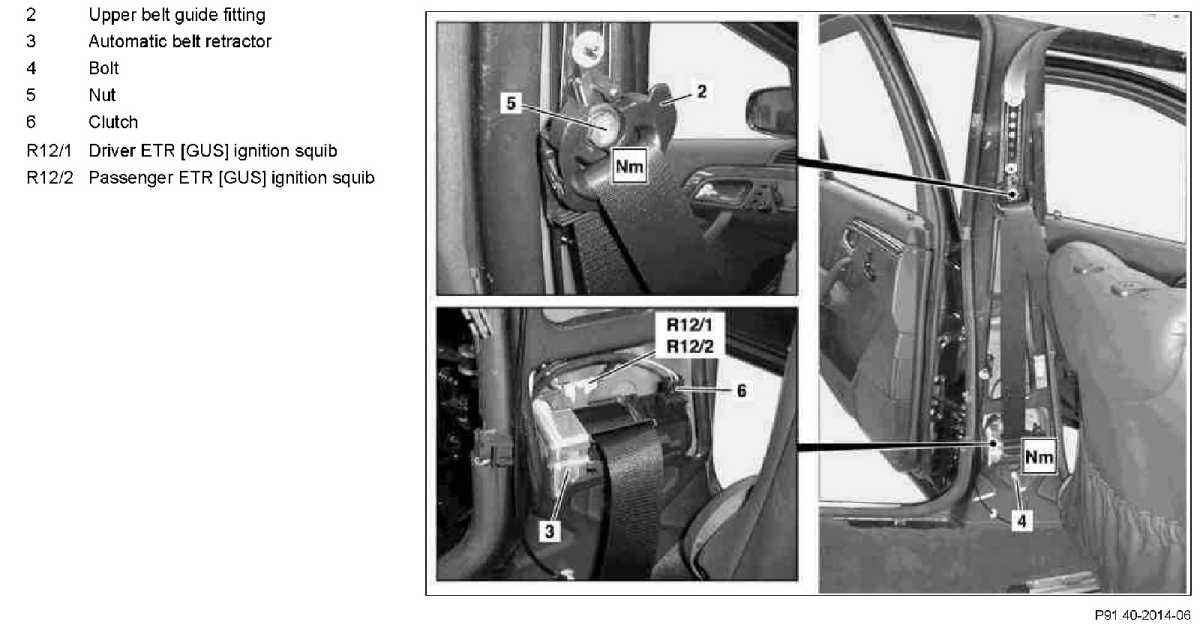

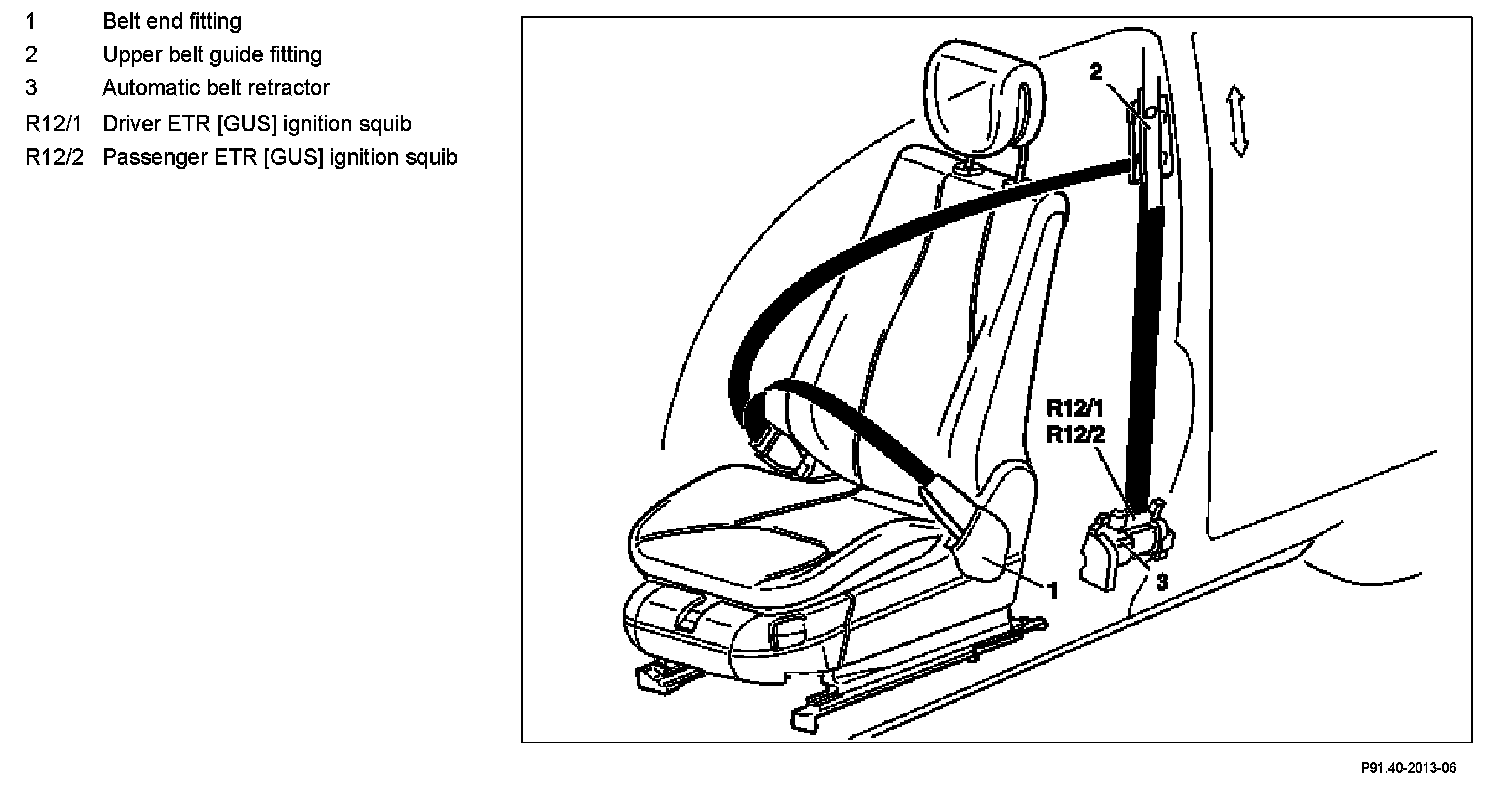

AR91.40-P-1010M Remove/Install Seat Belt (Front Seat)
AR91.40-P-1010M Remove/Install Seat Belt (Front Seat)
AR91.40-P-1010M Remove/Install
Seat Belt
(Front Seat)

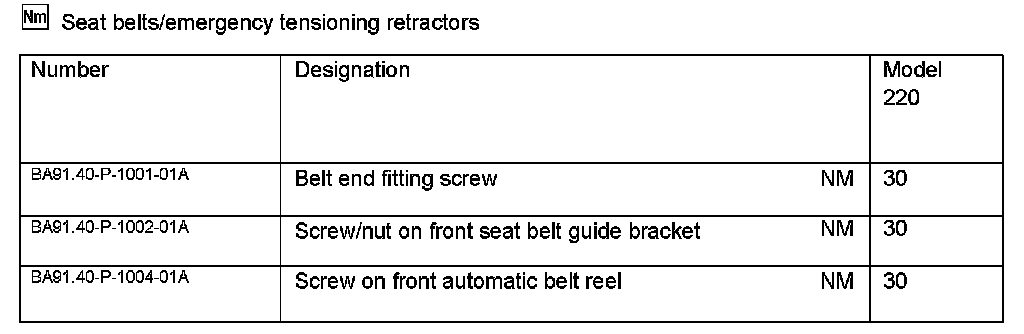

Seat Belts/Emergency Tensioning Retractors:
