AR91.40-P-0683M Remove/Install Rear Center Seat Belt



AR91.40-P-0683M Remove/Install Rear Center Seat Belt
- except CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory

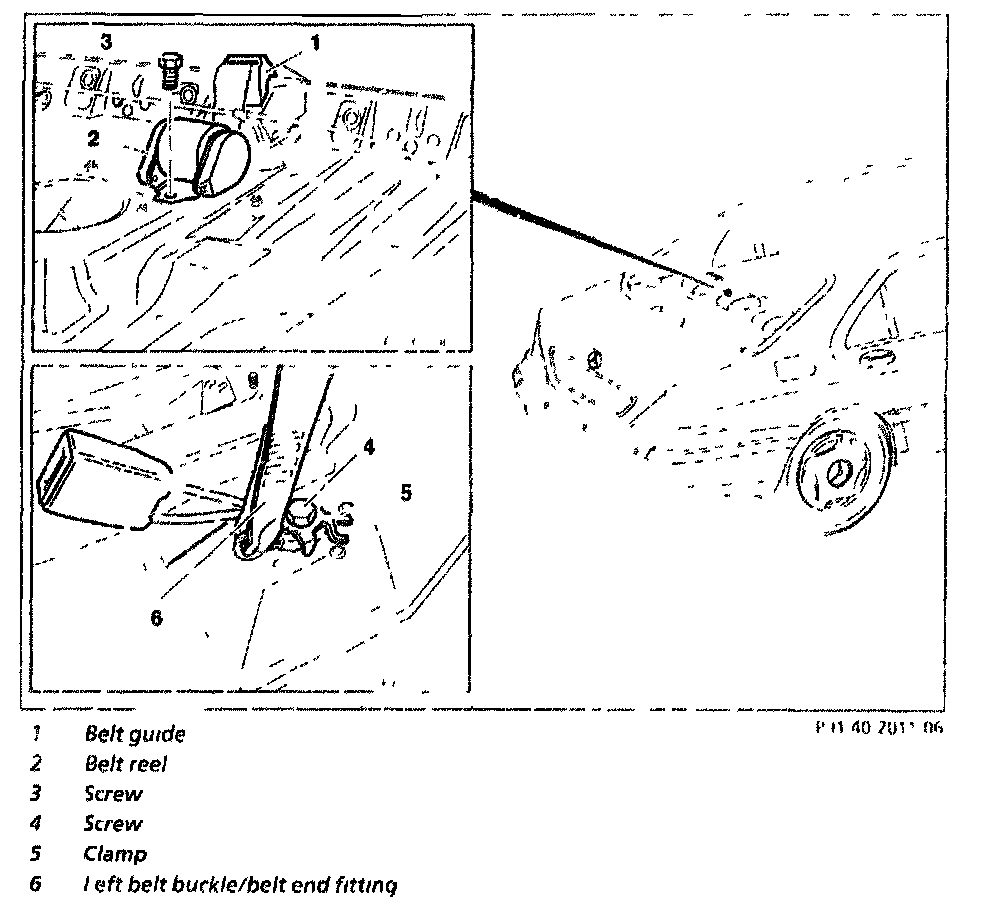

Component Identification:

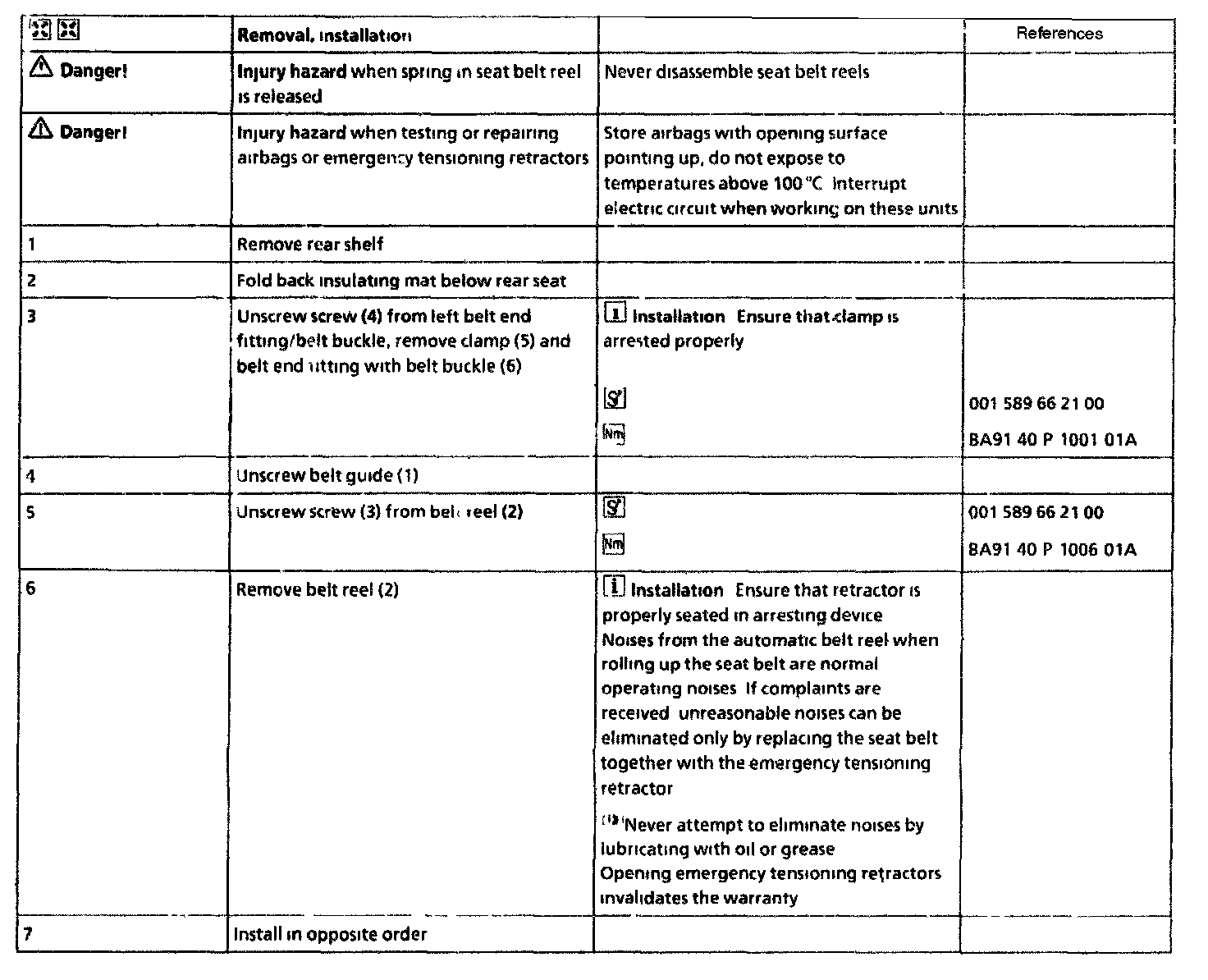

Removal/Installation, Steps 1 - 7:

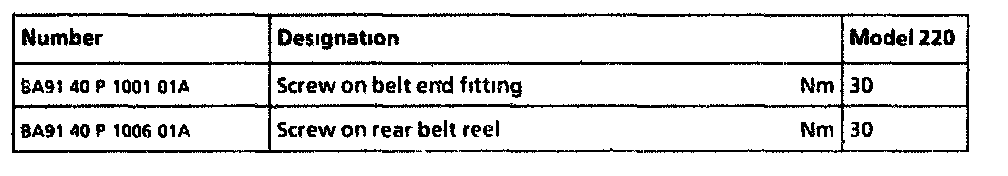

References (BA), Seat Belts/Emergency Tensioning Retractors:

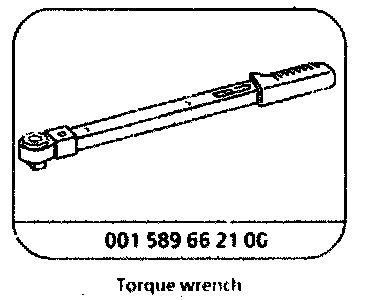

References, Special Tools:
