AR91.40-P-0681M Remove/Install Rear Seat Belts
AR91.40-P-0681M Remove/Install Rear Seat Belts
AR91.40-P-0681M Remove/Install Rear
Seat Belts

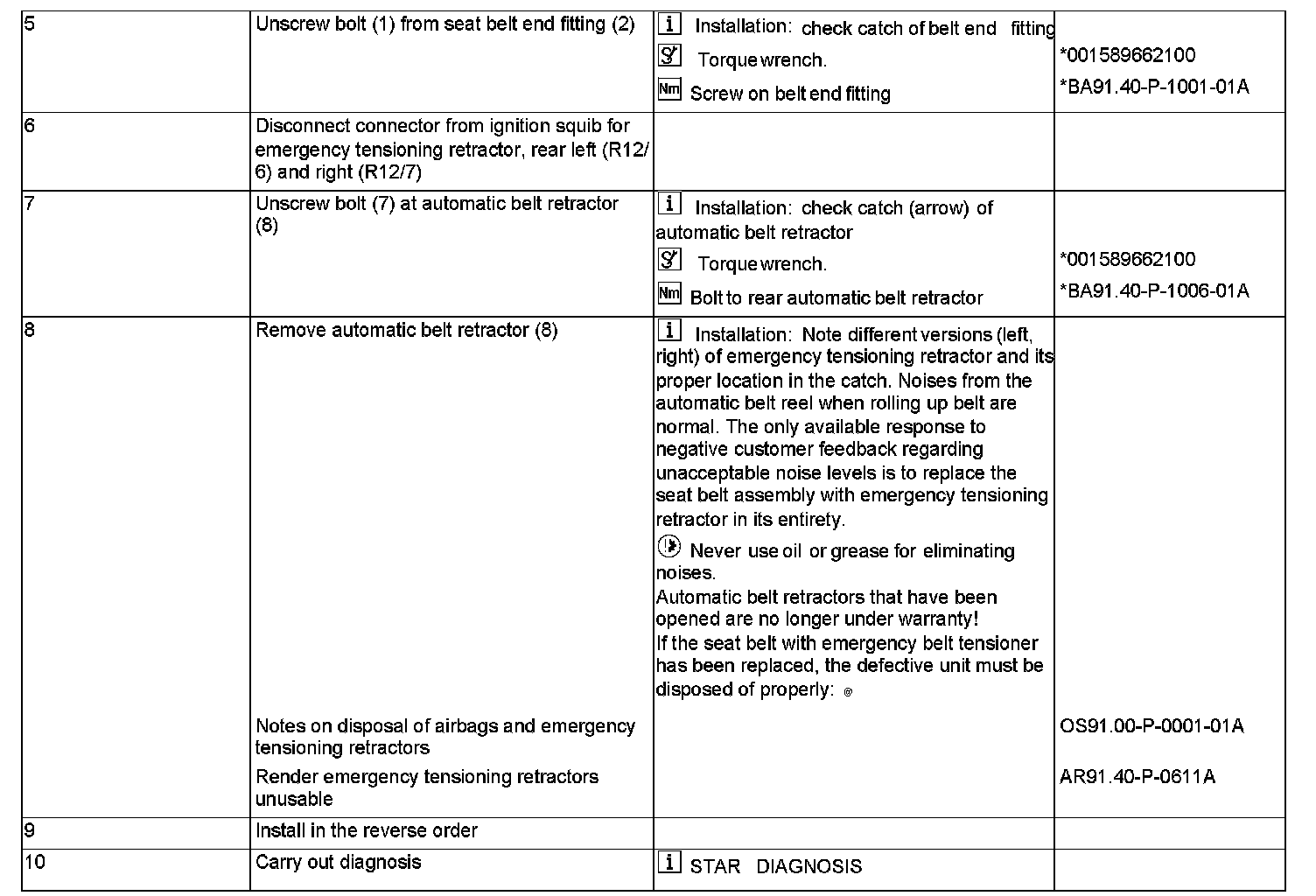

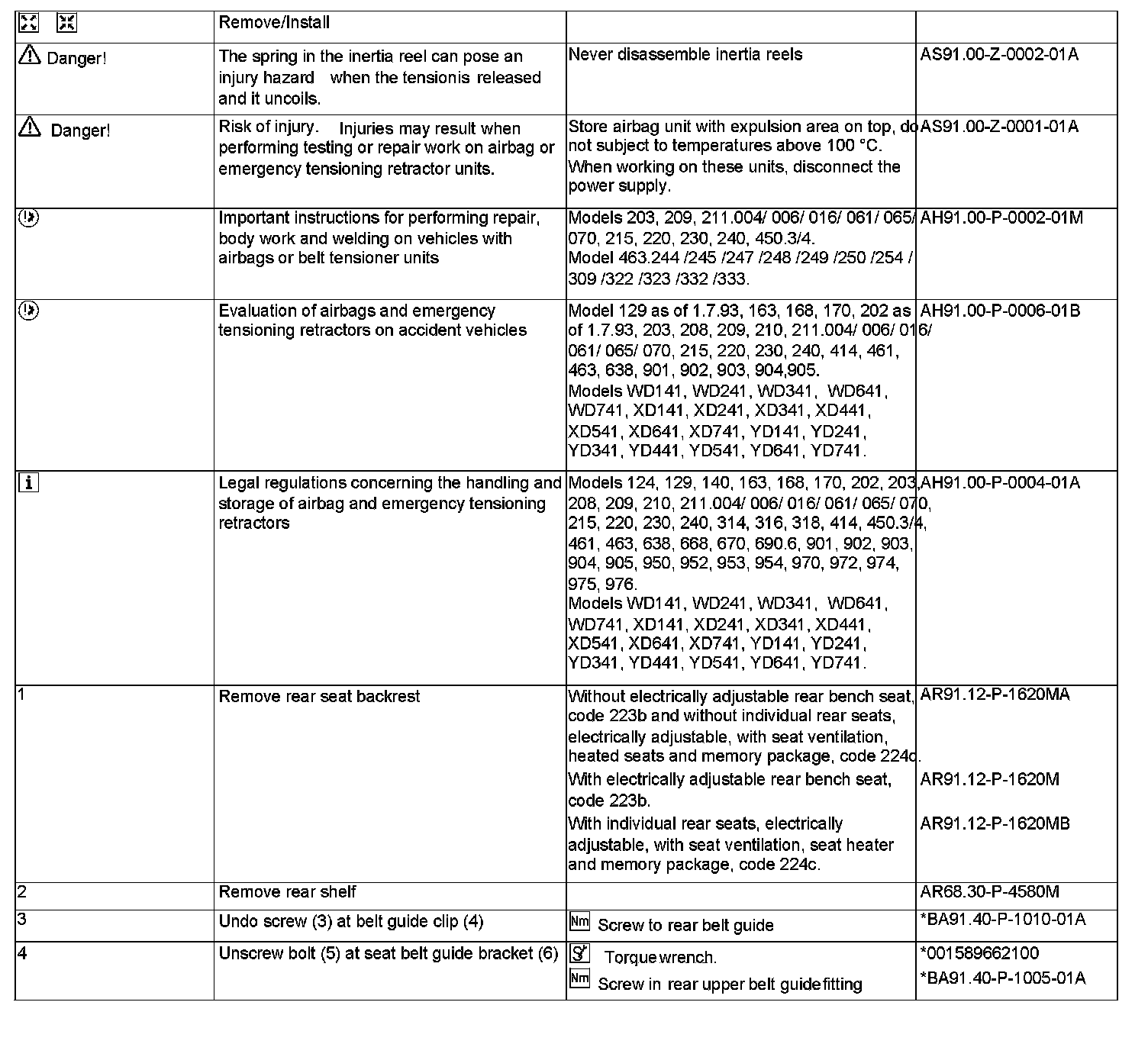

Part 1:
Part 2:

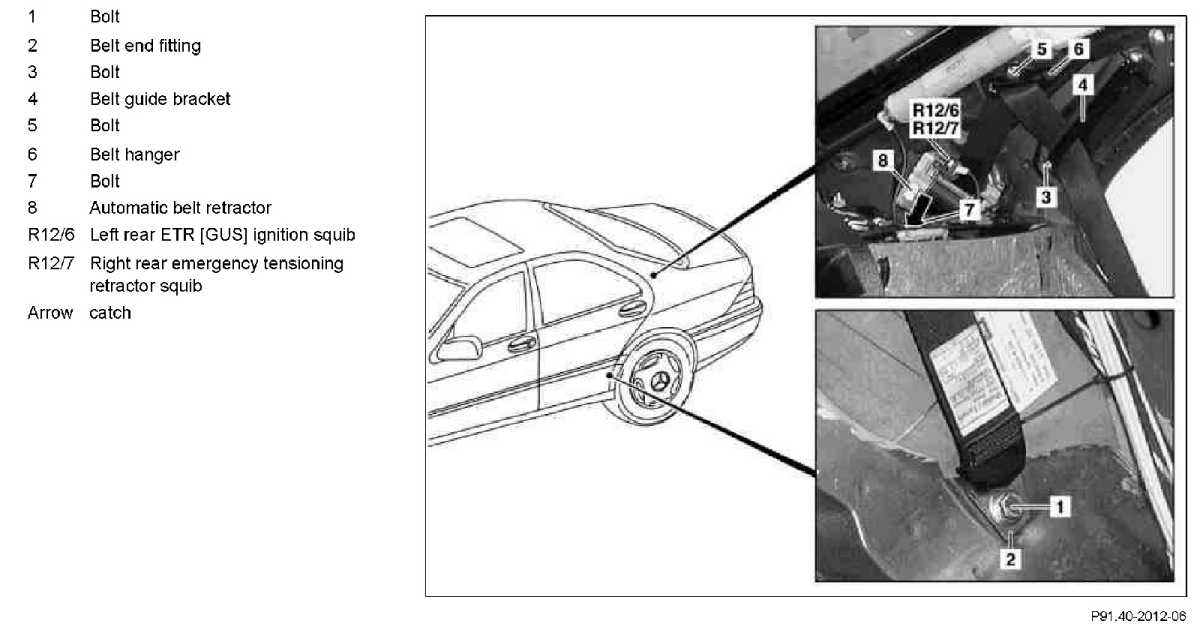

Seat Belts/Emergency Tensioning Retractors:
