Seat Belt Height Adjuster: Service and Repair



AR91.40-P-1100M Remove/Install Seat Belt Height Adjustment Mechanism


Component Identification:

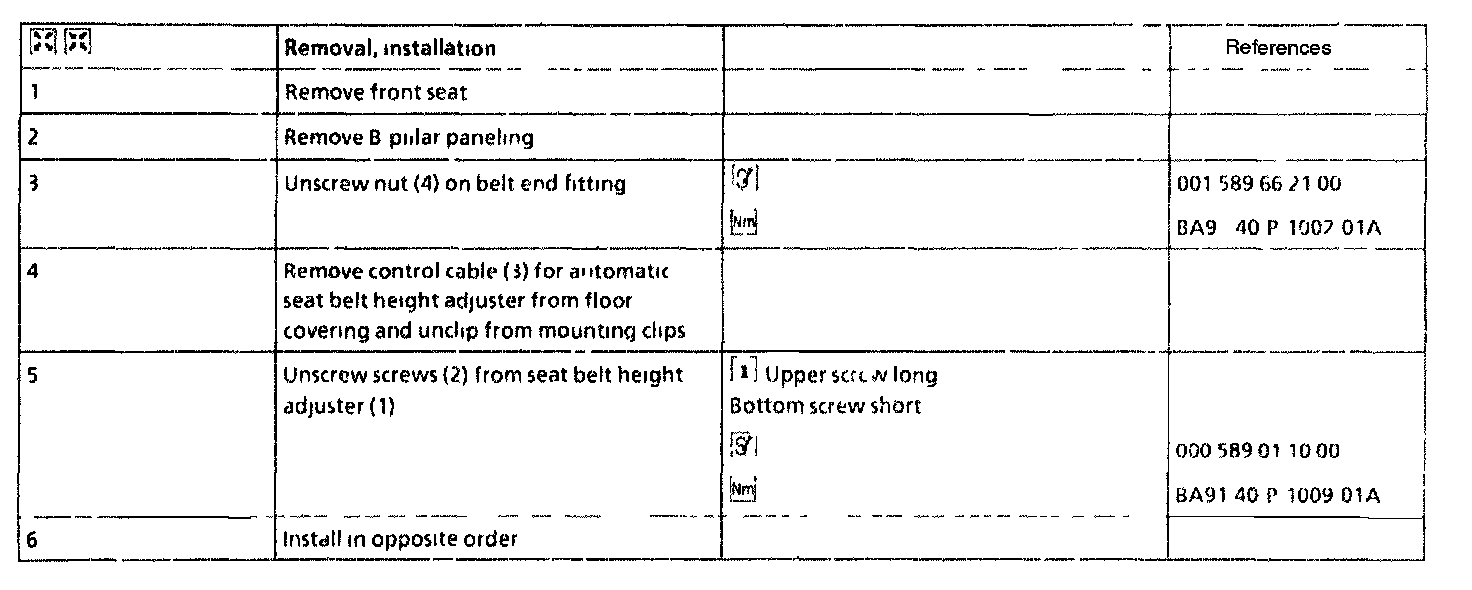

Removal/Installation, Steps 1 - 6:

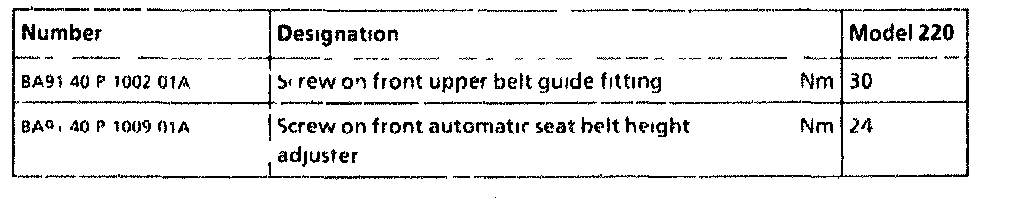

References (BA), Seat Belts/Emergency Tensioning Retractors:

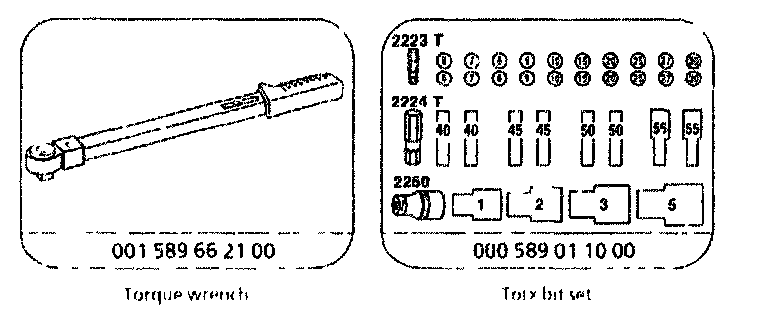

References, Special Tools:
