Evaporative Shut Valve: Service and Repair

Removing, Installing Shutoff Valve

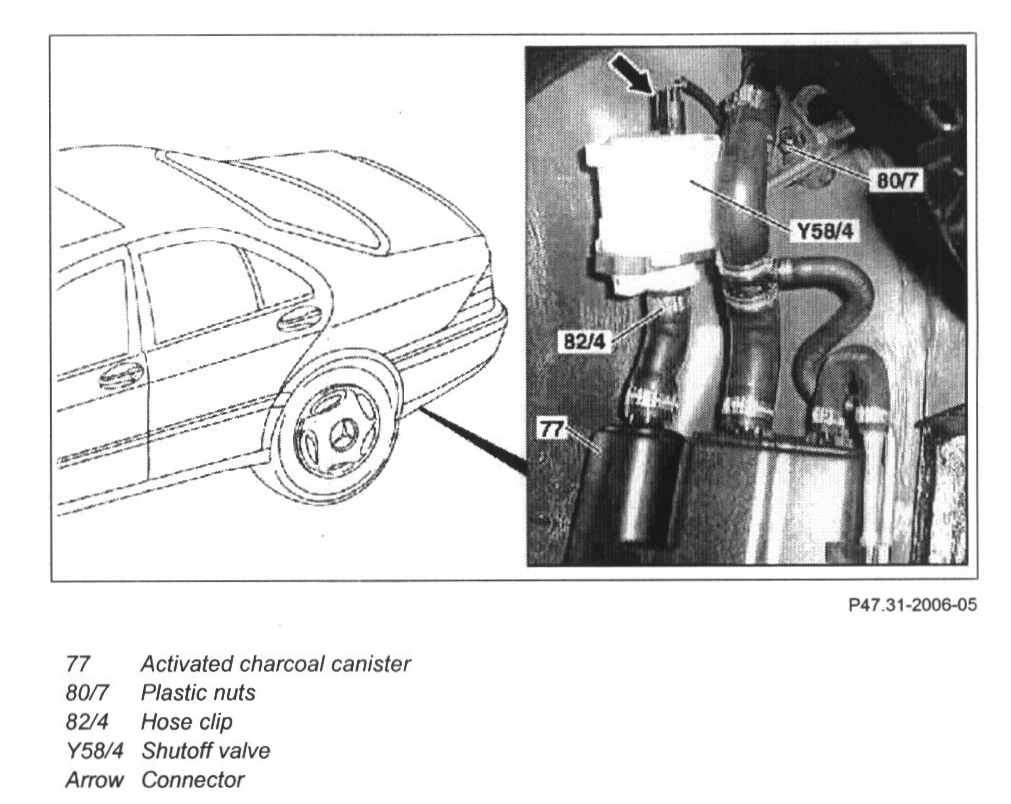

Shown On Model 220:

Work instructions

DANGER:
- Risk of explosion as a result of fuel vapors igniting. Risk of poisoning as a result of inhaling fuel vapors. Risk of injury as a result of fuel coming into contact with skin and eyes.
- No fire, naked flame or smoking.
- Pour fuels only into suitable and appropriate marked containers.
- Wear protective clothing when handling fuel.

- Remove rear left wheelhousing liner
- Detach connector
- Unscrew Plastic nuts (80/7)
- Replace hose clip (82/4)
- Take out shutoff valve (Y58/4)
