AR83.50-P-9080M Remove/Install Rear Evaporator Temperature Sensor

AR83.50-P-9080M Remove/Install Rear Evaporator Temperature Sensor
- with CODE (582) Rear air conditioning

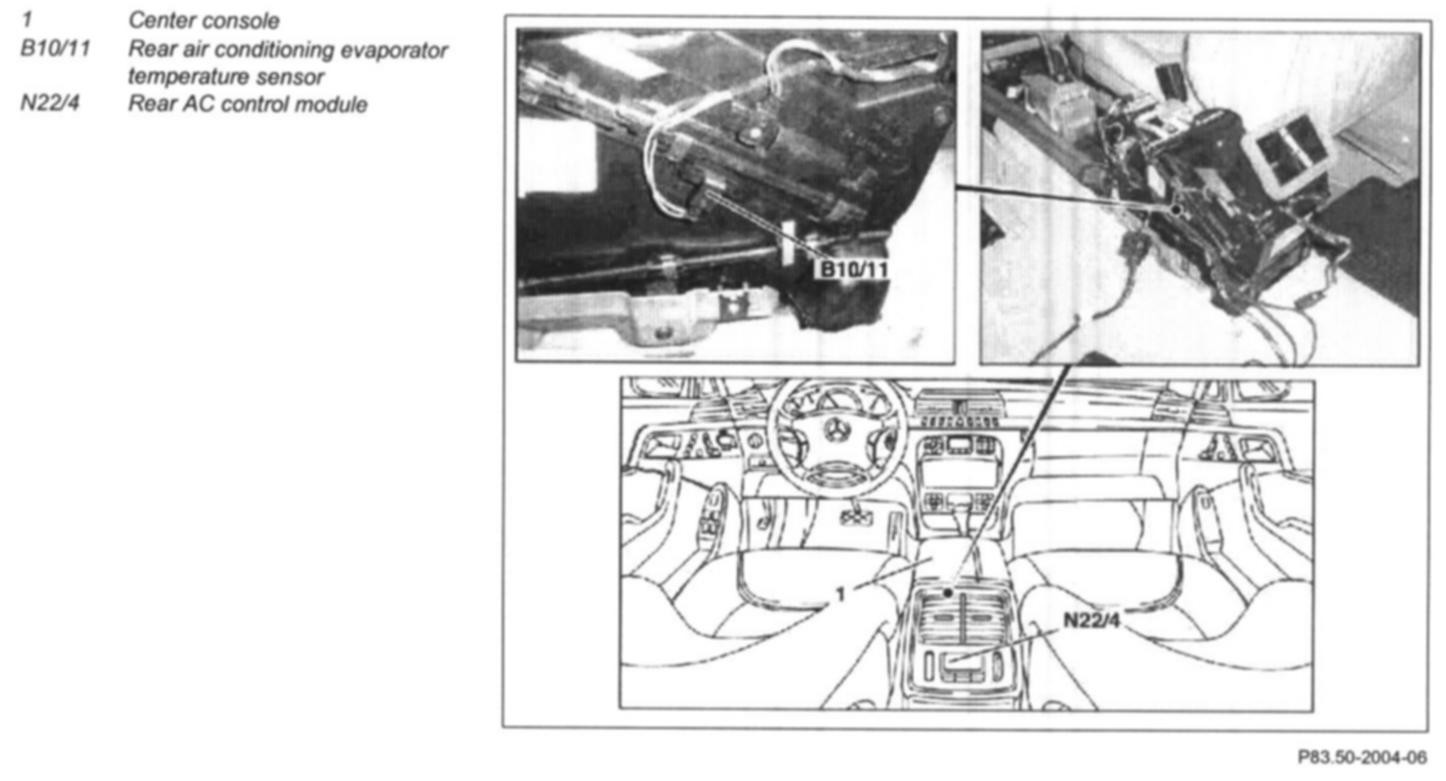

1 Remove rear AC control module (N22/4)
2 Remove center console (1)
3 Detach connector at rear air conditioning evaporator temperature sensor (B10/11)
4 Pull rear air conditioning evaporator temperature sensor (B10/11) out of the AC housing
5 Install in the reverse order.
6 Turn on air conditioning and allow engine to idle for about 4 minutes.

NOTE: Set left and right temperature of rear AC control and operating module to "LO" Switch blower over to the maximum setting

7 Check function of air conditioning.

NOTE: Air outlet temperature at the center nozzle shall not fall below + 5 degrees C, and if necessary, carry out diagnosis.
