AR83.50-P-9040M Remove/Install Rear Blower Motor

AR83.50-P-9040M Remove/Install Rear Blower Motor
- with CODE (582) Rear air conditioning












DANGER:
- Explosion hazard when performing welding or brazing work on closed air conditioning. Poisoning hazard from inhaling overheated refrigerant vapors. Injury hazard from skin and eye contact with liquid refrigerant.
- Do not perform any type of welding work on closed air conditioning system or in its vicinity. Smoking and open flame prohibited.
- Wear protective goggles and protective gloves, work only in well-ventilated rooms. Perform repair work on air conditioning circuit only with system emptied.

CAUTION: Protect air conditioning circuit and components from moisture during repair work.

1 Empty air conditioning (recycle), evacuate, charge, check for leaks

CAUTION: Add quantity of compressor oil removed to refrigerant circuit when charging air conditioning (new oil).

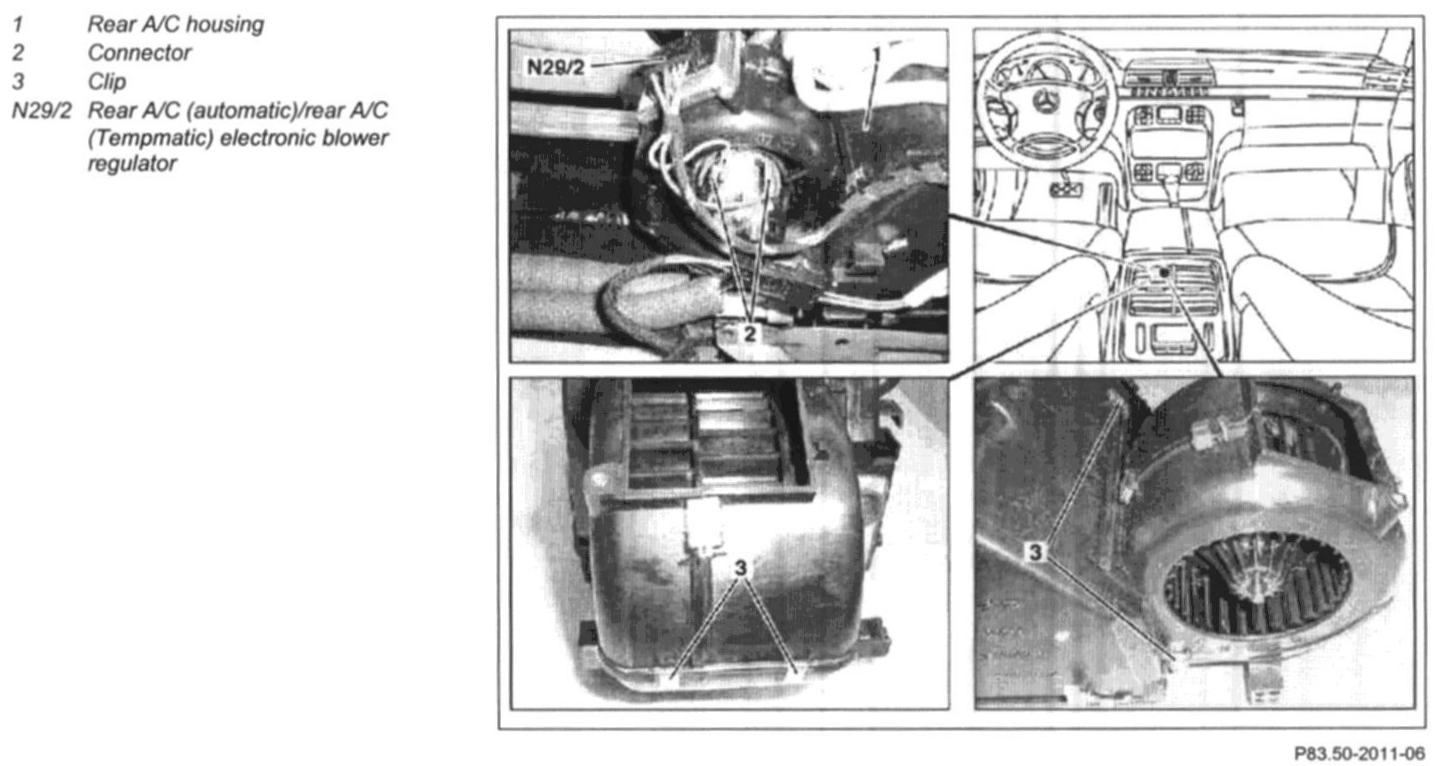

2 Remove rear A/C housing (1)
3 Remove rear blower regulator (N29/2)
4 Disconnect connectors (2) from rear blower motor

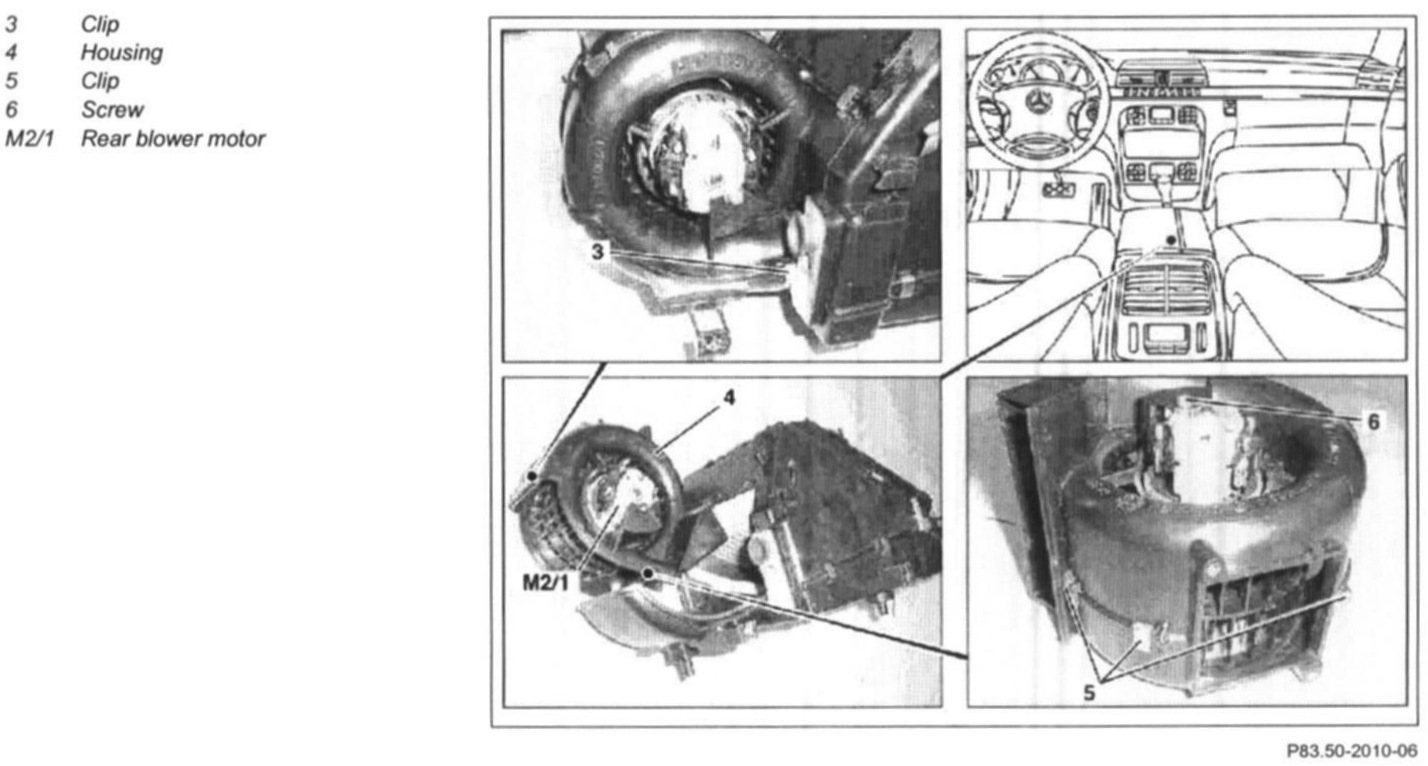

5 Unclip 5 clips (3)
6 Remove housing (4) with rear blower motor
7 Unclip 3 clips (5)
8 Disconnect housing (4)
9 Unscrew screw (6)
10 Remove rear blower motor (M2/1)

CAUTION: Do not set rear blower motor down on impeller.

11 Install in opposite order.
