Front

The blower regulator regulates the power supply for the blower depending on the speed set.

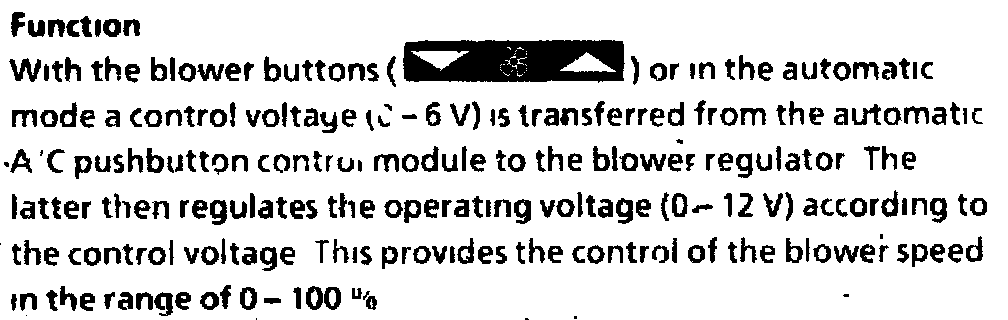

Function:

Blower switch pos. Blower control Blower control
(reading on display) voltage (manual) voltage (auto)

1 segment min 1.60V 0 - 1.70V
2 segment 1.80V 1.70 - 1.90V
3 segment 2.00V 1.90 - 2.15V
4 segment 2.30V 2.15 - 2.60V
5 segment 2.85V 2.60 - 3.10V
6 segment 3.60V 3.10 - 4.55V
7 segment max 6.00V 4.55 - 6.00V
