Home >> Mercedes Benz >> 2002 >> S 430 (220.170) V8-4.3L (113.941) >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Register >> Service and Repair >> AR68.10-P-1150M Remove/Install Center Air Vent

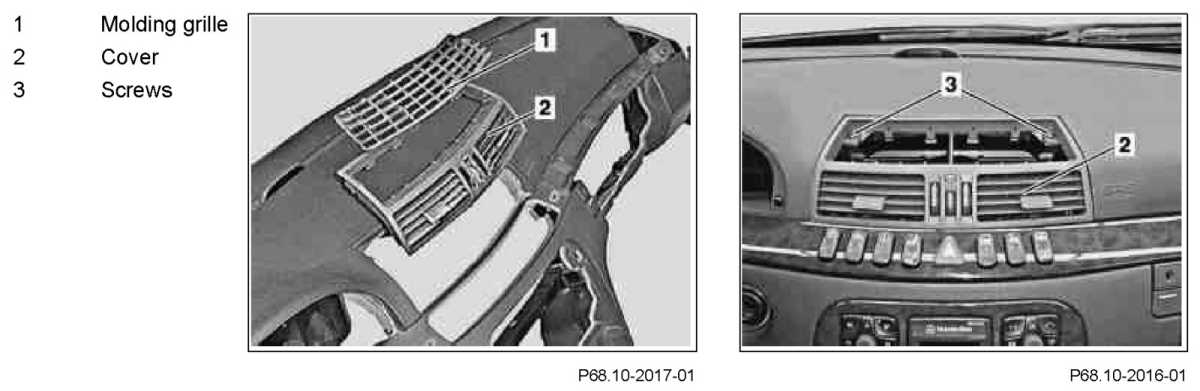

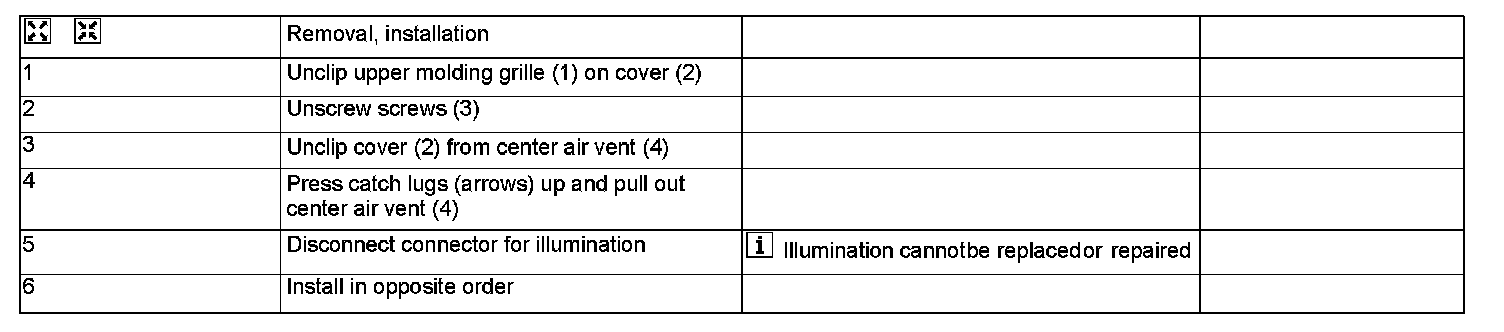

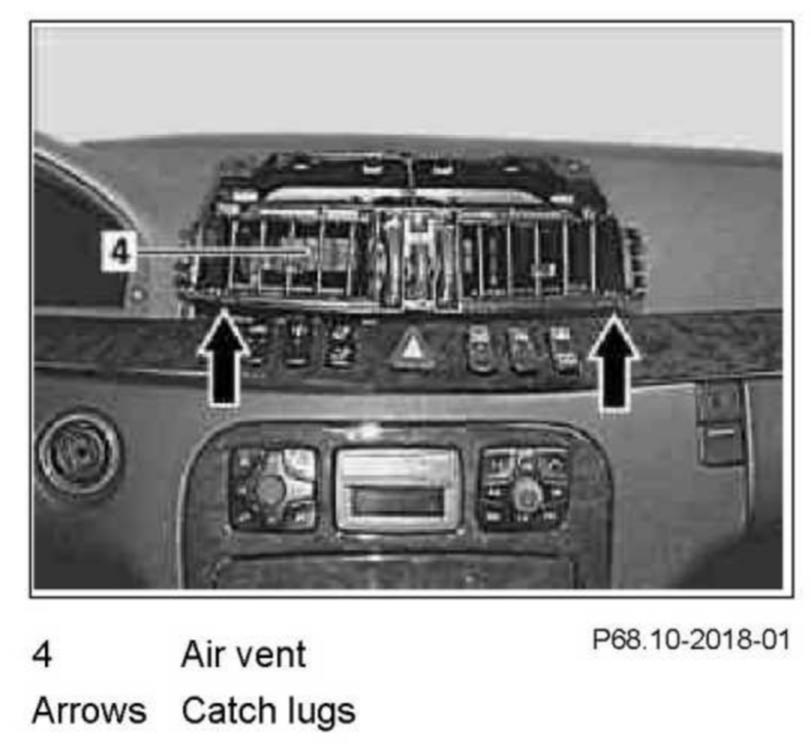

AR68.10-P-1150M Remove/Install Center Air Vent



AR68.10-P-1150M Remove/Install Center Air Vent
