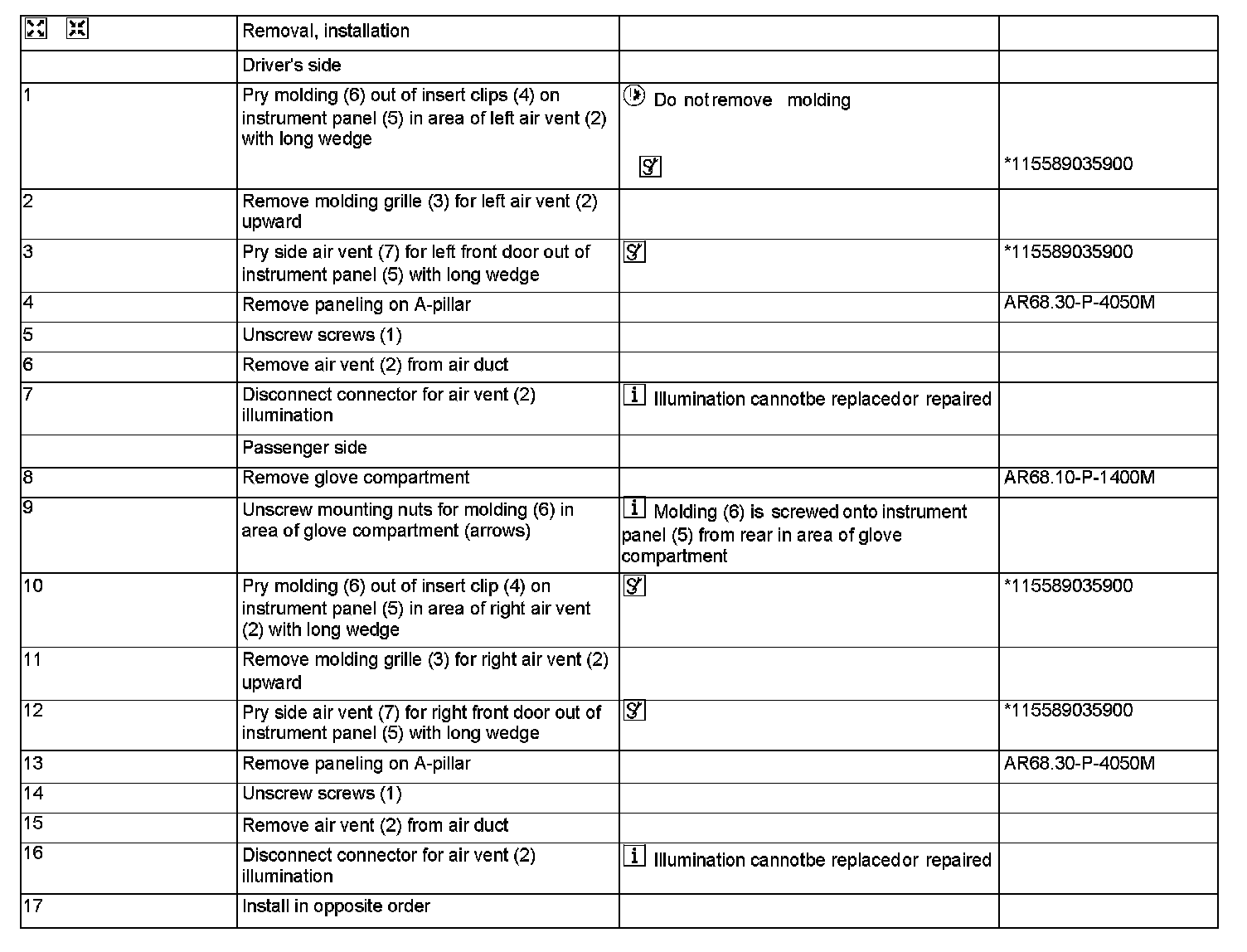

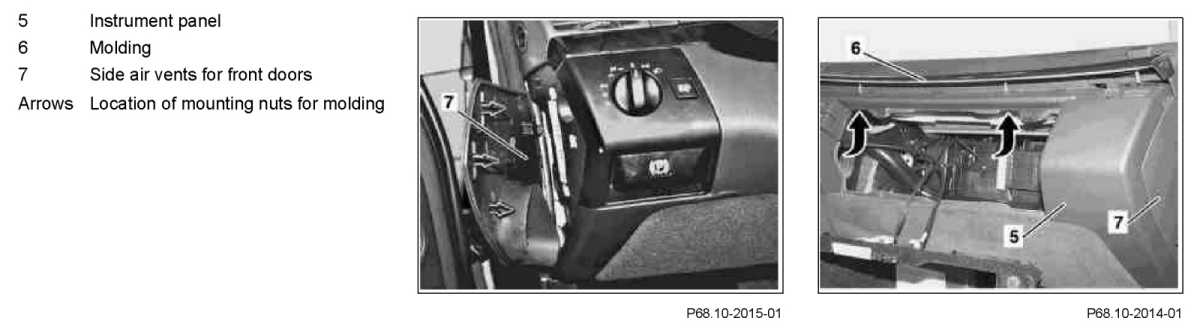

AR68.10-P-1100M Remove/Install Side Air Vent
AR68.10-P-1100M Remove/Install Side Air Vent
AR68.10-P-1100M Remove/Install Side Air Vent
