S 430 (220.170) V8-4.3L (113.941)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Air Register
>>
Locations
>>
Instrument Panel Nozzles
>>
Center Nozzle
Center Nozzle

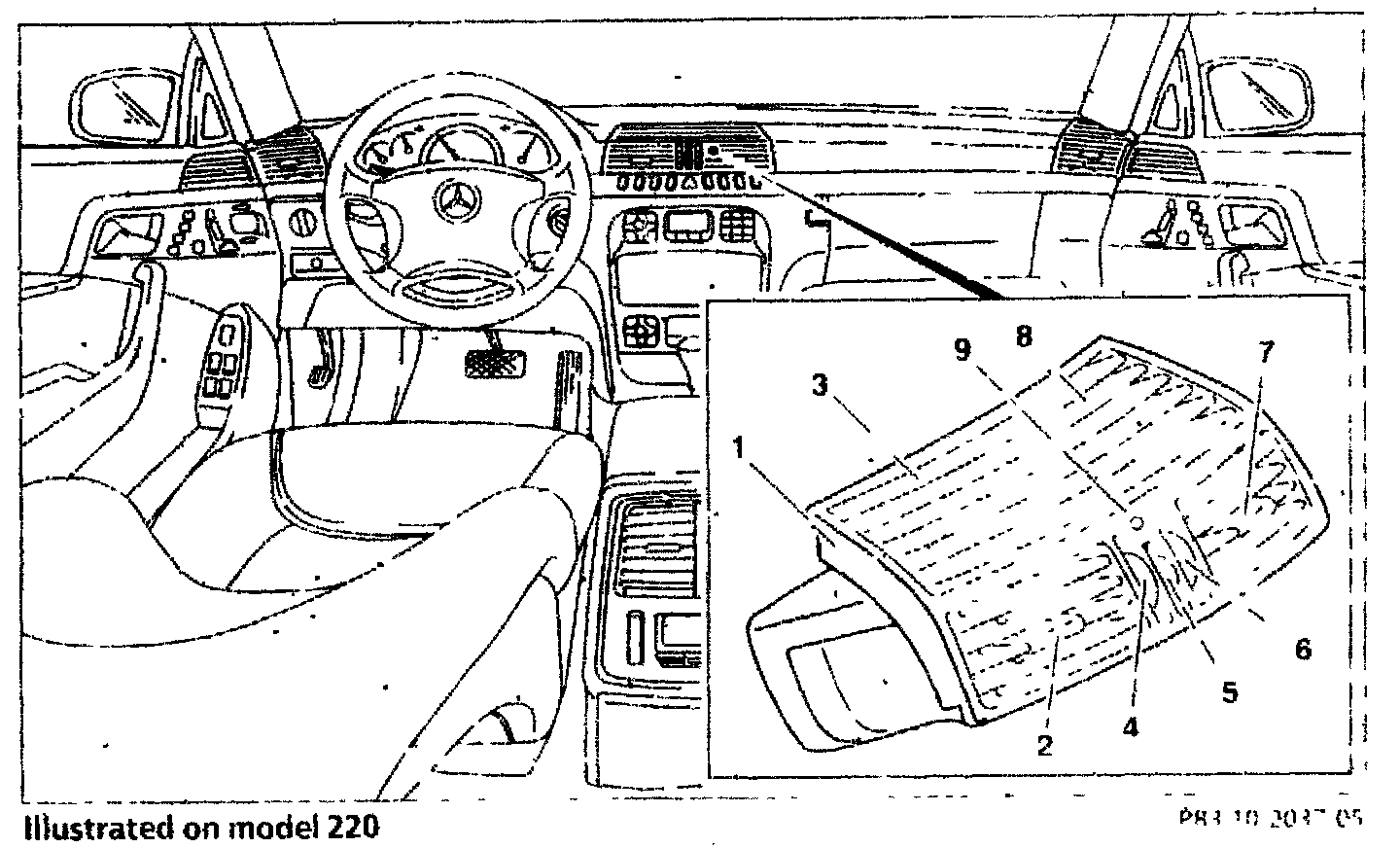

Illustrated On Model 220:
The center nozzle (1) is located in the instrument panel above the center console.
